Trulife Matrix Max Foot Support

Trulife Matrix Max Foot Support

Brand/Manufacturer: TRULIFE
Authorized Retailer Badge
  • FSA Approved

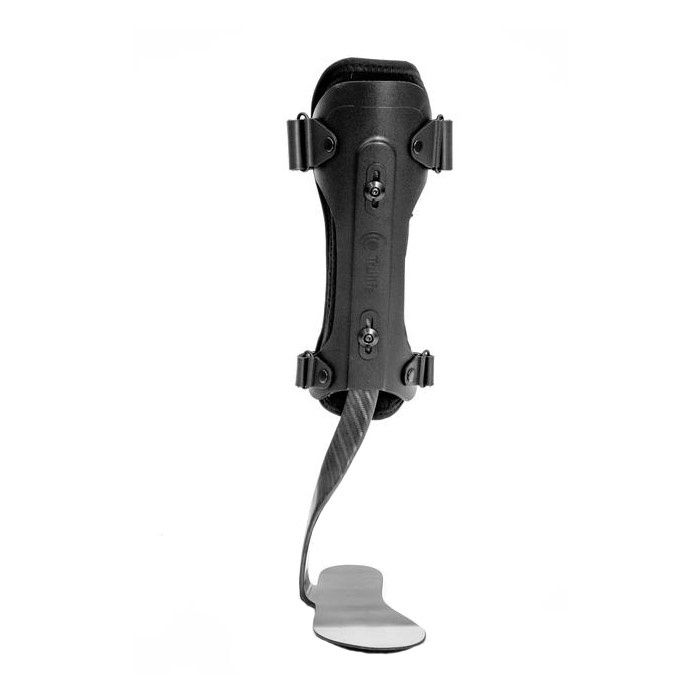

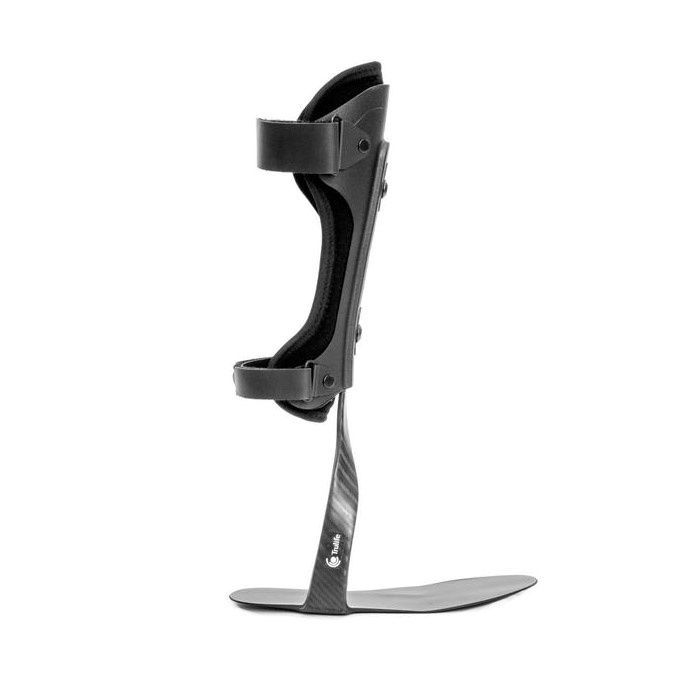

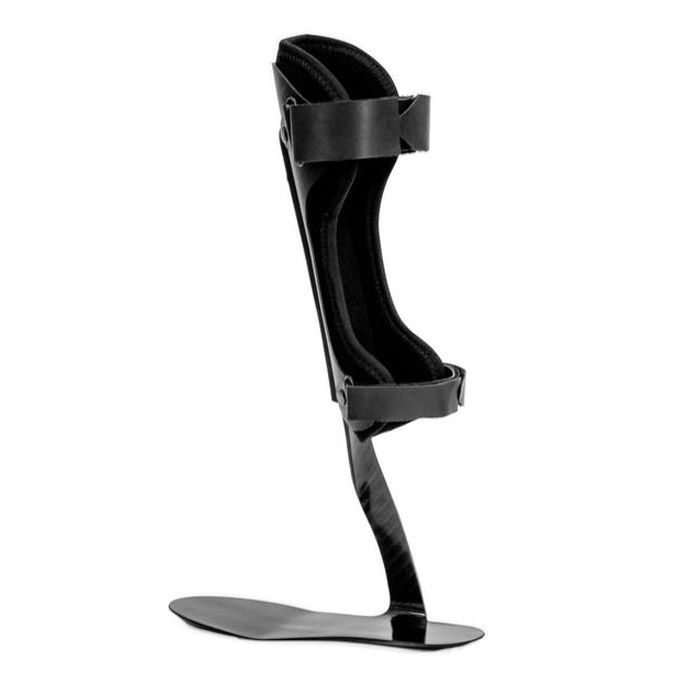

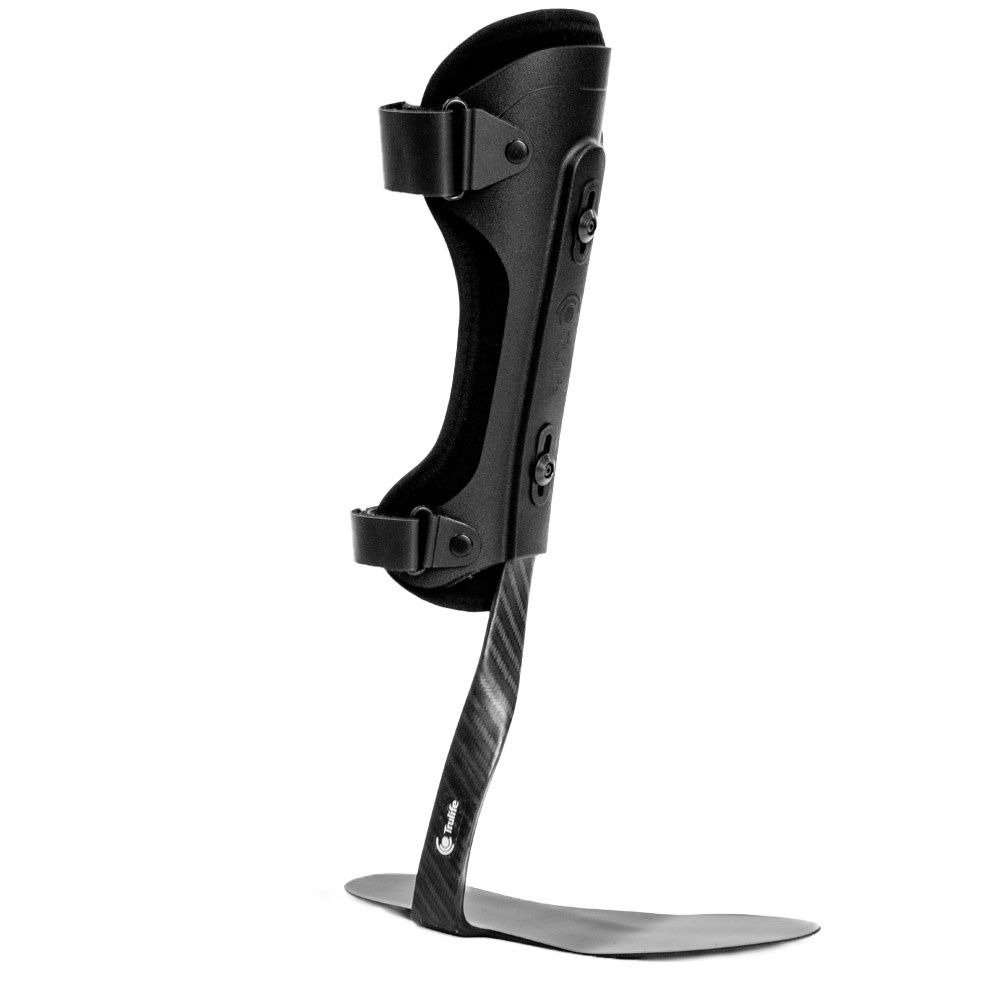

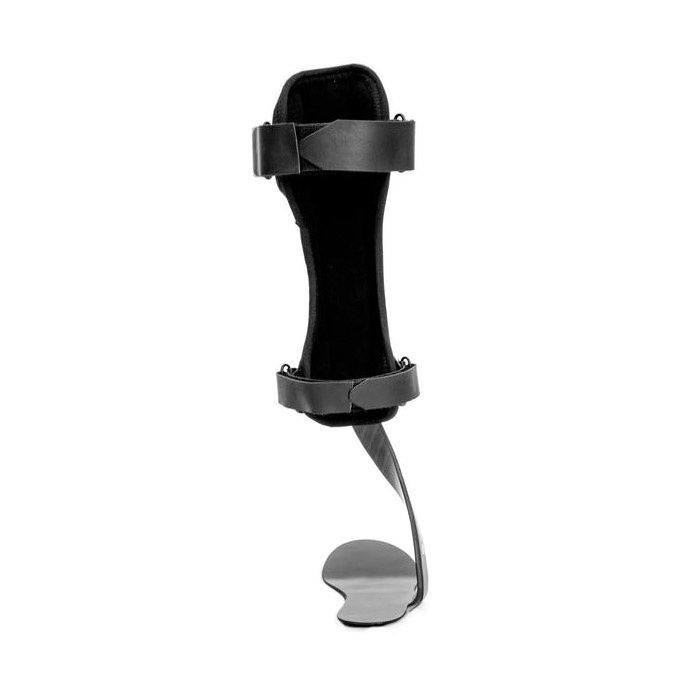

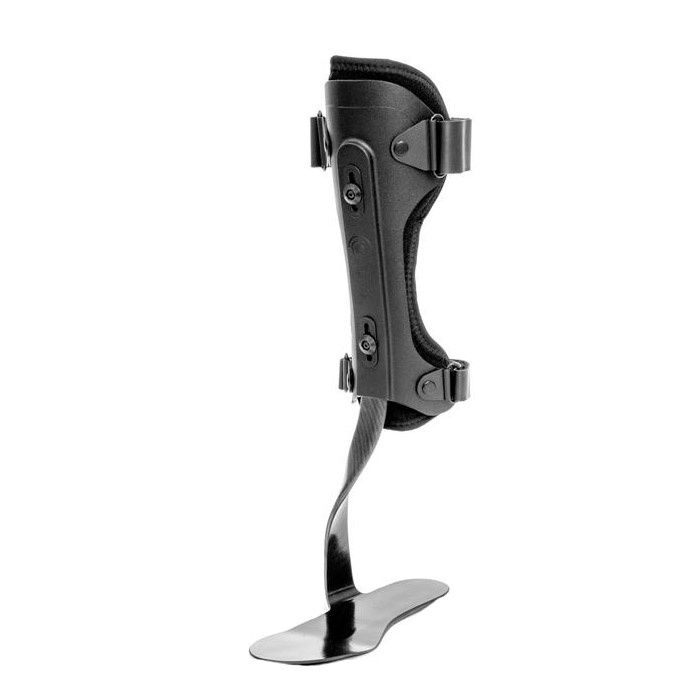

Trulife Matrix Max Foot Support has a reinforced lateral strut that is anterior to the malleolus for added stability. It has an anterior shell and footplate that are custom-fit, as well as an open calcaneal design. It is a lightweight and carbon composite frame.

Item # Desc Pkg Price
FH250L-02 Small, Left Each
FH250L-03 Medium, Left Each
FH250L-04 Large, Left Each
FH250L-05 X-Large, Left Each
FH250R-02 Small, Right Each
FH250R-03 Medium, Right Each
FH250R-04 Large, Right Each
FH250R-05 X-Large, Right Each

Trulife Matrix Foot Support Features

  • Trulife Matrix Max Foot Support includes
    - Hex Key
    - Tibial Pad (2)
  • Made with a Lightweight, carbon composite frame with enhanced stability
  • Indications
    - Low to high activity patients with unilateral or bilateral drop foot; suitable for partial foot amputations
  • Trulife Matrix Max Foot Support User Manual

What to buy with Trulife Foot Support

How to use Trulife Matrix Max?

  • Remove inlay and place Matrix in shoe
  • Place inlay over the top of the Matrix footplate. The inlay can be custom, off the shelf, or supplied with the user’s footwear
  • Insert foot into shoe with laces loosened. Fasten straps
  • Check fit
    • Perform trial walking. Ensure the knee is not hyper-extended.
    • Check footwear is not distorted
    • Ensure the patient is comfortable and there are no areas of pressure which may lead to sores or ulceration
  • Make adjustments if needed -
    • Footplate: The trimmable footplate (Max 2 and Medial T only) can be trimmed to fit a range of shoe sizes. The other products in the Matrix family can be adjusted by grinding to fit in patient’s shoe. Appropriate extraction and personal protective equipment must be used.
    • Anterior shell (except Medial): Adjust height (using the hex wrench provided) so that it covers the tibial tubercle but does not impinge on the patella at full extension. The shell can be heat molded for optimal patient comfort. (Note: heat should not be applied to the carbon composite parts of the product.)
    • Straps: The straps can be trimmed to the required length.
    • Inlay: The inlay can be bonded to the Matrix footplate to secure its position if required.

Trulife Max Foot Support Specification

Size Height Foot Length
Small 39 cm to 42 cm / 15.5" to 16.5" <25 cm / <9.8"
Medium 41 cm to 43 cm / 16" to 17" 24 cm to 27 cm / 9.4" to 10.6"
Large 43 cm to 46 cm / 17" to 18" 25 cm to 29 cm / 9.8" to 11.4"
X-Large 43 cm to 46 cm / 17" to 18" 26 cm to 31 cm / 10.2" to 12.2"


Hardware: 1 year
Soft Goods: 90 days
