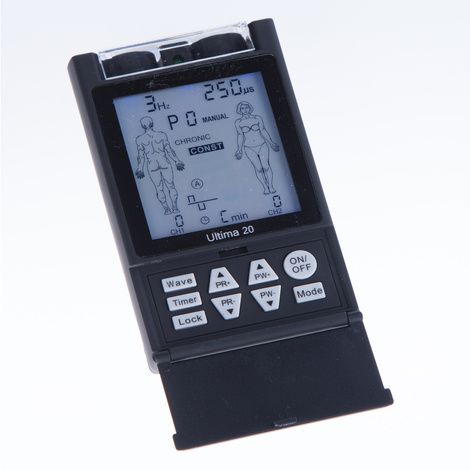

Ultima 20 Nerve Stimulator TENS Unit

Ultima 20 Nerve Stimulator TENS Unit Features

• Ultima 20 Nerve Stimulator TENS Unit Includes:
  - A device, 9V batteries, lead wires, 3 packs of 4 electrodes (each disposable electrode lasts 10-15 treatments), carrying case, belt clip and users manual
  - Labels MANUAL and PRESET on the LCD display, will switch on according the program
  - Labels ACUTE and CHRONIC will switch on according to the Pulse Width (50 us = Gate Control, then most suitable to ACUTE pain – Above 50 us = Endorphins then most suitable to chronic pain), regardless the PW is manually or automatically adjusted
• Can be used for nerve pain relief and discomfortNerve stimulator is a device used to treat chronic pain, and pain associated with active or post- traumatic injury unresponsive to other standard pain therapies
• Instructions to use:
  - Apply to the surface of the skin at the site of the pain
  - Remove the sleek black nerve stimulation unit from its professional case
  - Insert the battery
  - Apply the electrodes
  - Plug in the lead wires
  - Turn on the nerve stimulator unit which has 20 modes(8 Manual and 12 PRESET)
  - Adjust the pulse width (how strong the current is) and the frequency (how many times the current is delivered over time)
  - Symbols will show the occurring phase (if blinking) or the passed phase (if permanently ON) of the PRESET programs
  - Labels CONT, MOD and BURST have not to be shown during the PRESET programs
  - When mode changes, the intensity will automatically go down to zero
  - When the unit is turned on, it will automatically enter the mode that the unit had worked in before the unit was turned off
  - When the treatment timer is set, it will begin to count down one minute by one minute; once it counts down to zero, the unit will automatically shut off
  - When the pulse rate, pulse width or intensity is being adjusted, the auto-repeat function is available, when the key is held down over 1 second, it will automatically increased or decreased 1 step per 1/4 second
  - By pressing “PR-” key and “PW-” key simultaneously, the form of the stimulation wave is changed (for manual programs only) and the change is directly felt by the user
  - By pressing “MODE” key and “PR-” key simultaneously for 4 seconds, the unit will be locked or unlocked in toggle
  - While the unit is locked, all parameters cannot be adjusted except timer and intensity
  - By removing batteries or pressing ON/OFF key cannot change the status of locked/unlocked
• Can be taken anywhere you go
• Stimulates sensory nerves to block pain signals,stimulate endorphin production to help normalize sympathetic function and has a biphasic, low volt current
• The correct positioning of the pads is important
• Provide Relief For:
  - Back ache, cervical arthrosis, torticollis,arthritis, sports injuries, ankle sprains, muscular strains, myalgia, rheumatism, neuralgia, labour, after surgery, migraine, menses
  - Systemic Pain- Bursitis, Cancer, Causalgia, Multiple Sclerosis, Neuralgia, Osteoarthritis Phantom Limb Syndrome, Raynaud;s Syndrome, Rheumatoid Arthritis, Synovitis, Diabetic Peripheral Neuropathy
  - Head and Neck Pain- Cluster Headaches, Dental Disorders, Migraine Headaches, Spondylosis, Sprains/Strains, Suboccipital Headaches, TMJ Syndrome,Torticollis,Trigeminal Neuralgia, Whiplash
  - Abdominal Pain-  Diverticulosis, Dysmenorrhea Labor, Postoperative Pain
  - Back Pain- Facet Syndrome, Intercoastal Neuralgia, IVD Syndrome, Lumbago, Lumbosacral Pain Radiculitis, Sprains/Strains, Thoracodynia, Whole Back Pain
  Lower Extremity Pain- Ankle Pain, Foot Pain, Fractures, Ischialgia, Knee Pain Passive Stretch Pain, Sciatica, Sprains/Strains, Tendonitis, Thrombophlebitis
  - Upper Extremity Pain- Epicondylitis, Frozen Shoulder, Hand Pain, Peripheral Nerve Injury Sprains/Strains, Subdeltoid Bursitis, Wrist Pain
  - Chronic pain, Acute pain, Poor blood circulation, Muscle spasms, Re-educate and strengthen weak muscles, Cardiac conditioning, Denervated muscles
