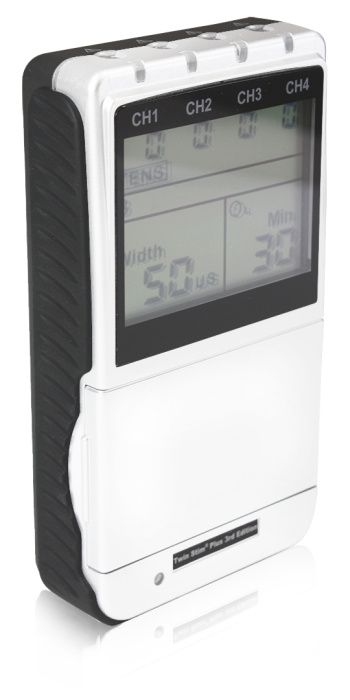

Pain Management TENS And EMS Quad Stim Plus 4 Channel Digital Device

Pain Management TENS And EMS Quad Stim Plus 4 Channel Digital Device

Authorized Retailer Badge
  • FSA Approved

Pain Management TENS And EMS Quad Stim Plus 4 Channel Digital Device is a battery operated pulse generator that sends electrical impulses electrodes to the body and reach the nerves and underlying muscle group. This unit is a combination stimulator of TENS and EMS which can be used for muscle stimulation and pain relief.

Item # Desc Pkg Reward Price
PMT-Quadstim White Each $3.49


  • Pain Management TENS And EMS Quad Stim Plus 4 Channel Digital Device Package Includes:
    - A device
    - Batteries
    - Lead wires
    - 1 pack of 4 electordes
    - A carrying case
    - A users manual
  • A large LCD in 6.1 x 4.4 cm showing the intensity level, settings and treatment timer
  • The selected modes and parameters are readable
  • Treatment time countdown the output will shut off automatically when time is up
  • 4 channel device, each with there own timer
  • The device is provided with four controllable output channels, each independent of each other
  • An electrode pair can be connected to each output channel
  • The intensity level is controlled by press buttons
  • The device is able to store 60 sets of record of operation
  • Precise Intensity Control There are 100 steps of intensity level controlled by press buttons from 1 to 100mA
  • Press Button Control The power, intensity level and parameter are controlled by press buttons, which is easy for the users to adjust the settings
  • All of the buttons are protected by a swing door to avoid accidental touch


ChannelFour, isolated between channels
Pulse AmplitudeAdjustable, 0-100 mA peak into 500 ohm load each channel
Wave FormAsymmetrical Bi-Phasic Square Pulse
Voltage0 to 50V (Load: 500 ohm)
Power sourceFour 1.5V AA batteries
Size13.8cm(L) x 7.8cm(W) x 2.8cm(H)
Weight425 grams with battery
Pulse RateAdjustable, from 2 to 150 Hz, 1 Hz/step
Pulse WidthAdjustable, from 50 to 300 microseconds, 10 µs/step
On TimeAdjustable, 2~90 seconds , 1 Sec./ step
Off TimeAdjustable, 0~90 seconds , 1 Sec./ step
Ramp TimeAdjustable, 1~8 seconds, 1 Sec./ step, The On time will increase and decrease in the setting value
ModeFive TENS Modes: B(Burst), N(Normal), M(Modulation), SD1( Strength Duration), SD2 Three EMS Modes:C(Constant) S (Synchronous), A(Alternate)
Burst Mode(B)Burst rate: Adjustable, 0.5 ~ 5Hz
Pulse width adjustable, 50~300µs
Frequency fixed = 100 Hz
