Drive Dual Channel TENS Unit With Timer

Drive Dual Channel TENS Unit With Timer

Brand/Manufacturer: DRIVE MEDICAL
Authorized Retailer Badge
  • FSA Approved

Drive Dual Channel TENS Unit With Timer is a battery operated pulse generator that sends electrical impulses electrodes to the body and reach the nerves causing pain. The device is provided with two controllable output channels, each independent of each other. An electrode pair can be connected to each output channel. The electronics of the TENS unit create electrical impulses whose intensity, duration, number per second and modulation may be altered with the controls or switches. Dial controls are very easy to use and the slide cover prevents accidental changes in the setting.

Item # Desc Pkg Price
AGF-602 TENS Unit with Timer Each

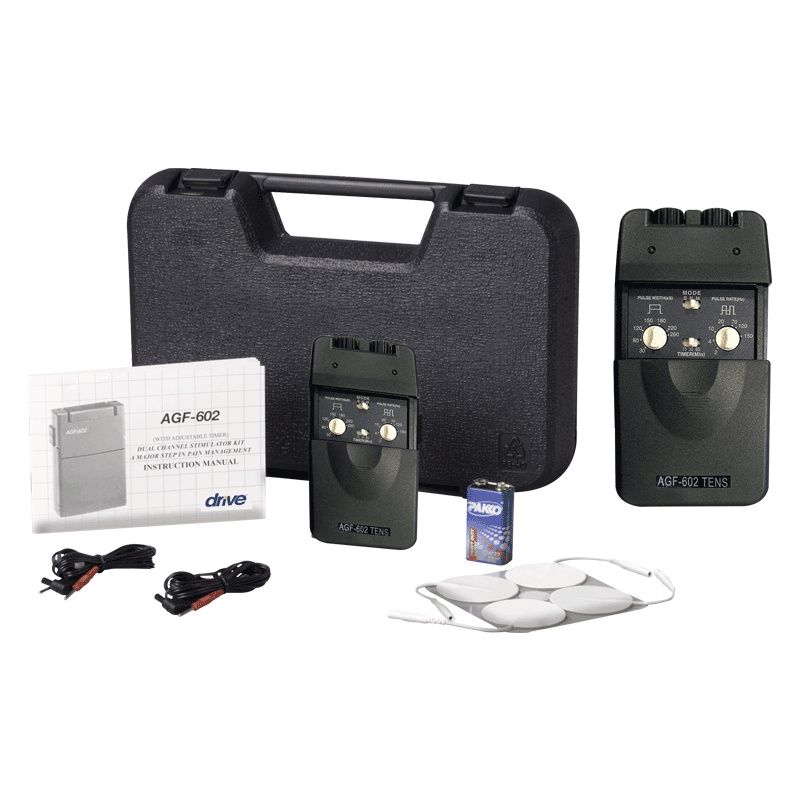

  • Drive Dual Channel TENS Unit comes with:
    - Carrying case
    - 2 Lead wires
    - 9-Volt battery
    - 1 Pack of 4 pre-gelled electrodes
    - Operating manual
  • Selectable timer provides 15, 30 and 60 minutes intervals
  • Pulse amplitude is adjustable from 0mA to 80mA, 500ohm load
  • Pulse frequency is adjustable from 2Hz to 150Hz
  • Pulse width is adjustable from 30 to 260 micro-seconds
  • Wave form: asymmetrical, bi-phase, square pulse
  • Modulation selector offers wave delivery in Normal, Burst or Modulation modes
  • Plastic belt clip
  • Dual isolated channels
  • Click here for User Manual
  • Note:
    - This product requires a prescription from a licensed medical professional.
    - Prescription can be faxed to 1.203.616.2851 or emailed to

More Information

  • How TENS Works?
    There is nothing magic about Transcutaneous Electrical Nerve Stimulation (TENS). TENS is intended to be used to relieve pain. The TENS unit sends comfortable impulses through the skin that stimulate the nerve (or nerves) in the treatment area. In many cases, this stimulation will greatly reduce or eliminate the pain sensation the patient feels. Pain relief varies by individual patient, mode selected for therapy, and the type of pain. In many patients, the reduction or elimination of pain lasts longer than the actual period of stimulation (sometimes as much as three to four times longer). In others, pain is only modified while stimulation actually occurs. You may discuss this with your physician or therapist.
  • Precautions:
    - Isolated cases of skin irritation may occur at the site of electrode placement following long-term application.
    - Effectiveness is highly dependent upon patient selection by a person qualified in the management of pain patients.
  • Contradictions:
    - TENS devices can affect the operation of demand type cardiac pacemakers.
    - TENS is not recommended for patients with known heart disease without physical evaluation of risk.
    - Do not use TENS on the carotid sinus (neck) region.
    - Do no apply TENS for undiagnosed pain syndromes until etiology is established.
    - Do not stimulate on the site that may cause current to flow transcerebrally - (through the head).
  • Adverse Reactions:
    - Possible allergic to gel, skin irritation and electrode burn are potential adverse reactions.
