Digital Ultima Five Nerve Stimulator TENS Unit is a dual-channel five-mode device with two wave form adjustments and a large LCD screen. This device is remarkable for its function, and traditional looks mixed with newage digital style. The Ultima Five is a quality choice at a valued price. Some people have trouble taking pain medicine, it is a safe, drug-free way to help control pain for these people as well.

Item #DescPkgRewardPrice
PMT-U5 Black Each $1.02

Digital Ultima Five Nerve Stimulator TENS Unit Features

  • Digital Ultima Five Nerve Stimulator TENS Unit Includes:

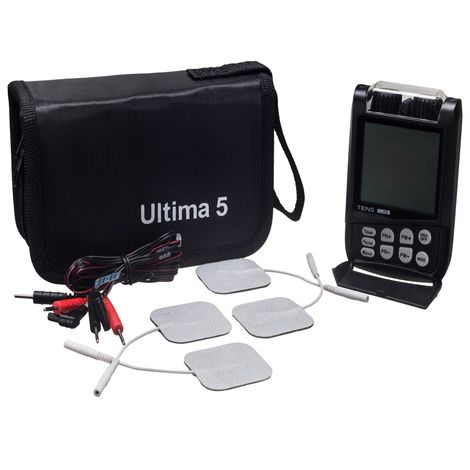

    - a device, 2 AA batteries, lead wires, 3 packs of 4 electrodes (each disposable electrode lasts 10-15 treatments), carrying case and users manual
    - Dual Channels
    - Isolated between channel Output Maximum 130 mA (peak value) across 500 Ohm load Pulse
    - Adjustable width from 50 µS to 250 µS
    - Adjustable Pulse Rate from 2 Hz to 150 Hz
    - Wave Form- Symmetrical bi-phasic rectangular Monophasic rectangular
    - Display of 52.5 mm X 35.8 mm LCD
  • Can help lessen acute (short-term) pain, like after surgery or an accident
  • Chronic pain (long-term), like arthritis, back or muscle pain, or cancer pain may also be lessened
  • Patented pain-relief technology for treating sore muscles and joints
  • Relieves recent bruising and muscle pain where injury is relatively superficial such as sports related muscle strains
  • 5 functioning Modes and treatment timer:
    - Mode A- Constant
    - Mode B- Burst I
    - Mode C- Burst II
    - Mode D- Pulse width modulation
    - Mode E- Pulse rate and Pulse width Modulation
    - Selectable Treatment Timer- Continuous, 15min, 30min, 45min, 60min
  • Functioning way of device:
    - When mode changes, the intensity will automatically go down to zero
    - When the unit is turned on, it will automatically enter the mode that the unit had worked in before the unit was turned off
    - When the pulse rate, pulse width or intensity is being adjusted, the auto-repeat function is available, when the key is held down over 1 second, it will automatically increased/decreased 1 step per 1/4 second
    - When the batteries are low, the symbol of battery is flashing in 2 Hz indicating that the batteries should be replaced
    - Automatic shut off- When the unit intensity levels are 0 on both channels, and it has not been in use for 5 minutes, the unit will be shut off automatically
  • Relieves from following types of pains:
    - Rheumatoid and Osteo-arthritis- Back pain, Menstrual Pain, Labor Pain, Peripheral Nerve Injuries, Shingles, Migraine, Cancer Pain, Trigeminal Neuralgia, Phantom Limb Pain, Sports Injuries, Sciatica, Aching Joints, Post Operative Pain, Muscular Pain
    - Systemic Pain- Bursitis, Causalgia, Multiple Sclerosis, Raynaud;s Syndrome, Synovitis, Diabetic Peripheral Neuropathy
    - Neck Pain- Cluster s, Dental Disorders, Migraine,  Spondylosis, Sprains/Strains Suboccipital TMJ Syndrome, Torticollis
    - Abdominal Pain- Diverticulosis, Dysmenorrhea Labor, Postoperative Pain
    - Back Pain- Facet Syndrome, Intercoastal Neuralgia, IVD Syndrome, Lumbago,Lumbosacral Pain Radiculitis, Sprains/Strains, Thoracodynia, Whole Back Pain
    - Lower Extremity Pain- Ankle Pain, Foot Pain, Fractures, Ischialgia, Knee Pain Passive Stretch Pain, Sciatica, Sprains/Strains, Tendonitis, Thrombophlebitis
    - Upper Extremity Pain- Epicondylitis, Frozen Shoulder, Hand Pain, Peripheral Nerve Injury Sprains/Strains, Subdeltoid Bursitis, Wrist Pain
    - Swelling, Stiffness, Muscle pain, Muscle spasms, Poor blood circulation, Strained Back, Lower back pain, and Back sprain

Digital Ultima Five Nerve Stimulator TENS Unit Precautions

  • Pregnant women and patients who have heart disease or epilepsy should seek medical advice before using the device
  • NEVER use TENS and any other method of pain relief to mask undiagnosed pain as this could require urgent treatment
  • Must not be used by patients using a demand-type pacemaker
  • Electrodes should NOT be placed at the front or side of the neck
  • Units should NOT be used when driving or operating machinery
