BioMedical Impulse 3000T TENS Unit With Timer

BioMedical Impulse 3000T TENS Unit With Timer

  • FSA Approved

BioMedical Impulse 3000T TENS Unit With Timer is a transcutaneous electrical nerve stimulator that is used for the symptomatic relief and management of chronic (long-term) intractable pain and as an adjunctive treatment in the management of post-surgical and post-traumatic acute pain problems. This TENS unit with timer is perfect for those seeking timed sessions. It features three modes of operation such as constant, width modulation and burst.

Item # Desc Pkg Reward Price
KIM3T 3.9" x 2.75" x 1" (99mm x 70mm x 25mm) Each $1.21

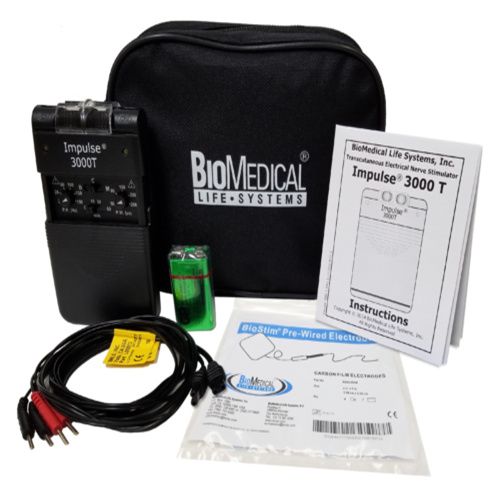

  • BioMedical Impulse 3000T TENS Unit With Timer includes:
    - 4 Lead wires
    - 4 electrodes
    - Batteries
    - Instruction booklet
    - Carrying case
    - 15, 30, 60 minutes timer

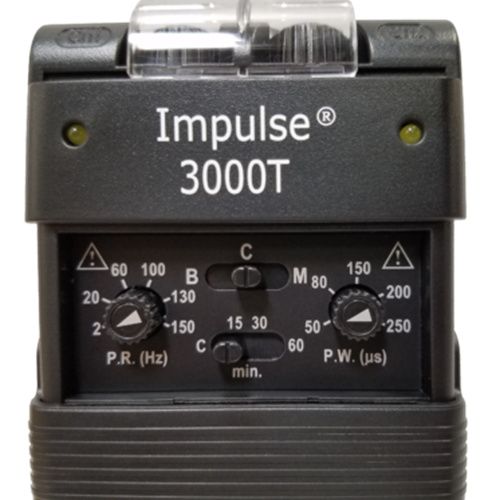

  • Adjustable pulse rate and pulse width
  • Incorporates a sliding amplitude control cover for safety, and a permanently attached 9 volt battery cover to prevent loss
  • 9 volt battery compartment is designed for simple insertion and removal of the battery

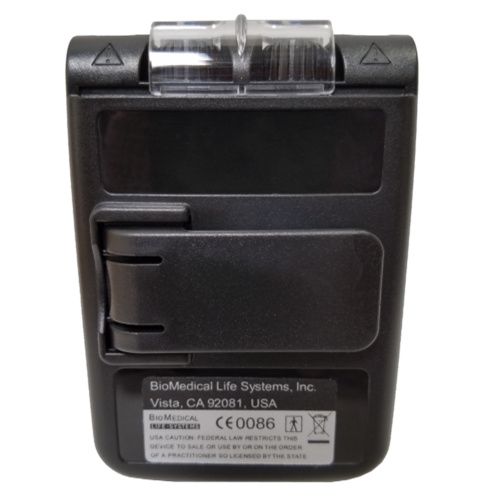

  • Provide comfort while wearing, the belt clip has been positioned horizontally
  • Easy to use and economically priced for the patient

More Information

  • Contraindications:
    TENS devices can adversely affect the operation of demand-type cardiac pacemakers. TENS is not recommended for patients with known heart disease without a physicians evaluation of risk. Do not stimulate over the eyes or carotid sinus nerves. Do not apply TENS for undiagnosed pain syndromes until etiology is established. Do not place electrodes in a manner that causes current to flow transcerebrally (through the head).
  • Warnings:
    This device should be used only under the continued supervision of a physician, or outside the USA, by a qualified pain management specialist. TENS is ineffective for pain of central origin, (i.e. appendicitis, hepatitis). TENS is of no curative value, it is a symptomatic treatment which suppresses pain sensation which would otherwise serve as a protective mechanism on the outcome of the clinical process. Safety of TENS devices for use during pregnancy or delivery has not been established.
    - Electronic equipment such as ECG monitors and ECG alarms may not operate properly when TENS is in use. The user must keep the device out of the reach of children. TENS is for external use only.
  • Precautions:
    Avoid adjusting controls while operating machinery or vehicles. Turn the stimulator off before applying or removing electrodes. Isolated cases of skin irritation may occur at the site of electrode placement following long-term application. Use only for the specific pain problem as prescribed by the physician, or outside the USA, by a qualified pain management specialist. Effectiveness is dependent upon patient selection by a qualified pain specialist.





3.1 oz (87g)



Power Source

9V battery, E-block, type 6F22




Asymmetrical, biphasic square-wave


2Hz to 150Hz (Hertz or pps)

Pulse Width

50 to 250 microseconds (µs) adjustable


Constant current


Continuous stimulation


8 pulses per burst/2 bursts per second


Decrease/increase of set width of 50% over a five-second period


+/- 10%

TimerContinuous 15, 30, 60
Amplitude0-100 mA (Adjustable)
Pulse Rate2- 150 Hz (Adjustable)
Size3.8? x 2.60? x 1? (97 mm x 62 mm x 25 mm)
Power Supply2 AA Batteries, Type LR6
Resistance LoadData was recorded across a 500 ohm resistance load
