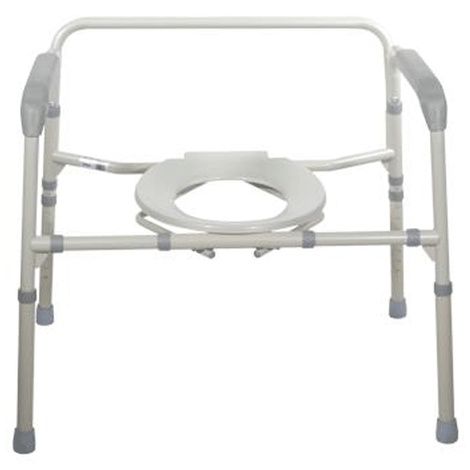

Graham-Field Bariatric Steel Folding Commode

More Information

• Instructions for Use: Set up
  - Remove frame, seat, lid, pail, cover, and splash shield from carton.
  - Attach front support bar to arm rest by depressing the locking button and sliding into the armrest channel guide. When locking button locks into place an audible click can be heard. Repeat for other side
  - Attach seat and then lid to rear support of frame. In the upright position, place splash shield or pail and cover in frame
  - NOTE: When installing the seat onto the frame, make sure that the seat is evenly spaced between the side frames to ensure proper stability
  - NOTE: Push down firmly until the seat snaps into place
  - NOTE: DO NOT use excessive force when installing the seat and lid
• Adjusting Commode Height:
  - Depress the height adjustment button and slide the lower leg upward or downward until the height adjustment button is fully engaged in the desired hole. NOTE: An audible click will be heard.
  - Repeat for other 3 legs
  - CAUTION: Ensure that all four commode legs are adjusted to the same height, and that all height adjustment buttons protrude fully through adjustment holes before use.
• Inserting Back Bar:
  - Remove back bar from carton
  - Insert back bar into channel guides on back of commode until back bar push buttons protrude fully through channel guide holes (you will hear an audible click)
• Use Commode over Toilet
  - Set commode to desired height (described in previous steps)
  - Remove commode pail and lid
  - Position splash guard in place onto pail supports
  - Remove back support (described in previous steps)
  - Lift toilet bowl seat
  - Place commode over toilet with splash shield positioned over the center of the toilet bowl. Commode is now ready for use. Clean seat and splash guard with disinfectant after each use
• Use as Bedside Commode:
  - Set commode to desired height (described in previous steps)
  - Lift commode seat and lid and place Commode pail onto pail supports. Ensure that pail is properly positioned below commode opening
  - Place commode seat down. Commode is now ready for use
  - When user is finished using commode, place commode pail lid over commode pail to contain odors
  - Remove pail and lid simultaneously to empty pail. Clean seat and pail with disinfectant after each use.
• Maintenance:
  - Use a mild soap and water solution, rinse with clear water, then dry with a soft cloth. Ensure that product is well rinsed before using
  - Never use organic solvents, abrasive cleaners, or scouring pads on any part of the product
  - To guarantee the best service from your product, always specify Lumex replacement parts, available from your GF Health Products, Inc. authorized distributor
• Warning:
  - DO NOT use this product without first completely reading and understanding these instructions and any additional instructional material such as owners manuals, service manuals or instruction sheets supplied with this product. If you are unable to understand the warnings, cautions or instructions, contact a healthcare professional, dealer or technical personnel before attempting to use this equipment - otherwise, injury or damage may occur.
  - Users with limited physical capabilities should be supervised or assisted when using the commode
  - This product has a maximum weight capacity of 650 lb EVENLY DISTRIBUTED
  - Leg extensions with rubber tips MUST be in contact with the floor at all times
  - Ensure that the push buttons fully protrude through the same height adjustment hole of each leg extension. This ensures that the leg extensions are securely locked in position and that an even height adjustment is achieved
  - Make sure that all attaching hardware, screws, nuts and/or bolts are tight at all times
  - Inspect rubber tips on the leg extensions for rips, tears, cracks or wear or if they are missing. Replace them IMMEDIATELY if any of these conditions exist
  - The commode seat MUST be installed before sitting on the commode
  - WARNING: Notice for California Customers California Proposition 65 WARNING: This product contains a chemical known to the State of California to cause cancer and reproductive or developmental harm.

Specification

Warranty

Limited lifetime warranty
