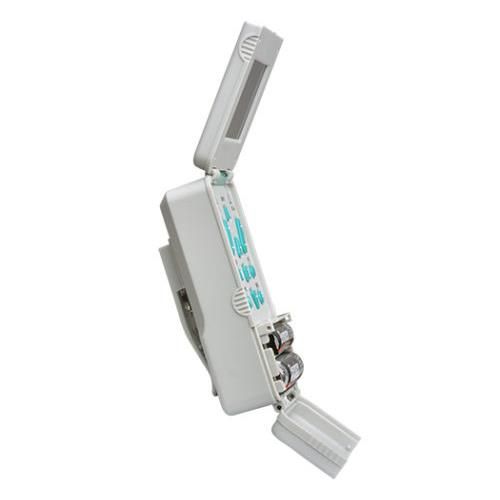

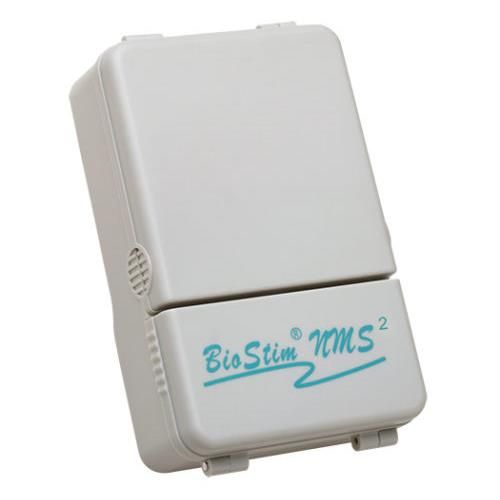

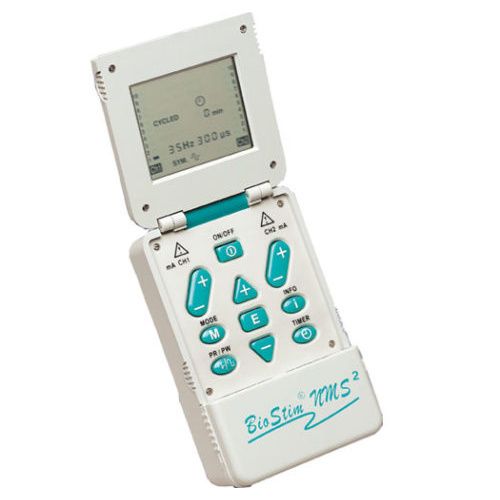

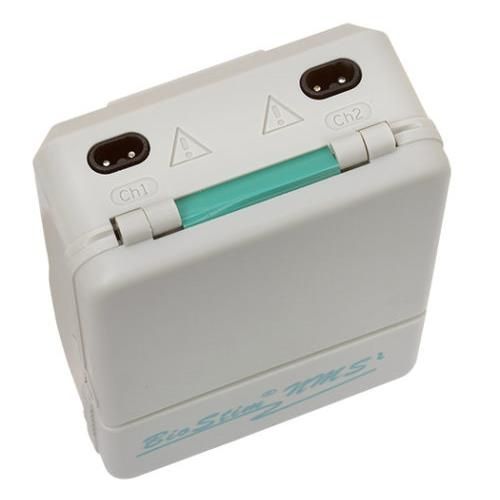

BioMedical Biostim NMS2 Digital Muscle Stimulator

BioMedical Biostim NMS2 Digital Muscle Stimulator

  • FSA Approved

BioMedical Biostim NMS2 Digital Muscle Stimulator is extremely flexible, powerful, comfortable and user friendly. There are eight user friendly pre-set therapy settings to accommodate a wide population range from pediatric applications to professional athletes. The device holds up to three custom programs and it is easy for the patient to toggle between them. The custom programs remain set into the device until they are changed or reset.

Item # Desc Pkg Price
KBNMS2 Biostim NMS2 Muscle Stimulator Each

BioMedical Biostim NMS2 Features

  • Includes
    - BioStim NMS2 device
    - (4) 2″ x 2″ square electrodes
    - BMLS Touch Proof lead wires
    - (4) AA batteries
    - Zippered Pouch
    - Belt clip
    - Instruction manual
  • Patient’s therapy can be customized by adjusting the Ramp-ON, Peak-ON, and Ramp OFF to support therapy regimen
  • The patient or therapist can easily toggle from pain relief settings, to a muscle strengthening program with the push of one button
  • Adjustable Constant, Cycled and Reciprocal open programs
  • The Patient Compliance meter starts recording how many hours the device has been used from the first time it is issued to the patient, until the device is reset by the dealer or therapist
  • The adjustable pulse width setting enables patients of all tolerance levels to achieve success in their rehab program


Size Wrist Circumference
Channels: Dual
Waveform: Symmetrical biphasic square (SYM) and Asymmetrical biphasic square (ASYM)
Pulse Rate: Adjustable 1-120 Hz (Hertz); pulses/sec
Pulse Width: Adjustable 50-400 µS (microseconds)
Ramp On: 0-10 seconds
Ramp Off: 0-10 seconds
On Time: 0-99 seconds
Off Time: 0-99 seconds
Delay: 0-99 seconds
Patient Timer: 0-99 seconds
Modes: Constant, Cycled, Reciprocal ( Adjustable)
Therapies: 8 Preprogrammed (fixed)
Intensity/Output Voltage: Continuously adjustable from 0-120mA
peak (0-60V) +/- 10%
Tolerance: All parameters +/- 2% unless otherwise noted
Power Supply: 4 AA Batteries, type LR6
Resistance Load: Data recorded across a 500 OHM resistance load
Dimensions: 3.9" x 2.6" x 1.3" (99mm x 65mm x 33 mm)
Weight: 8 oz (266 grams)


- 5 Year Limited Warranty.
