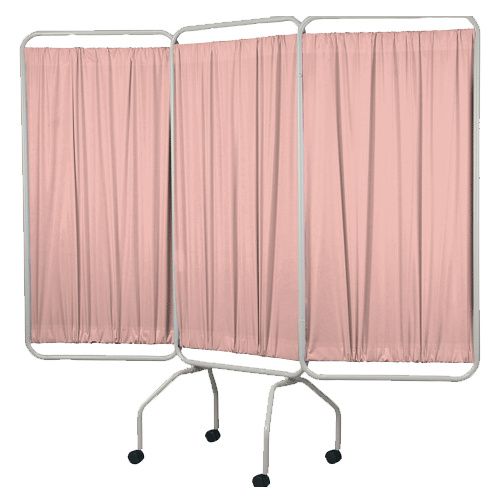

Winco Privess Basic 3 Panel Steel Frame Folding Privacy Screen

How to Install Winco Privess Privacy Screen?

Tools needed

• Phillips-Head Screwdriver
• 7/16" wrench, adjustable wrench, or 7/16" socket and ratchet wrench
• Scissors or box cutter

Assembly Instructions

• Insert caster inserts into ends of screen legs. (This is done for crutch tip or caster installation).
• You must choose either casters or crutch tips for your screen – both are provided to you. Casters must be inserted into the caster inserts. Crutch tips (only available with 3130 model) must be installed over the ends of the legs.

Leg Installation

• Install legs on mainframe using (4) 1/4" x 1-1/2" phillips head screws and locknuts.
  NOTE: Make sure the legs are installed so that the bends of the legs face the outside of the frame. This is necessary to provide the maximum footprint.
• Use your phillips head screwdriver and 7/16" wrench to tighten. Bolts must fit snugly into holes for secure leg mount.
• Verify that your screen is level. If necessary the legs can be slightly bent so that all legs touch the floor and screen stands straight.

How to Clean Winco Privess Privacy Screen?

General cleaning

• Winco furnishings are built to provide durable reliable service when properly cared for. In general all of our products should be cleaned rinsed and allowed to air dry.
• It is important to note that disinfecting a product is not the same as cleaning the product.
• Disinfectants alone will not provide adequate cleaning, they do not have grease or oil cutting properties to remove grime or hair and skin oils.
• Over time, the appearance and feel and performance of your upholstery may diminish if not cleaned properly.

Cleaning

• Remove grime, hair and body oils; Your furnishings should be cleaned with mild soap & water solution and a damp cloth on a regular basis.
• Avoid harsh detergents or chemicals that could damage the finish of your product.
• If the furnishing is disinfected with chemicals or bleach, it must be wiped off using only clean water on a damp cloth and then be allowed to air dry.
• Failure to rinse with clean water can result in a build-up of residues over time that can damage your product.

Warning

• Never place screen on a cart, table, stand or other objects; Screen could fall and serious injury may occur.
• Never place screen near open flame or over a radiator or heat register.
• Never place screen in front of a door or exit sign; In case of emergency screen could block or hinder evacuation.
• Suffocation danger to children; Screen could block nose and mouth and prevent breathing. Vinyl screen is not a toy.
• Do not allow children to play with, or climb on screen; Screen could fall and serious injury may occur.
• Periodically, recheck tightness of mounting screws.
• Screen should always be positioned on level surface.
• Never stand or ride on screen legs; serious injury may occur.
• Do not use screen in or with any type of vehicle or trailer.
• Do not attach objects to screen frame; Screen can tip over and serious injury may occur.
• Immediately remove from service; Any screen with broken or missing parts, torn vinyl, or other visible damage.
• Use only Winco authorized replacement parts.

Winco Privess 3 Panel Privacy Screen Specifications

Winco Warranty

• Limited One Year Product Warranty:
  - Winco Mfg., LLC warrants the complete product for one (1) year. At Winco Mfg., LLC sole discretion, it may repair or replace any components freight free that are found to be defective during the first year. Winco Mfg., LLC shall not be liable for any labor, or any other costs incurred as a result of or in conjunction with a warranty claim.
• Limited Three Year Warranty:
  - Winco Mfg., LLC warrants recliner mechanisms, electrical components, vinyl panels and vinyl on upholstered parts [ from cracking or delaminating] pressurized gas springs and casters, when new, for a period of three (3) years. At Winco Mfg., LLC sole discretion, it may repair or replace components found to be defective. Winco Mfg., LLC shall not be liable for any labor, shipping or any other costs incurred as a result of or in conjunction with a warranty claim.
• Limited Lifetime Chair Frame Warranty:
  - Winco Mfg., LLC warrants steel chair and aluminum base frame, when new, for the lifetime of the original purchaser. This limited warranty does not apply to paint/finish or any components attached to the frame such as; upholstery, foam, casters, mechanisms or related parts that are covered under above warranties. Winco Mfg., LLC shall not be liable for any labor, shipping or any other costs incurred as a result of or in conjunction with a warranty claim.
