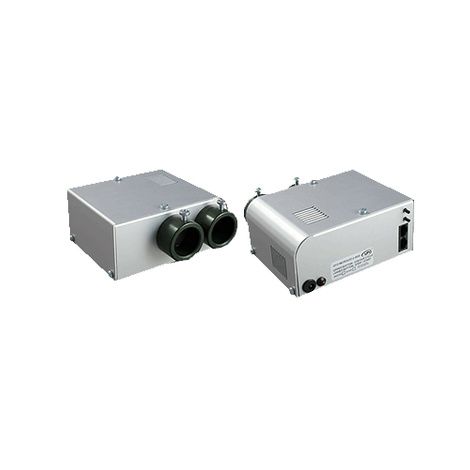

Universal Fiber Optic MicroLED 4000x2 LED Illuminator

More Information

• Installation instructions
  Power supply requirements:
  - The LED illuminator is powered from a multi-function, multi-voltage, desk top Power Supply Unit. Remove the SW4047B desk top PSU from its box. This PSU is a multiplug device catering for UK, European and USA plugs
  - Select the correct plug and slide it into the receptacle until it clicks securely into place
  - The plug can be removed by squeezing together the plastic retaining lugs and sliding the plug back out
  - Connect the jack plug into the socket in the back and the illuminator is now ready for connection
  Connection:
  - There are 3 connections required “ 2 fiber port connections and the mains supply. The fiber ports should be connected first. Connect and secure the fiber optic connectors into the green collars and secure using the M5 locking screws
  - Plug the mains plug into the electrical supply socket. Switch on the power, the LED indicator will illuminate and the illuminator will start up automatically. If no light is produced consult the troubleshooting section
  Batteries:
  With the LED Illuminator powered up as described above, remove the rear cover on the Remote Controller. Taking care not to touch any of the front cover buttons, insert the batteries. If you touch the remote control buttons when inserting the batteries it WILL aïect the operation of your Remote Control. If user do accidentally touch any of the buttons, remove the batteries and start again
  - Once the batteries are inserted do not use the Remote Control for 5 seconds
  - The Remote Controller is matched to the Illuminator. If the Remote Controller is not matched, or an additional or replacement Remote Controller is required for the Illuminator, proceed to the matching mode as follows. If a Remote Controller is to be removed from control of a Illuminator proceed to unmatching mode
  Remote operation:
  - Button 1: On / Off
  - Button 2: Color Mode Select
  - Button 3: White Light Select
  - Button 4: Brightness +
  - Button 5: Brightness -
  - Color Ring: Manual Color Select
  - Matching Mode: Remove the power plug from the rear of the illuminator, then replace and immediately (within 3 seconds) press button 4, the Illuminator will blink 3 times indicating that the Remote Controller is matched to the Illuminator.
  - Unmatching Mode: Remove the power plug from the rear of the Illuminator, then replace and immediately (within 3 seconds) press button 4, five times , the Illuminator will blink 3 times indicating that the Remote Controller unmatched from the Illuminator
  - Color Mode: Press the button momentarily to go from White Light to Color. The Color Ring can now be used to select individual colors by touching the ring. Touching the ring is preferred to rapidly sliding users finger around the ring. Press and hold Button 2 for 3 to 5 seconds and the colors will cycle automatically. Press the button momentarily to stop on the color of your choice. To return to color cycle, press and hold Button 2 for 3 to 5 seconds
  - White Light: Press button 3 to go to White Light mode
  - Brightness: Brightness can be increased or reduced in any mode using buttons 4 and 5
• Note: These illuminators are not mains dimmable
• Note: Multiple commands to the Illuminator (such as sliding a finger rapidly around the color ring) may cause the Illuminator to freeze and temporarily stop obeying commands and in some extreme instances permanently stop until power to the Illuminator is recycled. It is not recommended that the Remote Control be used in this way
• Note: Where a Illuminator has more than one Remote Control, reduction in operating range may be experienced when both (or multiple) Remote Controls are used simultaneously
• Remote range walk test:
  - Once the Illuminator is fully installed carry out a complete range walk test and record the range. This information is essential for maintenance purposes to determine if the range or sensitivity is reducing and also to record dead areas within the Remote Controller”s range due to RF obstructions and RF interference
• Standalone operation:
  - To disable the remote and revert to manual operation press one of the buttons on the rear of the Illuminator
  - The Illuminator will now respond to manual commands from the 2 control buttons as detailed below
• Operation:
  - The Illuminator is controlled using the 2 push buttons on the rear of the unit
  - The Lower button STOPS and STARTS the color Cycle
  - The Upper button is used to select the Cycle speed as follows. Push the Upper button repeatedly until the color White is displayed. The illuminator is now in Cycle 1 speed A. Each push reduces the speed. On the third push the color Red will be displayed. The illuminator is now in Cycle 2 speed A
  - At any time the cycle can be stopped on a color and started again using the Lower push button
  - To disable manual operation and revert to remote controller operation, recycle the power to the Illuminator. The Remote Controller may need to be matched to the Illuminator
