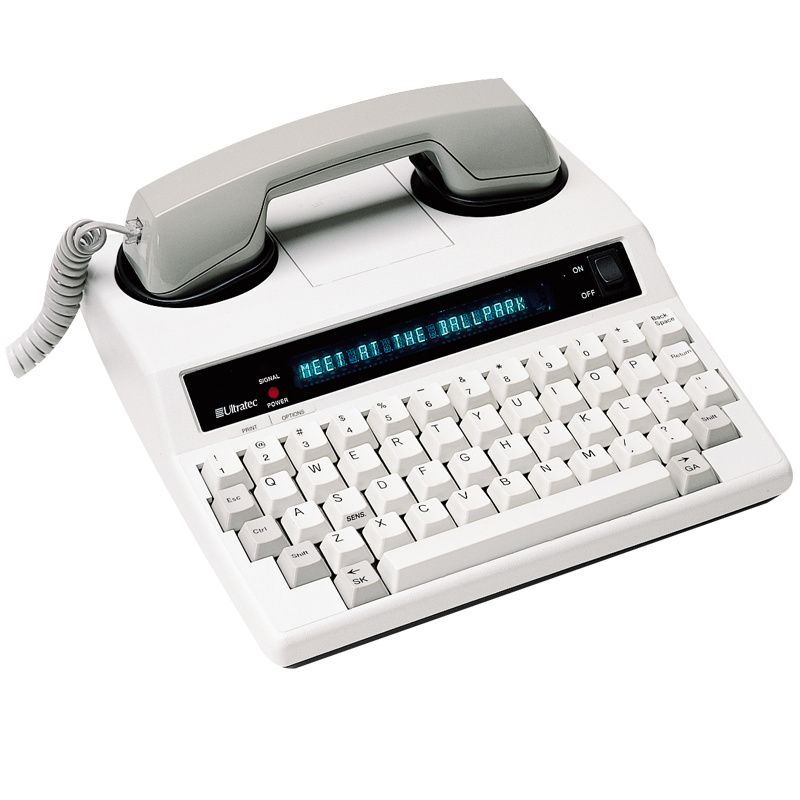

Ultratec Minicom IV TTY Telecommunication Device

Ultratec Minicom IV TTY Telecommunication Device

Brand/Manufacturer: ULTRATEC, INC.
  • Made in USA

Ultratec Minicom IV TTY Telecommunication Device is affordable basic model for use in acoustic mode, by placing the telephone receiver on the TTY's acoustic cups. It has an easy touch keyboard with a bright, tilted 20 character display for hours of comfortable use. Turbo Code lets user enjoy real time conversations with other Turbo Code TTYs.

Item # Desc Pkg Price
UTI-MC4 10" x 9.5" x 3" (25.4cm x 24.1cm x 7.6cm) Each


  • Ultratec Minicom IV TTY Telecommunication Device includes:
    - A printer port to connect an external printer (printer not included)
    - Dust cover
    - Soft carrying case
  • Convenient GA and SK keys
  • 43 key, 4 row keyboard
  • Rechargeable batteries and AC adapter included
  • Acoustic Coupler accepts both circular and square telephone handsets
  • AC adapter: 9VDC, 650 mA
  • Baudot code:
    - (45.5 and 50 baud rate)
    - Sensitivity: -45 dbm, 67 dBSPL (minimum)
    - Output: -10 dbm
  • Turbo Code:
    - Enhanced communication protocol with interrupt capability
    - 100 baud (average)
    - 7 data bits
  • Display:
    - Blue/green vacuum-fluorescent 20 characters
    - 0.25 (6mm) character height
  • Keyboard:
    - 50 ergonomic keys in 5 rows
    - Control key plus 4 function keys
    - Sticky Keys for single-handed typists
    - Character set: A-Z, 0-9, Backspace, Return/LF, Space, + GA, SK
  • Weight: 3.75lb (1.7Kg) with batteries
  • FCC approved
  • Click here for User Manual

Set-up Ultratec Minicom IV Phone

  • All you need to do to set up the Minicom IV is plug it in! You must plug in the AC adapter for 24 hours to charge the batteries.
  • After the batteries are charged, you can leave the AC adapter plugged in all the time unless you need to use the batteries during a power outage or while traveling.
  • Be sure to pull the plastic tab out of the battery compartment on the bottom of the Minicom IV before you plug in the AC adapter.
  • Place the Minicom IV next to a telephone.
  • Plug the AC adapter cord into the Minicom IV
  • Plug the AC adapter into a wall outlet.

Safety Instructions for MinicomIV:

  • When using your Minicom IV, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons:
  • Read and understand all instructions
  • Follow all warnings and instructions marked on the Minicom IV
  • Unplug the Minicom IV from the wall outlet before cleaning. Do not use liquid or aerosol cleaners. Use a damp cloth for cleaning
  • Do not use the Minicom IV near water, for example, near a bath tub, wash bowl, kitchen sink, laundry tub, in a wet basement, or near a swimming pool
  • Do not place the Minicom IV on an unstable cart, stand, or table. The product may fall, causing serious damage to the Minicom IV
    - This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your dealer or local power company
  • Do not allow anything to rest on the power cord. Do not locate the Minicom IV where the cord will be damaged by persons walking on it
  • Do not overload wall outlets and extension cords. This overloading can result in a fire or electric shock
  • To reduce the risk of electric shock, do not disassemble the Minicom IV, but take it to a qualified service person when service or repair work is required. Opening or removing covers may expose you to dangerous voltages or other risks. Incorrect re - assembly can cause electric shock when you use the unit again
  • Avoid using a telephone (except a cordless type) during an electrical storm. There is a remote risk of electric shock from lightning
  • Unplug the Minicom IV from the wall outlet and refer servicing to qualified service personnel under the following conditions:
    1. When the power supply cord or plug is damaged or frayed
    2. If liquid has been spilled into the Minicom IV
    3. If the Minicom IV has been exposed to rain or water
    4. If the Minicom IV does not operate normally by following the operating instructions. Adjust only those controls, that are covered by the operating instructions because improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the Minicom IV to normal operation
    5. If the Minicom IV has been dropped and/or damaged
    6. If the Minicom IV exhibits a distinct change in performance
  • Do not use the telephone to report a gas leak in the vicinity of the leak
Caution: To reduce the risk of fire or injury to persons, read and follow these instructions:
  1. Use only the type and size battery specified in the battery instructions for your unit.
  2. Do not dispose of the batteries in a fire. Cells may explode. Check local codes for possible special disposal instructions.
  3. Do not open or mutilate the batteries. Released electrolyte is corrosive and may cause damage to the eyes or skin. It may be toxic if swallowed.
  4. Exercise care in handling batteries in order not to short them with conducting materials such as rings, bracelets, and keys. The battery or conductor may overheat and cause burns.


1 Year warranty
