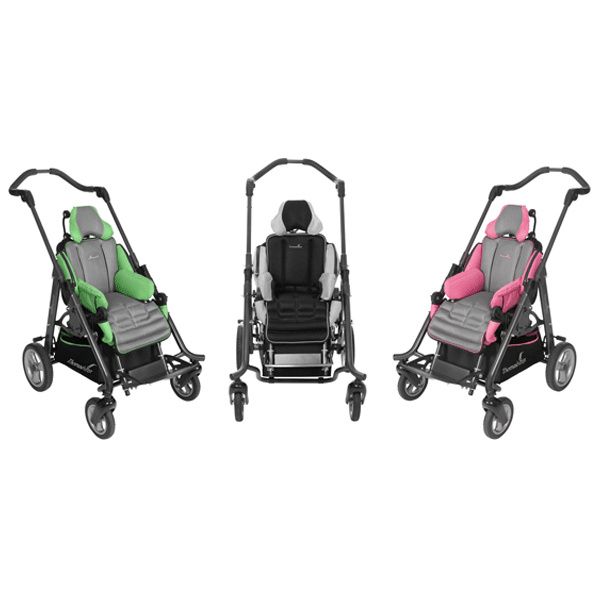

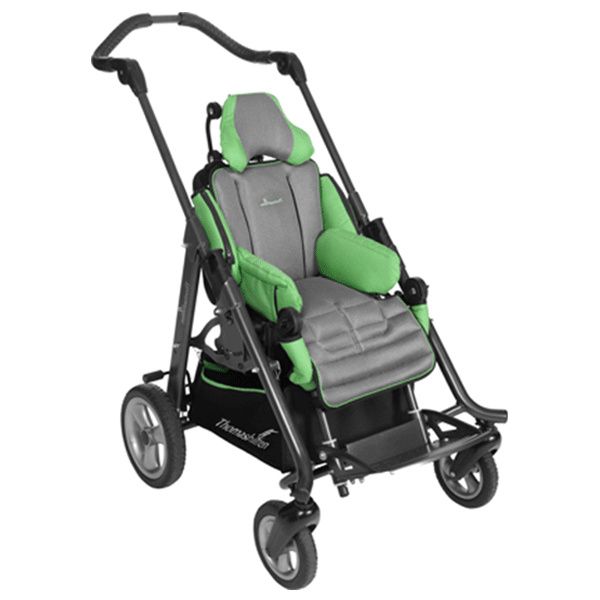

Thomashilfen tRide Stroller

Thomashilfen tRide Stroller

Brand/Manufacturer: THOMASHILFEN (EXOMOTION)
Save

Thomashilfen tRide Stroller provides a number of therapeutic adjustments to support and maintain the stability and independent function of the user. The tRide design is more inclined towards the child than towards rehabilitation which makes it an ideal stroller. A wide range of positioning accessories makes it safe and secure for the child. It accommodates a number of adjustments like three dimensionally adjustable headrests and footrest that support stability and independent function.

Buy this product and earn 112.25 Reward Dollars.

  • ORDERING DETAILS
  • Total: $4115.85
    Total: $3741.69
Total: $4115.85
Total: $3741.69

Features

  • Thomashilfen tRide Stroller includes:
    - Seat
    - Back
    - Recline
    - Hip Support
    - Backrest
    - Headrest
    - Calf Strap

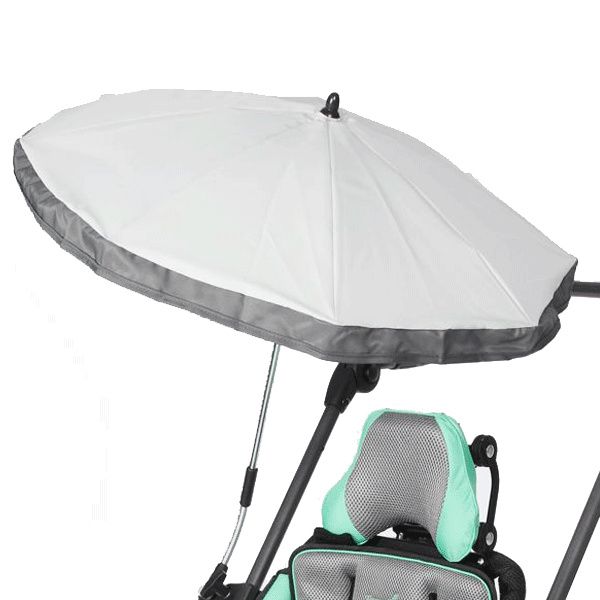

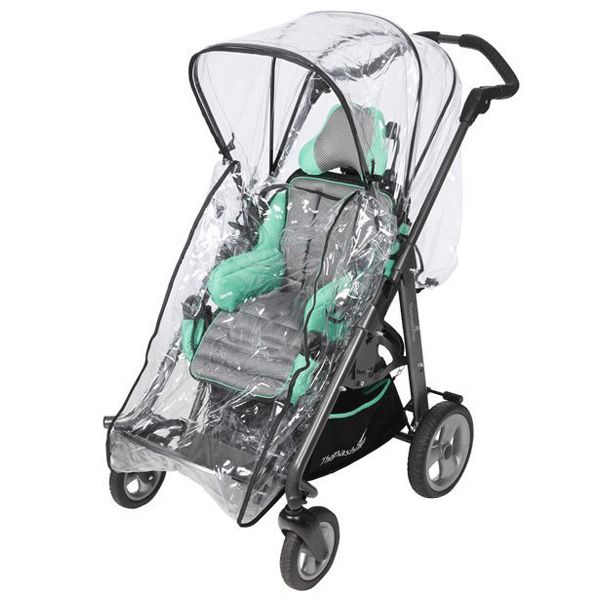

  • Brackets for sun and rain cover
  • Easily accessible adjustments without tools
  • Tiltable footrest, height, and angle adjustable
  • Adjustable arm supports (height, width, and depth)

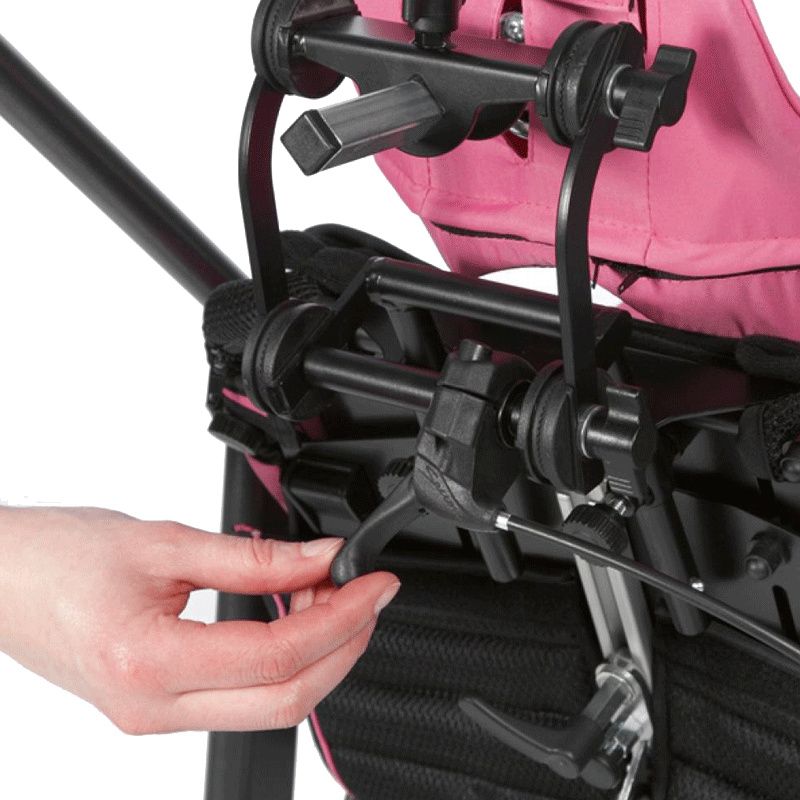

  • Practical one-handed adjustment with dual function
  • Breathable seat and back upholstery; fire retardant fabrics
  • TRide seat unit with physiological pivots for the hip and knee joint
  • Adjusting the angle of the seat and removing the seat from the frame

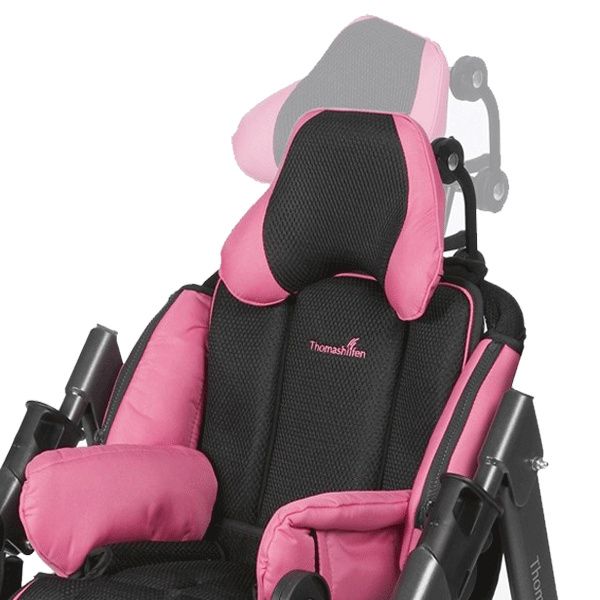

  • Headrest (neck support) including adapter, adjustable in 3 dimensions
  • Continuously adjustable back height, hip angle, seat depth and seat width
  • Frame Options:
    T-Chassis:

    - Folding aluminum frame
    - 35° posterior tilt-in-space
    - 0°anterior tilt stop
    - cargo basket
  • Q-Chassis:
    - Hi-low indoor base/feeder/therapy frame
    - Height/ tilt adjustable
    - Pedal controlled gas spring
    - Lockable rear wheels
  • Click Here For User Manual
  • Click Here For Technical Manual
  • Click Here For Product Manual

More Information

  • Safety:
    - Before using the product for the first time, read the user manual carefully
    - We recommend that you adapt the settings of the EASyS to your child current body measurements at least every 3 months. If necessary, this can also be done with the help of your therapist / orthopedic technician

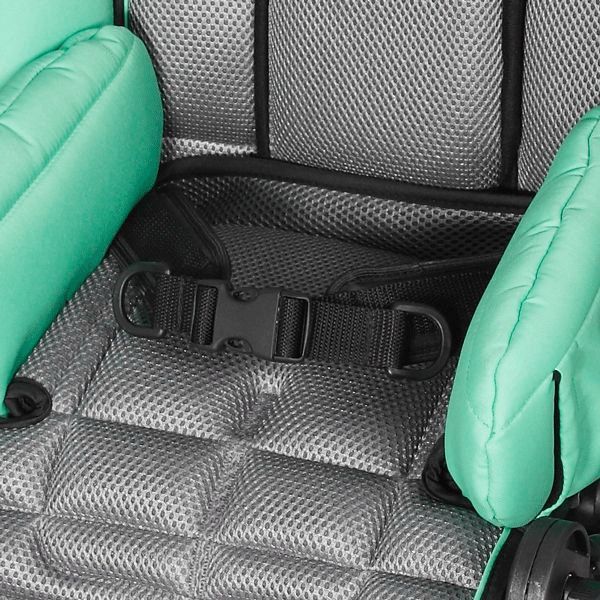

    - Always secure the child using the 2-point pelvis belt or a different retaining belt (sold separately); never leave the child unattended in the rehab stroller
    - Please do not overload your rehab stroller and observe the maximum load capacity
    - In the dark, reflective clothing makes you and your child more visible to other road users
    - Attaching heavy bags or string bags to the stroller increases the risk of tipping. Use the basket on the chassis
    - When handling the EASyS seat unit (especially when folding and unfolding it), heed the recommendations in the user manual
    - Please keep your children away from the packaging; there is a danger of suffocation
    - Only one child at a time may be placed in the rehab stroller
  • Caution:
    - The gap between the chassis and the brake release rod may pose a risk of getting clothes and limbs caught in the area of the feet
    - The gap between the seat and the chassis may pose a risk of getting clothes and limbs caught in the seat area
    - Sunlight, electric heaters or other heat sources may excessively warm up the seat/rehab stroller. In this case, there is the risk of burning your back and legs upon contact. Therefore, always ensure that the seat/rehab stroller is not exposed to these heat sources during use and storage; use it only when it has cooled sufficiently
    - When stopping for a long period, you should lock the rehab stroller using the foot brake, thus preventing the stroller from unintentionally rolling away
    - Always ensure that the locking pins on both sides of the seat unit engage firmly into a hole in the hole matrix

Specification

Particulars Size 1 Size 2
Seat depth 17 - 28 cm / 6¾ - 11" 24 - 35 cm / 9? - 13¾"
Seat width 20 - 30 cm / 7? - 11¾" 26 - 35 cm / 10¼ - 13¾"
Seat height 26 - 42 cm / 10¼ - 16½" 32 - 52 cm / 12? - 20½"
Lower leg length 17 - 30 cm / 6¾ - 11¾"" 25 - 36 cm / 9¾ - 14¼"
Hip angle 90° to 140° 90° to 140°
Knee angle 90° to 180° 90° to 180°
Foot angle 78° to 100° 78° to 100°
Turning range of seat 180° 180°
Height adjustment arm support 10 - 14 cm / 3? - 5½" 12 - 18 cm / 4¾ - 7?"
Size of arm support (W x H) 21 x 10 cm / 8¼ x 3?" 129 x 12 cm / 11? x 4¾"
Size of footrest (W x D) 29 x 18 cm / 11? x 7?" 33 x 21 cm / 13 x 8¼"
Overall dimensions (L x W x H) 85 x 41 x 57 cm / 33½ x 16? x 22?" 98 x 46 x 46 cm / 38? x 18? x 18?"
Folded dimensions without footrest 63 x 36 x 38 cm / 24¾ x 14¼ x 15" 76 x 46 x 50 cm / 30 x 18? x 19¾"
Weight of the seat 8 kg / 17? lbs 10.8 kg / 23¾ lbs
Max. carrying capacity 35 kg / 77¼ lbs 40 kg / 88¼ lbs
