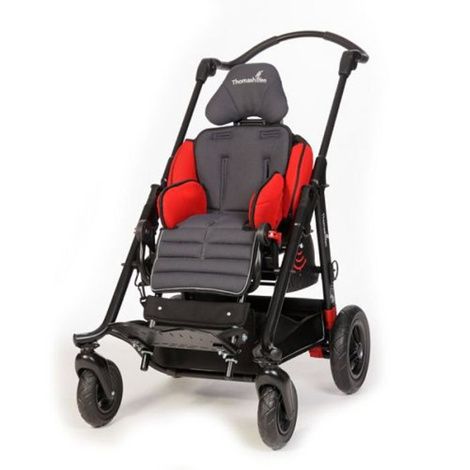

Thomashilfen EASyS Modular S Pediatric Stroller

Thomashilfen EASyS Modular S Pediatric Stroller

Brand/Manufacturer: THOMASHILFEN (EXOMOTION)
Save

Thomashilfen EASyS Modular S Pediatric Stroller is perfect choice for children who need more positioning support in combination with the best possible freedom of movement. The short back in addition to the multidimensional adjustable headrest ensures ideal adaptation and support for active children. A large variety of adjustments for optimal seating, positioning and comfort in motion are the basis for taking part in everyday activities.

Buy this product and earn 109.7 Reward Dollars.

  • ORDERING DETAILS
  • Total: $4102.85
    Total: $3656.7
Total: $4102.85
Total: $3656.7

Thomashilfen EASyS Modular S Pediatric Stroller Features

  • Thomashilfen EASY Advantage Stroller includes
    - Seat
    - Back
    - Recline
    - Hip Support
    - Bracket
    - Calf Strap
    - Foot Strap
  • Headrest
    - The multi-dimensional adjustable headrest
    - Can be individually adapted to the child
    - Provides a secure hold and optimum support
  • Is available in different versions
    - Neck support: supports the sensitive neck area during head movements
    - Shell gives maximum support for the whole head
    - Adjustable both sides adjust for individual positioning
    - Adapter an option for a custom-made headrest
  • Adjustment
    - The short back and the separate headrest
    - Offer more freedom of movement for the upper body and arms
    - Promote a stable sitting posture so that the child can experience his or her surroundings better
  • Footrest
    - The footrest, whose angle and height can be adjusted
    - Can be folded closed
    - Lets the child get in and out independently
  • Arm supports
    - The lateral hip and arm supports are positioned close to the child‘s body, for relaxed sitting
    - Height and depth adjustable
  • Cover
    - The seat cover, which is made of high-quality fabric
    - Can be machine-washed up to 40°C
    - Is soft and breathable – preventing sweating and providing a thoroughly cozy feeling
  • Crotch Strap Fits:
    - 6629: H-Belt
    - 8420/8470: 2 point, padded, SR buckle
    - 8421/8471: 4 point, padded, SR buckle
  • Three-dimensional adjustable headrest for optimum adaptation and support (three versions)
  • Large variety of adjustments for optimal seating, positioning and comfort in motion
  • Small height and depth adjustable arm supports positioned close to the child‘s body, for relaxed sitting
  • For children who need more positioning support
  • Frame Options
    A-Chassis includes:

    - Folding aluminum frame
    - Tilt-in-space
    - Spring suspension
    - Cargo basket
    Q-Chassis includes:
    - Hi-low indoor base/feeder/therapy frame
    - Height/tilt adjustable
    - Pedal controlled gas spring
    - Lockable rear wheels

Thomashilfen EASyS Modular S Pediatric Stroller User Manual

Specification

Particulars EASyS Modular S 1 EASyS Modular S 2
Seat depth 3 19 - 30 cm / 7.5 – 11.8" 27 - 38 cm / 10.6 – 15"
Seat width 4 19 - 26 cm / 7.5 – 10.2" 27 - 35 cm / 10.6 – 13.8"
Back height 1 (without head rest) 28 - 42 cm / 11 - 16.5" 34 - 53 cm / 13.4 - 20.9"
Lower leg length 2 18,5 - 30,5 cm / 7.3 - 12" 18,5 - 37 cm / 7.3 - 14.6"
Hip angle 90° to 140° 90° to 140°
Knee angle 90° to 180° 90° to 180°
Foot angle 78° to 100° 78° to 100°
Turning range of seat 180° 180°
Seat tilt-in-space(on A chassis Advantage), driving direction -10° to +35° -10° to +35°
Seat tilt-in-space(on A chassis Advantage), face-to-face 0° bis +35° 0° bis +35°
Size of hip guide (w x h) 23 x 12 cm / 9.1 x 4.7" 29 x 11 cm / 11.4 x 4.3"
Size of footrest (w x d) 28 x 18 cm / 11 x 7.1" 32 x 21 cm / 12.6 x 8.3"
Overall width 5 59,5 cm / 23.4" 69 cm / 27.2"
Overall dimensions(on A chassis Advantage) (l x w x h) 99,5 x 59,5 x 114 cm / 39.2 x 23.4 x 44.9" 107 x 69 x 120 cm / 42.1 x 27.2 x 47.2"
Folded dimensions(on A chassis Advantage) (l x w x h) 85 x 59.5 x 60 cm / 33.5 x 23.4 x 23.6" 81 x 69 x 69 cm / 31.9 x 27.2 x 27.2"
Weight (seat) 8,8 kg / 19.4 lb 11 kg / 24.3 lb
max. user weight (seat) 35 kg / 77.2 lb 40 kg / 88.2 lb

Particulars A1 chassis A2 chassis
Seat tilt-in-space (driving direction) -10° to +35° -10° to +35°
Seat tilt-in-space (face to face) -10° to +35° -10° to +35°
Push bar height 6 71.5 - 117 cm / 28.2 - 46.1" 71.5 - 117 cm / 28.2 - 46.1"
Wheel size swivel wheels (front) 18 cm / 7.1" 18 cm / 7.1"
Wheel size (rear) 25 cm / 10" 25 cm / 10"
Weight (chassis) 9.8 kg / 21.6 lbs 10.9 kg / 24 lbs
Carrying capacity (basket) 5 kg / 11 lbs 5 kg / 11 lbs
Carrying capacity (incl. seat) 50 kg / 110.2 lbs 55 kg / 121.2 lbs

Particulars Q-Chasis
Seat tilt-in-space -7° to +31°
Seat height 29 - 69 cm (with seat unit) / 11-3/4" - 27-1/4"
Push bar height -
Adapter height 21 - 60 cm / 8-1/4" - 23-5/8"
Overall dimensions (l x w x h)(incl. EASyS Modular seat unit) 76 x 54 x 25 bis 62 cm / 29-7/8" x 21-1/4" x (9-3/4" - 24-3/8")
Folded dimensions (l x w x h) (incl. EASyS Modular seat unit) -
Wheel size swivel wheels (front) 100 mm / 4"
Wheel size (rear) -
Weight (without seat unit) 13,5 kg / 29-3/4" lb
Carrying capacity (incl. seat) 50 kg / 110-1/4" lb
