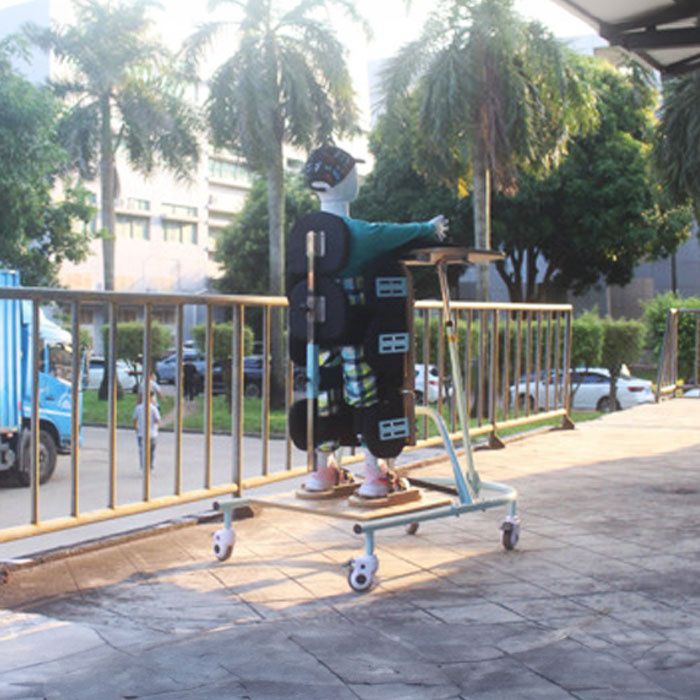

Stanzme Prone Stander Package

How To Assemble Stanzme Prone Stander?

• Each child is different so every adjustment should be determined by a therapist or physician. THE user is required to wear Ankle Foot Orthosis to successfully use a stander.
  • Step 1 - Before you begin to assemble, lock the casters in the rear by pushing the "ON" lever down to ensure the prone stander is stable and will not move while attaching the parts to assemble.
  • Step 2 - Insert the silver rod across the frame through the upright bracket as shown in the picture. The silver rod must travel straight through the hole on the other end. Once it is through, use the nut to secure the rod and tighten with the appropriate half inch size wrench. (Do not overtighten the nuts)
  • Step 3 - Secure the round end of the piston to the lower part of the vertical frame with a receiver and cotter pin.
  • Step 4 - Mount the foot platform at the location indicated on the frame with black washers against the frame and a silver washer on the other end. Use the two knobs to secure it tightly in place. (The foot platform can be moved higher with the same securing process which allows heel to chest height as short as 19".)
  • Step 5 - Secure the two lateral knee pads on to the wooden knee pad frame then mount the entire knee pad onto the stander vertical frame with screws and washers. The U-shape of the knee pad must be facing upwards. (Knee pad may not be necessary if user is short and the foot platform can be mounted higher to accommodate the client.)
  • Step 6 - Secure the side pads on to the trunk plate then mount the top of the trunk plate to the vertical section of the stander with 4 sets of screws and washers on the frame at the assigned t-nut receivers.
  • Step 7 - Mount the pelvic stabilizer bar (which is adjustable in depth and height to prevent pelvis from moving in an anterior position and knee buckling) onto the trunk plate and insert the pelvic pad perpendicular to the frame. The medial roll foam of the pelvic pad can be cut by 2" if the pelvic pad needs to be moved closer to the frame.
  • Step 8 - Secure the square-like end of the piston at the location of the vertical frame as shown in the picture.
  • Step 9 - Secure the tray into the telescoping part of the vertical blue frame and hold it with a slide-in-cotter pin.
  • Step 10 - Mount the tray onto the vertical part of the frame at the desired location with screws on either side. Remove the screw first, then align the tray plates and tightly remount the screws.
  • Step 11 - Mount the piston tilt release handle with the C clamp provided separately to secure the handle from loosening.

How to Fit and Adjust Stanzme Prone Stander?

• Each child is different so every adjustment should be determined by a therapist or physician. The user is required to wear Ankle Foot Orthosis to successfully use a stander.
  • Height Adjustment
    - Height of the prone stander is adjusted with the child's mid-chest length. The top of the chest pad should come up to about the child's armpit or axilla. Additional adjustments should be made by the therapist or physician according to the body structure of the child. Users can change the height of the stander by loosening the height adjustment knobs on the vertical portion of the stander. The upper chest board of the stander can then be elevated up to an additional 9 inches (19" to 28" by removing top 2 knobs and securely mounting with the remaining 4 knobs). Be sure to retighten the knobs securely.
  • Angle Adjustment

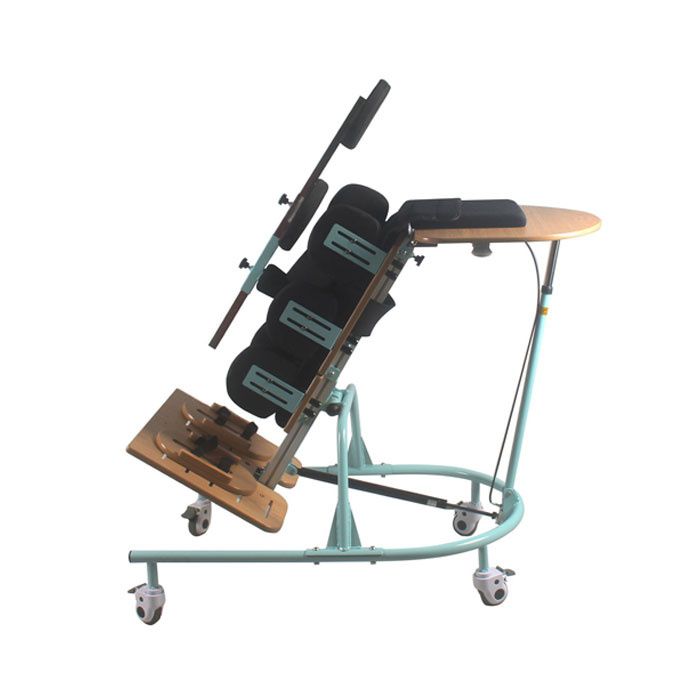

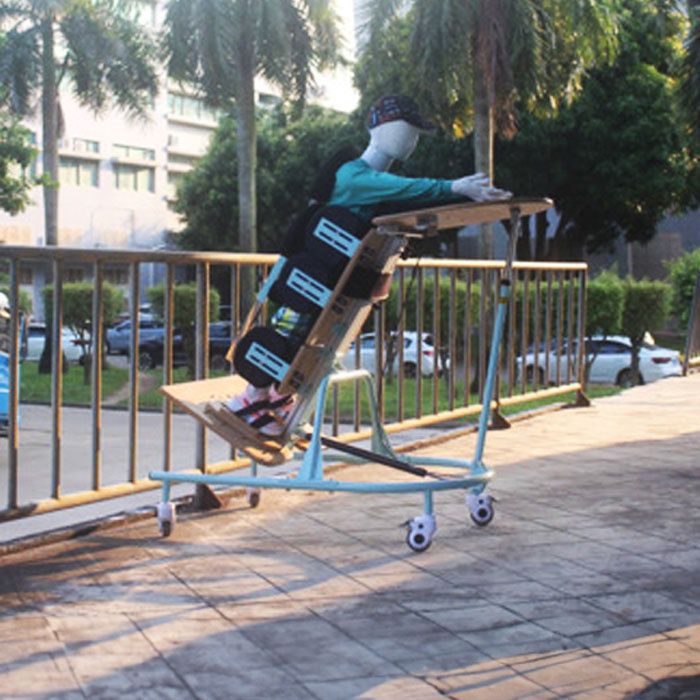

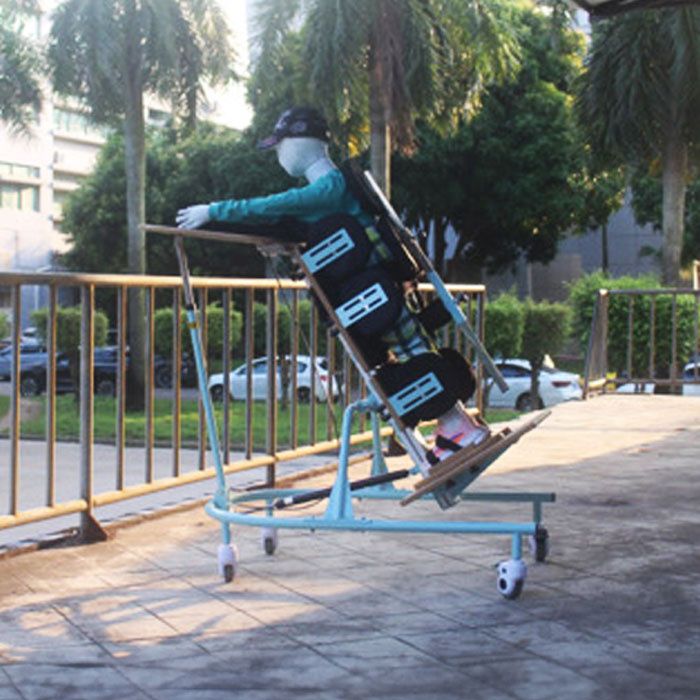

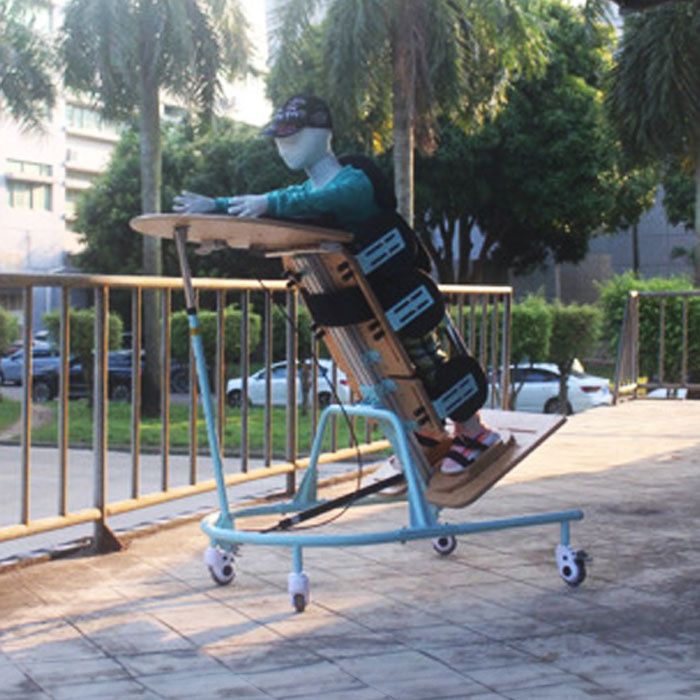

    - Angle adjustment of the stander ranges from an upright 90 Degree position to approximately 30 Degree forward tilt. To change the angle of the stander push toggle upward to allow the piston to move the chest board into prone position.
  • Tray Adjustment
    - The tray is adjustable for both height and angle. To adjust the tray height/angle, loosen the knobs of the square center bar of the stander and raise or lower the whole tray assembly to the desired height.

How to Use and Care for Stanzme Prone Stander?

• Use

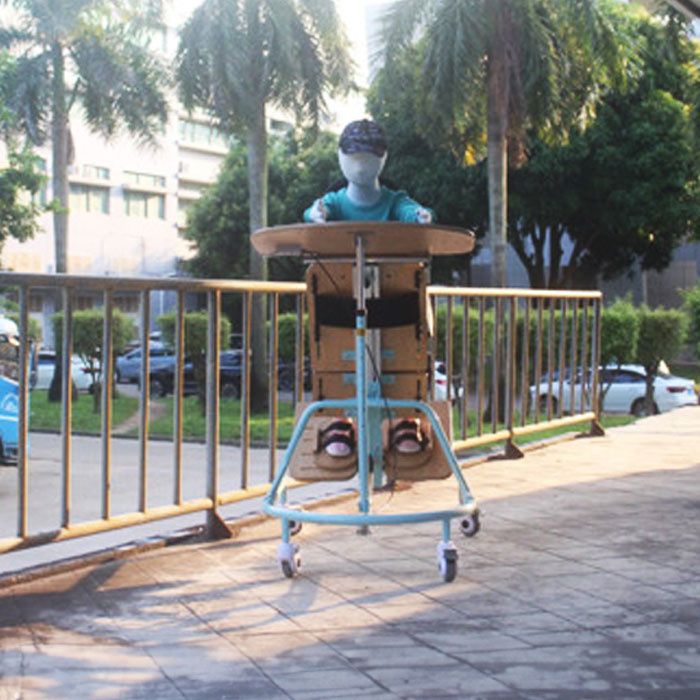

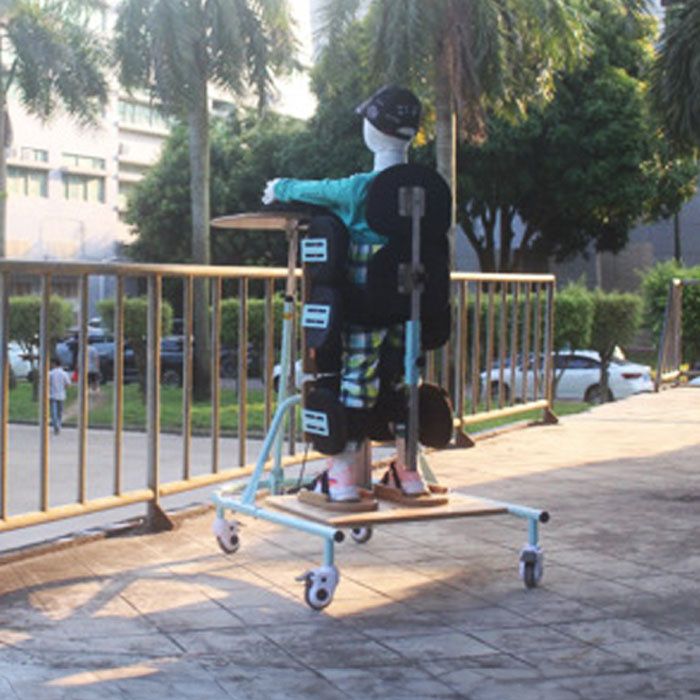

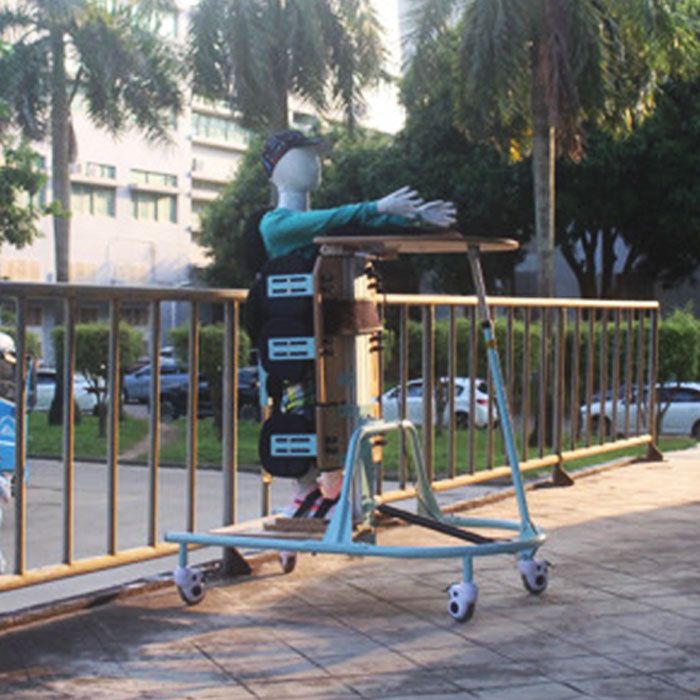

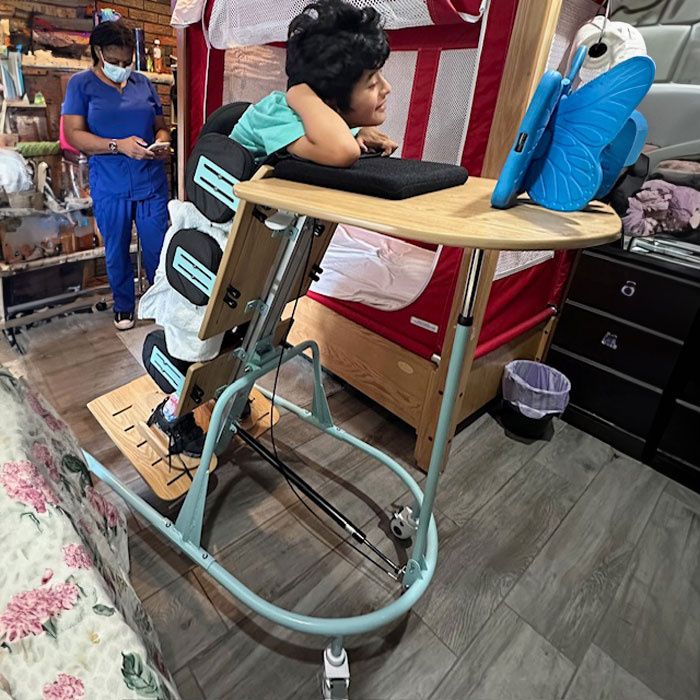

  - Designed to provide the child with the ability to stand and bear the weight of the body in an upright or forward-leaning position. This allows the user to relieve pressure created from long hours of sitting for better digestion and bowel movements. The easy adjustment combinations and support accessories of the stander hold the child in good postural alignment and provide overall perks of standing.
• Care
  - Keep regular checks on the product to detect any loose, missing hardware or any signs of cracked or broken parts to avoid unwanted damage to the user or the stander. All components can be cleaned with mild soapy water or non-abrasive commercial cleaner approved for use on vinyl, wood, and metal. Do not use excessive amount of water, and make sure to wipe the wood and metal dry.

Stanzme Prone Stander Specifications

Warranty

• The product is warranted to be free from defects in material and workmanship for a period of One year to the original purchaser.
• Should any part break or fail, manufacturer will repair or replace it at no charge to the original owner, except for Pneumatic tilt Piston or if there is abuse on use by the client or caregiver.
• Manufacturer will not warrant parts damaged by improper installation and/or repair on the part of the individual owner, or normal wear and tear.
• Manufacturer does not warrant parts damaged by neglect, accident or misuse, nor parts altered or serviced by an agency not authorized by the manufacturer.
• Any labor cost for service under warranty is not covered as per our terms of sale.
• Standard manufacturer terms and conditions are applicable for warranty of this product.
