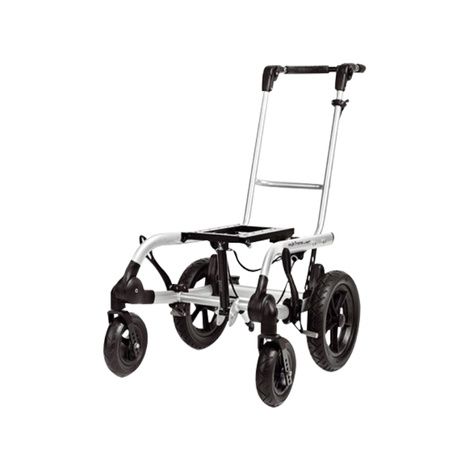

Snug Seat Multi Wheelchair Frame

Snug Seat Multi Wheelchair Frame

Brand/Manufacturer: R82/SNUGSEAT INC
Save
  • Non Returnable

Snug Seat Multi Wheelchair Frame is an innovative, lightweight and highly maneuverable wheelchair base which is designed to accept Snug Seat Panda or X:Panda Seat. The simple to operate tilt in space with the minimum of moving parts makes this frame an easy choice for users.

Item# 97

  • ORDERING DETAILS
  • Total: $4871.35
    Total: $3747.19
Total: $4871.35
Total: $3747.19

Features

  • Snug Seat Multi Wheelchair Frame standard features:
    - Built-in tilt in space: 45º range
    - Easy change of seat to floor height
    - Wheel locks
    - Angle adjustable push brace
  • Also accepts other manufacturers seats and backs
  • Base plate provides an easy to mount surface for seats and backs
  • Has been tested and approved according to ISO 7176-19
  • Available in three sizes and with either 12.5" or 22" rear wheels
  • Also available:
    - Snug Seat Panda Futura Pediatric Seat (Code 890121-71US)
    - Snug Seat X:Panda Pediatric Seat (Code X8910111-02)

Specification

Particulars Size 1 Size 2 Size 3
Back width, inside (mm) 245 295 345
Folded height with 12 1/2" back wheels (mm) 470 470 470
Folded height with 22" back wheels (mm) 560 560 560
Folded height without back wheels - Mid position (mm) 400 400 400
Folded length with 12 1/2" back wheels (mm) 730 730 730
Folded length with 22" back wheels (mm) 850 850 850
Folded length with 22" wheels (mm) 850 850 850
Footrest to adaptor plate (mm) 50-340 50-340 50-340
Hand brace length (mm) 225 225 225
Handrim diameter (mm) 480 480 480
Inside width (mm) 340 390 440
Length - with 12½" wheels (mm) 640 640 690
Length - with 22" wheels (mm) 750 750 800
Mass device with 12.5" wheels and solid front wheels (kg) 13 13 13
Mass device with 22" air wheels and air front wheels (kg) 14 14 14
Maximum load (kg) 100 100 100
Overall height, push brace 15° (mm) 915 915 915
Overall height, push brace 30° (mm) 850 850 850
Overall width 22" wheels & drumbrake (mm) 430 480 530
Overall width with 12.5" wheels (mm) 590 640 690
Overall width with 22" wheels (mm) 590 640 690
Seat plane angle (°) 0 - 30, 35, 40 0 - 30, 35, 40 0 - 30, 35, 40
Seat surface height at front edge (mm) 395, 425, 455 395, 425, 455 395, 425, 455
Width between 22" wheels with drum brake (mm) 430 480 530
Width between 22" wheels without drum brake (mm) 440 490 540
Width inside (mm) 340 390 440
