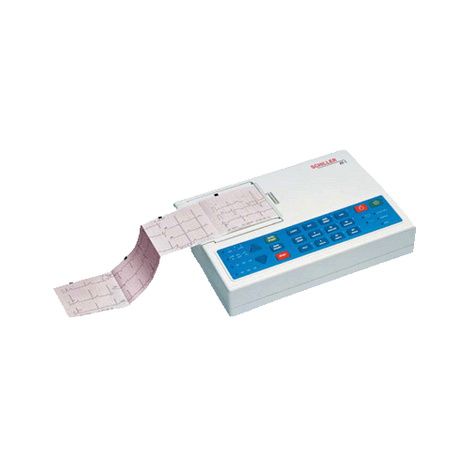

Schiller America Three Channel ECG CARDIOVIT AT-1
Schiller America Three Channel ECG CARDIOVIT AT-1

Schiller America Three Channel ECG CARDIOVIT AT-1

Brand/Manufacturer: SCHILLER AMERICA
Save
  • FSA Approved

Schiller America Three Channel ECG CARDIOVIT AT-1 performs quick and accurate 12-lead ECG analysis, in a three channel format. It is perfect for all applications including stationary office use, hospital bedsides and ambulatory field work. It is reliable, powerful and ideal cost effective ECG unit for professional electrocardiography.

Read More
Item # Desc Pkg Price
9190000 Without Interpretation Software Each
$3042.65
$2340.49
9190000C With Interpretation Software Each
$3202.75
$2463.69

Features

For product dimensions and other specifications please select Specification Tab


  • Schiller America Three Channel ECG CARDIOVIT AT-1 has simultaneous 12-lead acquisition
  • Built-in thermal printer, rechargeable battery and charger unit
  • Copy functions and various recording rates
  • Automatic and manual modes
  • Lightweight, 2.9kg/6.7lbs
  • Multiple report formats
  • 3-channel print format
  • One-button operation

More Information

  • Includes:
    -     10 lead patient cable with banana plugs AHA (2.400071)
    - Bio-adhesive electrodes SCHILLER-Tabs Ag (2.155031)
    - Snap clip adapters (2.155032)
    - Recording paper (2.157014)
    - 115VAC electrical cable (2.300012)
    - Automatic measurement and interpretation program for resting ECGs (5.020002)

Specification

Particulars  Dimensions
Dimensions  11.4"L x 8.3"W x 2.7"H
 Weight  6.7lbs
 Power Supply  220V to 240V (nominal), 50/60Hz or 110V to 115V
 Power Consumption  Maximum 28VA
 Battery Charging Time  15hrs from a completely discharged battery
 Battery Capacity  2hrs of normal use
 Leads  Standard / Cabrera
 Frequency Range of Digital Recorder  0Hz to > 150Hz (IEC/AHA)
 ECG Amplifier  Simultaneous, synchronous registration of all 9 active electrode signals
 Sampling frequency: 1000Hz
 Pacemaker detection: = ± 2 mV/ = ± 0.1ms
 Myogram (muscle tremor) Filter  25Hz (40dB/dec) or 35Hz (20dB/dec), programmable
 Line Frequency Filter  Distortion-free suppression of superimposed
 Control Panel  Pad keys, LED indicators
 Environmental Conditions  Temperature, operating: 10°C to 40°C / 50°F to 104°F
 Temperature, storage: -10°C to 50°C / 14°F to 122°F
 Relative humidity: 25% to 95% (non-condensing)
 Pressure, operating: 700hPa to 1060hPa
 Paper Speed  5 / 25 / 50 mm/s (direct)
 Printing Sensitivity  5 / 10 / 20 mm/mV, either automatically adjusted or manually
 Chart Paper  Thermoreactive, Z-folded, 90mm / 3.5" wide, or Roll, 90mm wide
 Printing Process  High-resolution thermal printhead
 8 dots per mm / 200 dots per in (amplitude axes)
 40 dots per mm / 1000 dots per in (time axes, @ 25 mm/s)
