R82 High-Low Frame

R82 High-Low Frame

Brand/Manufacturer: ETAC
Save

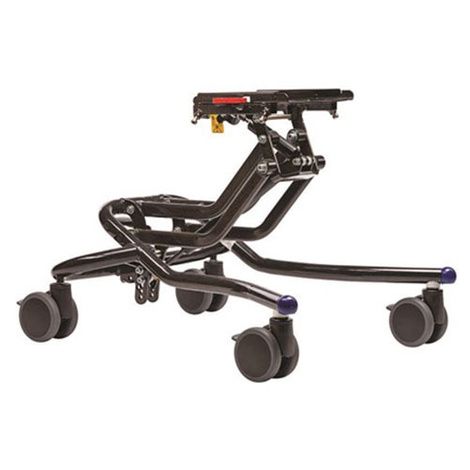

R82 High-Low Frame is a stable base with a user-friendly height adjustment from floor to table height. It can be used either as an indoor frame with small lockable castors or as an outdoor frame with large wheels and foot brakes. The frames are available with either gas or power height adjustment.

Item # Desc Pkg Price
8910545 Push Brace Each
$428.59
$299.99

Features

  • Safe transportation in vehicles
  • Height adjustment
  • Interface
  • Angling of seat base

Standard specifications

  Indoor frame with gas Indoor frame with power Outdoor frame with gas Outdoor frame with power
R82 item number 89505-03 89505-03EL 89516-03 89516-03EL
Footrest to adaptor plate (inch) 2-11.5 2-11.5 2-11.5 2-11.5
Length (inch) 27.25 27.25 37.75 37.75
Mass device (lbs) 27.1 28.2 38.5 39.6
Max load (lbs) 132.25 132.25 132.25 132.25
Max load at transportation (lbs) - - 94.75 94.75
Maximum rated load (lbs) 163.8 164.9 175.2 176.3
Overall width (inch) 22 22 24.5 24.5
Seat plane angle (°) (-10) - 30 (-10) - 30 (-10) - 30 (-10) - 30
Seat surface height at front edge (inch) 6.75-23.5 6.75-23.5 10.25-27.5 10.25-27.5
