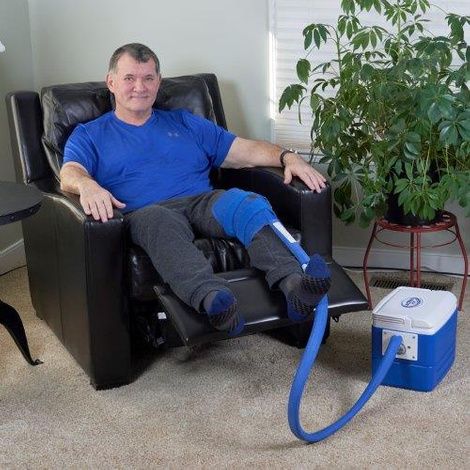

Polar Active Ice 3.0 Knee And Joint Cold Therapy U-Shaped Bladder System With 9 Quart Cooler

What to buy with Polar Active Ice Machine For Knee

• Polar Active Ice Insulated Tubing Extension
• Polar Active Ice Y-Shaped Hose Connector
• Polar Lithium-Ion Battery Pack with Charger Accessory

Also Available Separately:

• Polar Active Ice Cold Therapy System with 9 Quart Cooler
• Polar Power Transformer Adapter

How to use Polar Active Ice 3.0 Knee & Joint Cold Therapy System?

1. Cautions: Always begin with power supply unplugged. Do not turn on the system until all connections are complete and the hose from the cooler to the therapy bladder is free from bends or restrictions, as this will restrict water flow through the system.
2. Connect the therapy bladder hose tubes to the Active Ice®System hose tubes with the quick disconnect couplings. Be sure the tab on the female coupling is pushed all the way down then insert the male couplings into the female couplings. Couplings "click" when they are properly locked together.
3. If the optional #TCV temperature and flow control was purchased, it should be connected between the system hose and the bladder using the quick disconnect couplings. Connect as described above. Turn the knob to “Coldest.”
4. Open the reservoir and fill with clean, cold water to the water fill line in the cooling reservoir. Be sure water covers the pump in the reservoir. Caution: Never operate unit without water! This can cause pump failure. Do not overfill the reservoir with water.
5. Completely fill the reservoir with ice to the water return flow tube located near the top of the reservoir.
6. If the optional #TCD electronic temperature and flow control was purchased, it should be plugged in between the timer control and the cooling reservoir. Turn the control to #5 or “Coldest.”
7. Plug the Digital Timer #DT30 into the plate on the side of the cooling reservoir, then plug the other end into the power supply. Finally, plug the power supply into a wall outlet. Ensure all connections are securely seated.
8. If the optional battery pack was purchased it should arrive fully charged and it may be connected now. This replaces the power supply. The battery has two cords, one cord is labeled “To Cooler” and the other cord is labeled “To Charger.” Use the “To Cooler” cord to plug into the digital timer #DT30 and then plug the timer into the cooling reservoir. The unit will now run off of the battery pack. To charge the battery pack, plug the other cord labeled “To Charger” into the included charger and then plug the charger into a wall outlet. While the battery pack is charging the light on the charger will be red. The light will change to green when the battery pack is fully charged. Note: Do not attempt to charge the battery while it is operating the unit.
9. The Polar Active Ice Cold Therapy System includes an electronic digital timer. The digital timer may be turned on by pressing the on/off button. The timer will automatically set at 30 minutes and turn the unit on. The default 30-minute setting is a safety feature as many doctors recommend 30-minute therapy sessions followed by skin inspection. If your doctor directs you to use the unit for longer periods of time, an additional 30 minutes of operation will be added to the session each time you press the “+” button. Always follow your doctor’s recommendations in regards to treatment time and skin inspection. When the unit times out or is turned off, the timer will always reset to 30 minutes as the default time of operation.
10. Lay the bladder on a flat surface and turn on the digital timer. Water will begin circulating through the bladder and back into the cooling reservoir via the water return flow tube. Allow the unit to run several minutes before securing the bladder to the target body part. This will ensure good flow through the system. Always ensure that there is water flowing out of the return tube into the cooling reservoir.
11. Use the enclosed elastic belt with hook and loop tabs to hold the universal bladder comfortably on the target body part. Cautions: Always use an insulation barrier (such as Webril, Kerlix, cast padding, or elastic bandage) between the therapy bladder and the skin. If using the optional compression wrap(s), see “Using the Universal Bladder with the Optional Compression Wraps”.
12. When the water temperature has risen above the desired level, refill the reservoir with ice. (See steps ‘4’ and ‘5’.) Drain water if necessary.
13. Confirm that water is flowing out of the return flow tube at the top of the cooler when the system is on

Polar Active Ice 3.0 Knee and Joint Cold Therapy Syatem User Manual

How to care and maintain Polar Active Ice 3.0 Knee Cold Therapy System?

• Empty and wipe out the cooling reservoir after each use.
• When necessary, rinse cooling reservoir and hoses with warm, antibacterial soapy water.
• Once every 2 weeks, pour 16 ounces of Isopropyl (Rubbing) Alcohol in the reservoir with the ice and water while system is in use.
• Allow the alcohol and water mixture to circulate through the system for at least 30 minutes.
• Periodically check the pump filter sponge and clean it or replace it. Do this by grasping the back of the pump and pulling the pump cover off.
• Then remove the black filter sponge.
• Clean and replace

How to clean and store Active Ice 3.0 Knee And Joint Cold Therapy?

Note: It is not possible to remove all of the water from the bladder, system and tubing; therefore before extended storage follow these instructions.

1. To clean the system after you have finished all of your cold therapy treatments and prior to extended storage, fill the reservoir with water to the fill line and mix in 2 tablespoons of liquid bleach.
2. Connect the bladder to the system and turn the unit on.
3. Allow the water and bleach mixture to circulate for 5 minutes. This will help keep the system clean.
4. Turn unit off and unplug the power supply.
5. Carefully drain the water and bleach mixture out of the reservoir. Store in a cool dark place leaving the lid slightly open. (Exposure to sunlight and extreme heat may damage hoses and unit.)
6. When reusing the unit after extended storage, remove the filter sponge from the pump motor and clean or replace. Then fill the reservoir with clean water, connect the old bladder and turn the pump on to circulate the water through the hose and bladder and flush the remaining water mixture out of the system (use the old bladder pad for this procedure, discard the bladder pad after cleaning is completed). A new bladder pad should be purchased when using the system after extended storage. A new filter sponge and bladder pad may be purchased from Polar Products Inc. Call 800.763.8423 or order on our website at www.polarproducts.com
7. Dispose water and refill the reservoir with fresh ice and water. Follow the operating instructions in this manual before use.
8. Before you use the unit, inspect hoses and new pad for any tears or breaks. Contact Polar Products Inc. to purchase new therapy bladder pad and filter

Polar Active Ice 3.0 Warranty

If the unit is within its 180 day warranty period, it will be repaired or replaced with a new unit at no charge.
