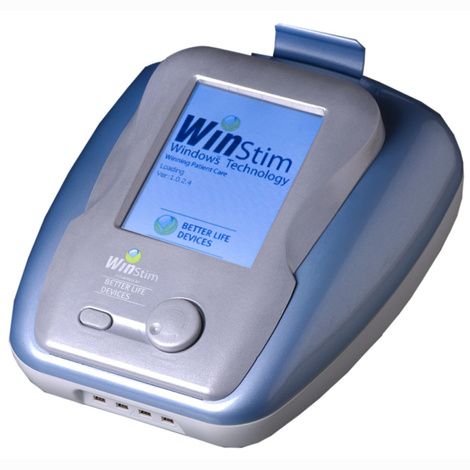

Pain Mangement WinStim Advance Combo Electrotherapy And Ultrasound Combination Unit

Pain Mangement WinStim Advance Combo Electrotherapy And Ultrasound Combination Unit

Brand/Manufacturer: PAIN MANAGEMENT TECHNOLOGIES
Save
Authorized Retailer Badge
  • FSA Approved

Pain Mangement WinStim Advance Combo Electrotherapy And Ultrasound Combination Unit is a clinical combination therapy with easy user interface and versatility to treat different body areas simultaneously. This aesthetically designed clinical model has a unique ultrasound head with inbuilt power control and user preset electrotherapy programs. The state of the art Winstim is light weight, small in size, and battery powered. WinStim is a multi-modality touch screen clinical device with TENS, EMS, IFC, High Volt, Russian, Micro, premod and ultrasound. It is powered by an internal rechargeable battery.

Item # Desc Pkg Reward Price
ST4U Winstim Each $76.83
$2817.15
$2561.09

Features

  • Pain Mangement WinStim Advance Combo Electrotherapy And Ultrasound Combination Unit has 2/4 Independent Electrotherapy Channels
  • 20 free programmable memory positions
  • Intensity Display And Control Inbuilt in US applicator with Thermal detection
  • Ultrasound Head Warming Easy one touch program selection Touch Screen LCD Display
  • Inbuilt battery pack
  • Technical Specifications
    - No. of channels: 2/4
    - Carrier Frequency: 2000-10000 Hz
    - Beat Frequency: 0-400 Hz
    - Max. Output Intensity: 0-100mA
    - Phase Duration: 20-1000 μS
    - Treatment Time: 1-60 Min
    - Power: Input: 110 ~ 220 V
    - Output: 24V DC Adaptor
    - Inbuilt Battery: 24V DC
    - Electrical Type: TYPE BF
  • Ultrasound Specification:
    - Frequency: 1 MHz & 3 MHZ
    - Pulse Frequency: 100 Hz
    - Intensity: 0 to 2.5 W/cm² (Continuous) 0 to 3 W/cm² (Pulse)
    - Beam Nonuniformity Ratio: 5:1
    - ERA: 3.5 cm² to 5 cm²

Warranty

5 Year Warranty
