Pain Mangement Medical Grade High Power Ultrasound And TENS Combo
Pain Mangement Medical Grade High Power Ultrasound And TENS Combo

Pain Mangement Medical Grade High Power Ultrasound And TENS Combo

Brand/Manufacturer: PAIN MANAGEMENT TECHNOLOGIES
Save
Authorized Retailer Badge
  • FSA Approved

Pain Mangement Medical Grade High Power Ultrasound And TENS Combo affect the quality and enjoyment of life, especially for those who suffer chronic pain. The Ultrasound Combo combines electrical therapy with ultrasound therapy in one device.

Item #DescPkgRewardPrice
UTC1000 Ultrasound/TENS Each $8.50
$245.70
$170.00

Features

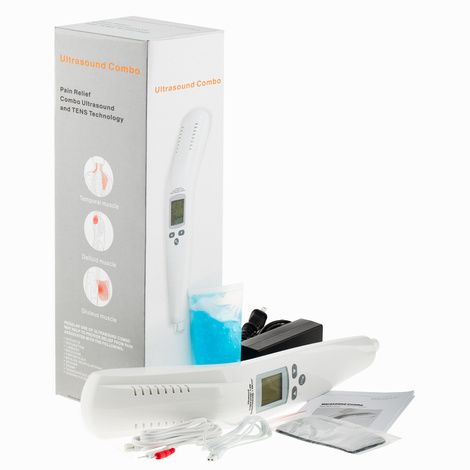

  • Pain Mangement Premium Portable Ultrasound Machine includes:
    - Device
    - Batteries
    - Lead wires
    - 1 pack of 4 pads
    - Small tube of ultrasound conductive gel
    - Carrying case and users manual
  • FDA approved 14 programs with 1 MHz ultrasound Easy application LCD backlight indication
  • Power Supply: medical adapter Professional grade Ultrasound Specs
  • Beam type: Collimated Material of Applicator Stainless steel
  • Output characteristics: constant voltage (CV)

More Information

  • Note: Ultrasound therapy machines should always be used with ultrasound gel. The ultrasound gel helps to transfer the sound waves into the body during treatment. Using the machine with out the gel could damage the ultrasound device and lower the efectivness of the therapy.

Specification

ParticularsDimension
Ultrasound Specs
Acoutsic Frequency 1MHz +/-10%
Generator Output2.0W ± 10%
Modulation wave shape20Hz±10%
5 level output intensity with duty factor 5%, 20%, 50%, 80%, 100%,
Timer10 min
Actual Radiating Area (AER) 4.0 cm2 ± 20%
Actual intensity 0.5 W/cm2 ± 20%
RBN6.16 square centimeter +/-5%
Beam typeCollimated
Material of applicatorStainless steel
TENS Specs
Output CharacteristicsConstant Voltage (CV)
Single Directional PulseEach 7 programs for C and U Mode
Frequency 2~150 Hz
Pulse Duration60~250uS
Maximum Output80Vpp (1 K ohm)

Warranty

  • Six Months Warranty On Unit
