Moen 24 Inches Brushed Nickel Grab Bar With Towel Bar

Moen 24 Inches Brushed Nickel Grab Bar With Towel Bar

Brand/Manufacturer: MOEN INC
Save
  • HyGiene Products
  • Non Returnable
  • FSA Approved

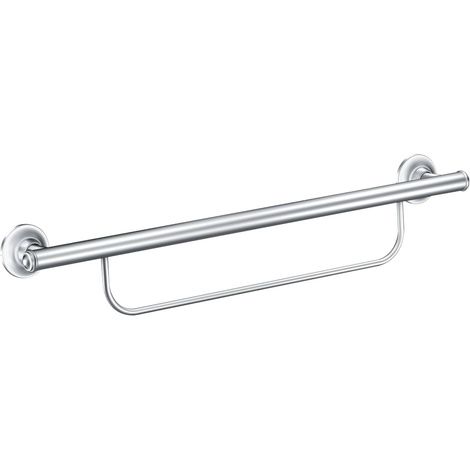

Moen 24 Inches Brushed Nickel Grab Bar With Towel Bar is ideal for safe transition in and out of the tub/shower. Its SecureMount anchor is strong enough to support up to 250 lbs and allows for secure installation into any stud at any angle. The brushed nickel finish brings the warm look of stainless to the bath.

Item # Desc Pkg Reward Price
LR2350DBN Brushed Nickel Finish Each $3.85
$167.05
$128.49

Features

  • Moen 24 Inches Brushed Nickel Grab Bar With Towel Bar is corrosion resistant
  • 24" bar length
  • 1.0" bar diameter
  • The patented SecureMount design makes grab bar installation easier and more secure with an innovative design that features multiple slots for screws, allowing secure connection with three screws into the wood stud at any angle
  • Conventional mounting configurations often only allow for one or two screw connections to the stud, making installation difficult and less secure
  • Grab Bar is made from stainless steel for added durability secure
  • Mount anchor is made from POM

More Information

  • Warning
    To prevent serious or fatal injury
    - For use only by persons weighing less than 250 pounds
    - Consult a healthcare professional for advice and instructions specific to your needs before use
  • Preferred installation is into wood backing (studs) on both the left and right sides of the grab bar
  • One SecureMount anchor is included in case a stud is not available on one side of the grab bar
  • Installation
    - Determine desired mounting location on the wall, ensuring at least one side is located over a stud. Locate the stud behind the wall by using a stud sensor or other stud locating method
    - Place the bar on the wall; ensuring one mounting flange is located on a stud. Use a level to make sure the bar is level on the wal
    - Trace both flange perimeters with pencil
    - Remove 3 set screws from each flange and disassemble bar from SecureMount flanges
    - On the stud side mounting location, center the flange in the traced circle and mark 3 mounting locations. Insure the stamped arrows are pointing inward
    - Drill 1/8 diameter pilot holes at each screw location. Make sure to drill into the stud
    - On the stud mount side, attach the secure mount flange to the wall using the 3 screws and tighten until secure
    - If the second mounting location is over a stud, repeat steps 6-8 and go step 15. If a stud is not available, use the provided SMA and continue to step 9
    - Center 2nd Secure Mount flange in 2nd traced circle and use pencil to mark the center hole. Use 1 ‚¼¢‚¬ hole saw and drill hole at marked location
    - Insert SMA guide into drilled hole
    - Connect pull tab to SecureMount¢€ž¢ anchor
    - With pull tab up, insert the anchor all the way into the hole in the wall
    - Pull back on the pull tab and disconnect it from the anchor
    - Install Secure Mount flange by tightening SMA screw
    - With covers in place as shown, place bar over Secure Mount flange and tighten all set screws
    - Snap on covers over the flanges

Warranty

Limited Lifetime Warranty
