Lafayette Gollehon Extendable Goniometer

Lafayette Gollehon Extendable Goniometer

Authorized Retailer Badge

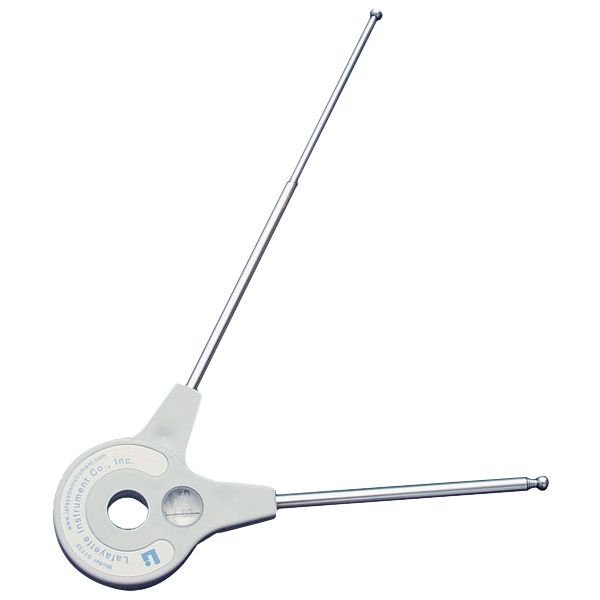

Lafayette Gollehon Extendable Goniometer features a dual scale, 1° increments, extendable and retractable arms, magnified reading window, as well as a compact, lightweight, and portable design. The dual scale of 0-180° and 180-0° is magnified four times, improving the accuracy of the reading, thus, reducing the chance for error. Its lightweight ABS plastic construction will ensure continued and long lasting use.

Item # Desc Pkg Price
1135 Goniometer, Extendable 4-1/2 to 18 inches Each


  • Lafayette Gollehon Extendable Goniometer has chromium plated brass extendable arms
  • Arms can extend to 28.00 inches to measure large joints and retract to 8.0 inches to measure all but the smallest joints
  • Length of the extendable arms allows it to lie over anatomical bony landmarks
  • Total collapsed length: 8.0 inches
  • Total extended length: 28.00 inches
  • Housing diameter: 2.5 inches
  • Thickness: 0.8 inches
  • Weight: 0.2 lbs
  • Arm rotation: 360° (both directions) Resistance swivel

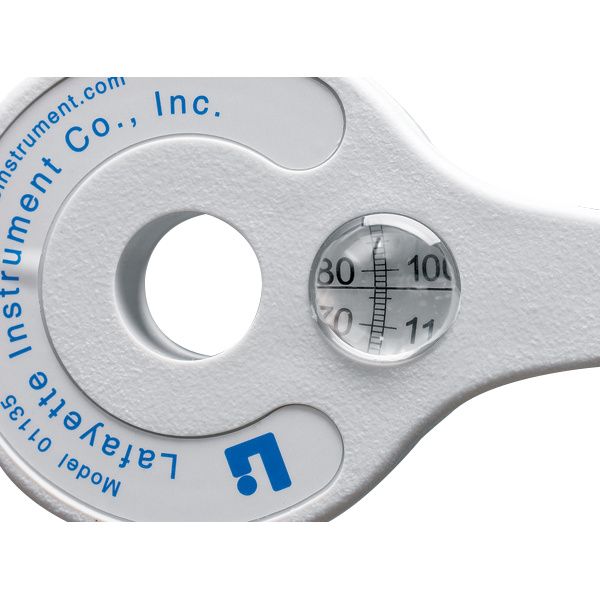

  • Lens magnification: 4x
  • Index dial: dual scale 0-180° and 180-0° in 1° increments
  • Housing: Gray ABS Plastic
  • Positioning see thru hole: 0.68 inches diameter
