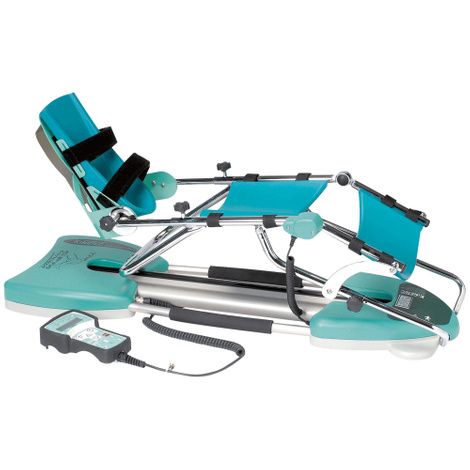

Kinetec Spectra Knee CPM Machine

Kinetec Spectra Knee CPM Machine

Brand/Manufacturer: KINETEC USA
Authorized Retailer Badge

Kinetec Spectra Knee CPM (Continuous Passive Motion) Machine is an unbeatable combination of good looks and mechanical innovations. The entire spectrum of needs for knee patients can now be addressed with a carriage that accommodates all patients of age eight to 80 without any additional accessories. The machine is exceptionally easy to carry and offers quick set-up. The anatomically correct system increases the comfort of the patient and decrease the point of pressure.

Kinetec Spectra Knee CPM Machine Highlights

  • Easy to carry
  • Increases the Comfort
  • Decreases the point of pressure
  • A spray oil can be used on these joints to lubricate.

Item # Desc Pkg Price
929392 Spectra Knee CPM Machine Each


  • Kinetec Spectra Knee CPM Machine includes comfortable, easy to apply patient pad kit
  • Long-life DC motor and screw-drive mechanism for years of reliable performance
  • Broad bearing surface for improving stability
  • Detachable remote control facilitates maintenance
  • Possibility to block the adjustment of the parameters
  • Large LCD screener
  • Internally contained medical grade transformer eliminates handling extra components
  • Lightweight and exceptionally easy to carry
  • 10" wide carriage accommodates all patients
  • Exclusive load reverse ensures patient protection when excess force is exerted on the joint
  • Sleek design incorporates dual carry handles - from either side
  • Comfortable, easy-to-apply patient pad kit included
  • Patient lock-out prevents accidental program changes and potential injury
  • Waterproof digital hand control that snaps conveniently into the foot support
  • Pause setting allows 15 minutes of rest at flexion or extension
  • UL/C-UL assures compliance to the highest standards
  • Also available (sold separately):
    - Sammons Centura Elbow Module (code- 553335)

More Information

Treatment modes: -
- Warm-Up: Warm-up offers the patient a gradual progression to the pre-set full ROM
- Modulation: Modulation allows for manual setting of the ROM end-point based on patient tolerance
- ROM By Pass: Allows bypassing the pre-set ROM
- Session time: Displays actual machine run time
- Program: Set up to 16 customized programs


Particular Dimensions
Range of Motion (-10°) to (120°)
Weight 12kg (26 pounds)
Length 37" (94cm)
Full Leg Size 28" to 41" (71cm to 104cm)
Tibia 15" to 23" (38cm to 58cm)
Femur 13" to 18" (33cm to 46cm)
Wide Carriage 10"
Speed  from 45°/minute to 155°/minute.
Height 33cm (13 Inch)
Maximum user weight 135 KG
Patient Sizing 1,45m to 1,95m (57 to 77 Inch)
  • Full leg: 71 to 99cm (30 to 39 Inch)
  • Tibia: 38 to 53cm (15 to 21 Inch),
  • Femur: 33 to 46cm (13 to 18 Inch).
  • With paediatric foot plate (in option)
    -Full leg: 53 to 109cm (21 to 43 Inch)
    -Tibia: 20 to 56cm (8 to 43 Inch)
Voltage 100 to 240 Volts 50/60Hz
Electrical power 20W
