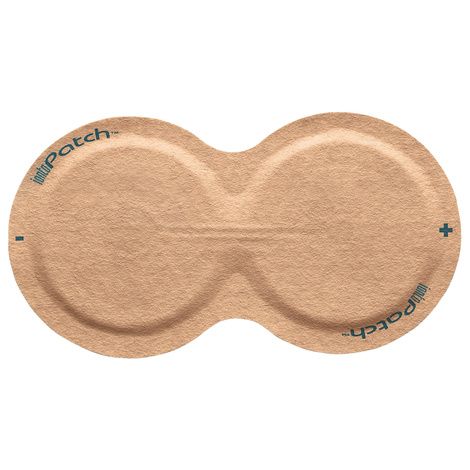

IontoPatch Electronic Transdermal Iontophoretic Drug Delivery System

IontoPatch Electronic Transdermal Iontophoretic Drug Delivery System

Brand/Manufacturer: TEIKOKU PHARMA USA
  • FSA Approved

IontoPatch Electronic Transdermal Iontophoretic Drug Delivery System is used primarily by physical therapists, sports medicine professionals and occupational therapists for site-specific therapy to treat a variety of conditions. It is a non-invasive alternative to injection. Self-contained, innovative, built-in battery produces a low-level electric current to carry drug molecules non-invasively across the skin and to underlying tissue. IontoPatch shuts off drug delivery automatically when the prescribed dose has been administered.

Item # Desc Pkg Price
13-5220 IontoPatch 80 Each
13-5223 IontoPatch Stat Each


  • IontoPatch Electronic Transdermal Iontophoretic Drug Delivery System is an extended time-released electronic transdermal (iontophoretic) drug delivery medical device
  • Single-use and disposable
  • Wrappable, compressible, weight bearing (treats foot conditions), withstands vigorous activity/exercise
  • Since there are no external batteries or wires, patients are able to return to their daily activities wearing the patch and receiving time-released iontophoresis
  • Flexible and breathable material easily conforms to a variety of anatomical sites to ensure complete contact
  • Advanced, hypoallergenic adhesive technology
  • Medication is applied to the appropriate electrode pad
  • Appropriate for both acute and chronic conditions
  • Self-contained wireless technology eliminates need for external batteries or wires
  • Technician applies medication directly to the IontoPatch electrode
  • More drug delivered and remains localized
  • Thin internal battery adds no width to the patch
  • More cost-effective and less time consuming
  • No charging station, dose controller or phoresor required
  • 6 treatment kits per box (patch, saline vial, alcohol prep)
  • IontoPatch 80:
    - Designed to treat most anatomical areas, including elbows, knees, wrists, feet and shoulders, in a 14-hour average patient wear time
    - Lowest current to treat patients with sensitive or fair skin, including the elderly
  • IontoPatch STAT:
    - Treats patients who require or desire shorter wear time
    - Designed to treat most anatomical areas, including elbows, knees, wrists, feet and shoulders, in a 4-hour average patient wear time
  • IontoPatch SP:
    - Designed to adhere and contour to small anatomical areas like fingers and Achilles
    - Designed to treat smaller anatomical areas, including fingers and Achilles tendon in a 14-hour average patient wear time

More Information

1 . Prepare Site to ensure best adhesion.

  • Clip body hair - do not shave.
  • Clean area with soap and water - dry thoroughly.
  • Do not use alcohol or an alcohol wipe to clean the skin prior to patch application. If cleaning is necessary, use soap and water.

2. Fill Electrodes with approximately 1.0 ml of medication and/or saline.

  • Do not overfill. Saline vial enclosed contains more than 1.0 ml. Do not use entire contents of vial. Start at center of pad and fill toward outer edge leaving 3 mm unfilled around perimeter of pad to keep liquid from contacting adhesive.
  • Add positively charged medication (cationic) to positive electrode.
  • Add negatively charged medication (anionic) to negative electrode.
  • If single medication is used, fill alternate electrode with saline (0.9%NaCl).

3. Position Joint midway through full range of motion to ensure adhesion.
4. Place Patch in desired location with medication electrode over treatment site.
5. Secure Patch by running finger around perimeter and outer ridge only.

  • Do not press center of electrodes during initial application. Pressing the center dispenses liquid and compromises adhesion.
  • Wrap over patch when adherence is in question: difficult area to adhere to, oily or dry skin, being worn during significant activity or exercise.

6. Patch Wear Time:

  • Delivery time is dependent upon individual patient skin resistance.
  • For the average patient, dosage delivery will be complete in approximately 8 hours.
  • The rate of drug delivery will be substantially reduced after 12 hours. Remove the patch after 12 hours.

7. Remove Patch:

  • To minimize skin irritation, remove the patch gently while thoroughly soaking with soap and water. Do not pull patch off while dry.
  • Use moisturizing lotion following patch removal.
  • Allow a minimum of 24 hours between patch removal and the next patch application.
  • Where possible, vary the location of adhesive contact to skin for alternate patch applications.



IontoPatch 80

IontoPatch SP

IontoPatch STAT

Active area 15.5 cm2 8.0 cm2 12.0 cm2
Dosage 80 mA-min 40 mA-min 80 mA-min
Fill volume 1.2 - 1.6 cc 1.2 - 1.6 cc 1.2 - 1.4 cc
Wear time 14 hours 14 hours 4 hours
