HealthCraft Wood Wall Plate

HealthCraft Wood Wall Plate

Authorized Retailer Badge
  • FSA Approved

HealthCraft Wood Wall Plate allows the installation of the PT Rail without having to open walls and create structural reinforcement. Simply attach the Wood Wall Plate on the outside of the wall directly into wood backing. The Wall Plate features pre-drilled holes reinforced with T-Nut fasteners to allow easy install of the PT Rail, and is unfinished to allow increased customization to match the bathroom.

Key Points of Wood Wall Plate:

  • Easy to install
  • Improves security
  • Water resistant
  • Comes with pre-drilled holes

Item # Desc Pkg Price
PT-WP-WD 19"W x 22.75H" x 0.7"D Each

HealthCraft Wall Plate Features

  • Wood Wall Plate should only be used to mount a P.T. Rail, when mounting the P.T. Rail to a wall, place the Wall Plate between the P.T. Rail and the wall
  • Comes with 6 pre-drilled holes and T-Nut fasteners for easy installation
  • Unfinished to allow for easy customization to match bathroom
  • Can be painted or stained to suit the users environment
  • Allows for rail to be mounted at 1 of 3 fixed widths (reverse for third location)
  • Rail height must be determined at time of installation
  • Material: Baltic 11-ply wood
  • Also Available (Separately):
  • -

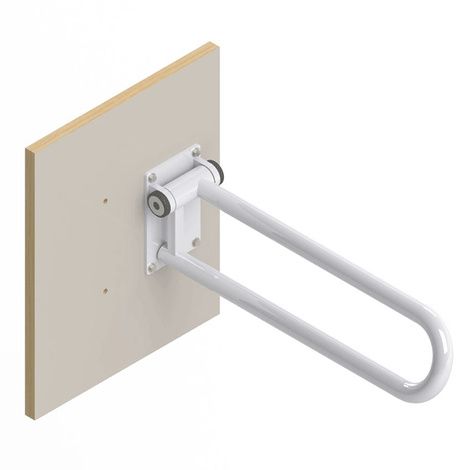

  • Note: Image shown with PT Rail which is not included

Installation Instructions of Wood Wall Plate

  • Determine desired location of P.T.Rail on wall. The Wood Wall Plate must extend over and secure to structural wood studs (inside the wall) for proper installation.There are 2 sets of pre-drilled holes for mounting convenience of the Wood Wall Plate, depending on location of toilet in relation to wood studs. Plate can be reversed to accommodate installations on opposite side of toilet. Extra holes can be added to mount the Wood Wall Plate to wood studs. If extra holes are required, use P.T.Rail as drilling guide. NOTE: All extra holes must be 1.5" / 38mm from all edges.
  • Install T-Nuts (x4) into back of Wood Wall Plate. Use 3/8" bolts and P.T.Rail on front side to pull T-Nuts tight into back of Wood Wall Plate. Once T-Nuts are secured, remove P.T.Rail from Wood Wall Plate.
  • Secure Wood Wall Plate to wall using appropriate fasteners (not included).
  • Tighten bolts to secure P.T.Rail in place.
  • Install vinyl caps to cover bolt heads.
