HealthCraft P.T. Rail

HealthCraft P.T. Rail

Authorized Retailer Badge
  • FSA Approved

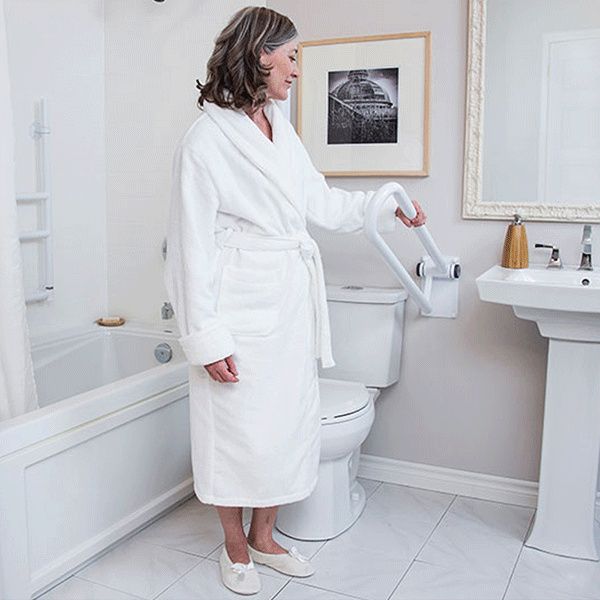

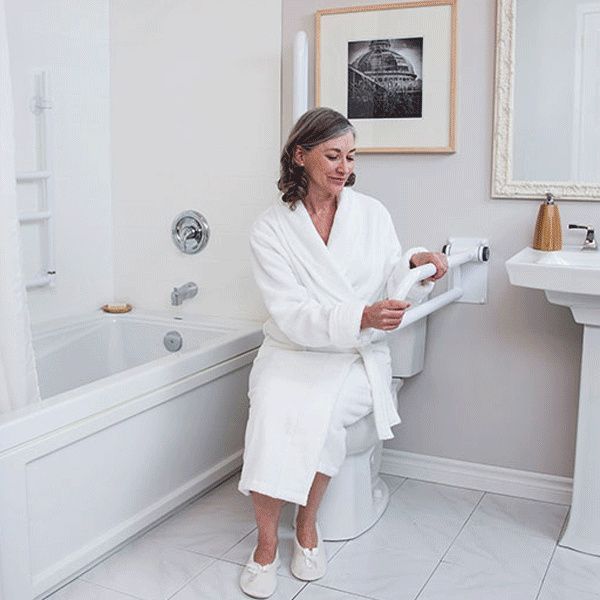

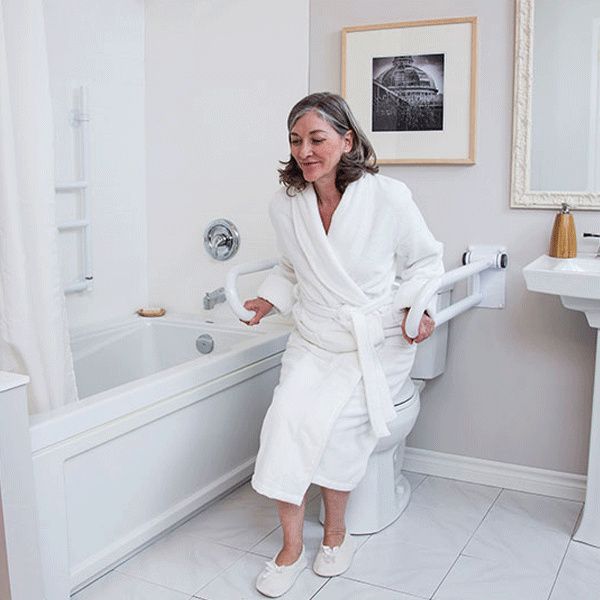

HealthCraft P.T. Rail is the perfect toilet safety rail to provide support and comfort during transitional movements. Unlike other bathroom safety rails, the PT Rail is designed with an innovative offset rail to avoid wrist strain when user is sitting down or pulling up from a seated position. The PT Rail is also easily stored, simply lift the rail until it is flush against the bathroom walls. The toilet safety rail also features strong compression hinges to keep the rail from falling, giving user support and security even when the rail is halfway up.

HealthCraft P.T. Rail Key Points:

  • Easy to store
  • Easy to install
  • Provides rigid support
  • Offset rail design
  • Weight Capacity: 400 lbs

Item # Desc Pkg Price

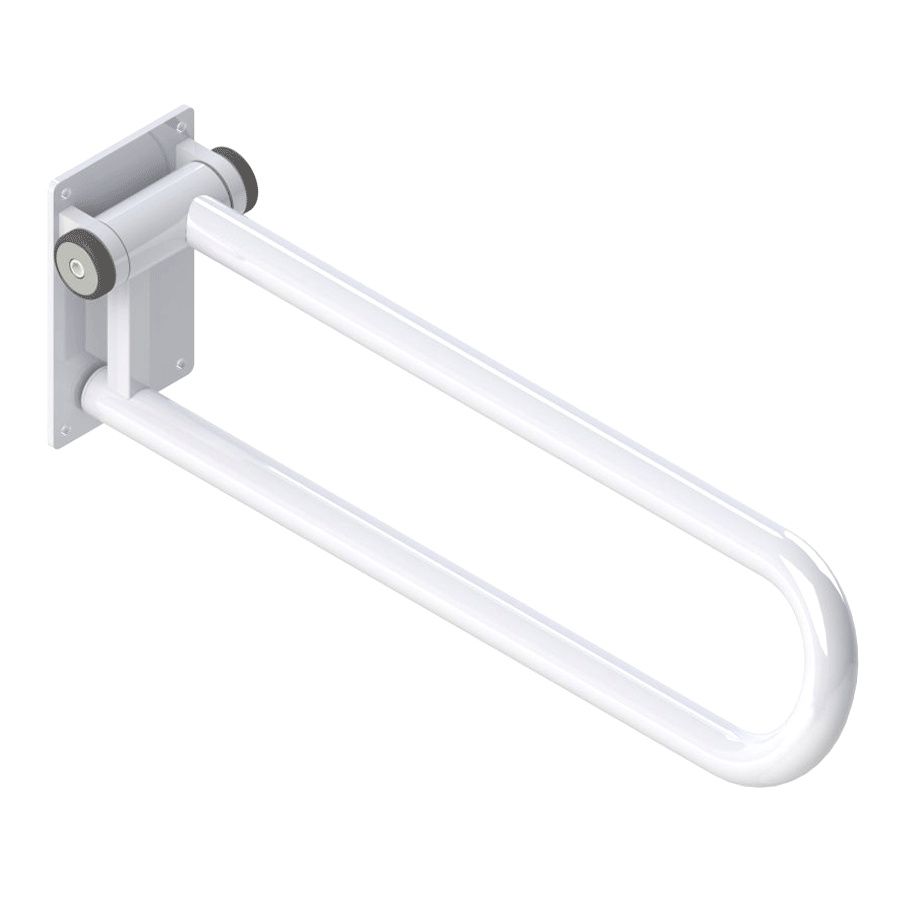

PT-WR28L-PCW Left, 28" (71cm), Powder Coat White Each
PT-WR28R-PCW Right, 28" (71cm), Powder Coat White Each
PT-WR32L-PCW Left, 32" (81cm), Powder Coat White Each
PT-WR32R-PCW Right, 32" (81cm), Powder Coat White Each

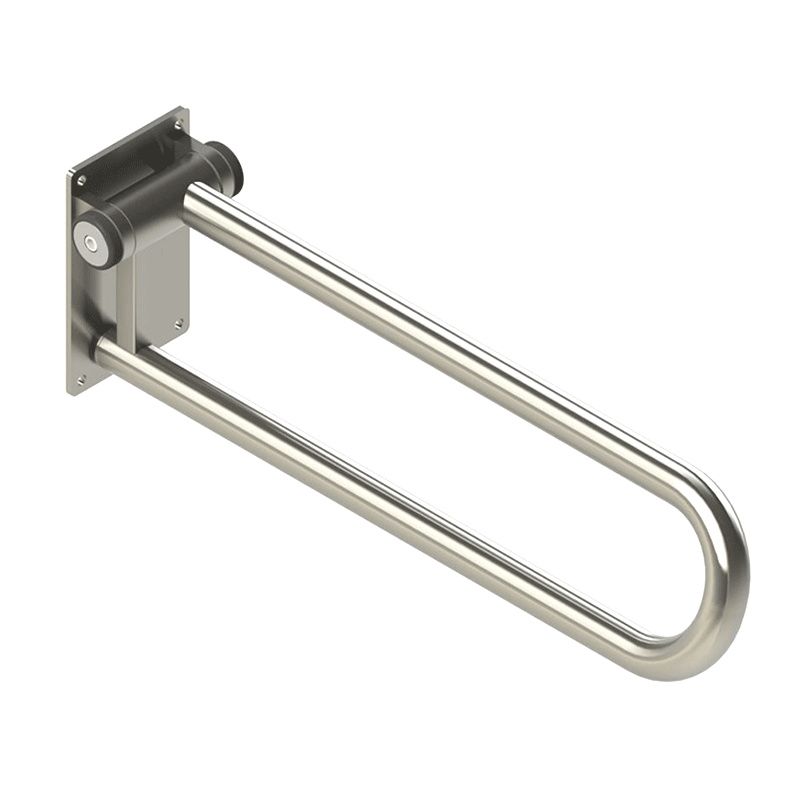

PT-WR32L-SS Left, 32" (81cm), Stainless Steel Each
PT-WR32R-SS Right, 32" (81cm), Stainless Steel Each
PT-WR28L-SS Left, 28" (71cm), Stainless Steel Each
PT-WR28R-SS Right, 28" (71cm), Stainless Steel Each

HealthCraft P.T. Rail Features

  • Prevent Wrist Strain:
    - Has an offset rail design which allows for improved use of the lower rail and helps to prevent wrist strain when reaching for the lower rail
  • Convenient And Safe:
    - Easily folds up to store out of the way and will not accidentally fall down causing an impact injury
  • Unmatched Sturdiness:
    - Machined, precision, tension fit hinge creates stable, rock solid support
    - A proven rail designed to suit home or institutional use
  • Click here for Instruction Manual

Installation Instructions Of P. T. Rail

  • Hold P.T. Rail in desired location and ensure unobstructed rail travel in all positions, and the space above rail is adequate to fold.
  • Using wall plate a template, mark off hole locations.
  • Drill pilot holes appropriate for fasteners.
  • Secure P.T. Rail to wall using appropriate fasteners.

P.T. Rail Installation Warnings:

  • P.T. Rail must be installed to walls that are structurally sound. Add wood blocking if required.
  • If installation into concrete wall is required, we recommend sleeve or wedge type anchors suitable for floor construction.
  • Do not install if structure behind wall is unknown.
  • Do not install into metal studs.
  • Only use rail for assistance in down position.
  • Pinch point between rail and wall plate.
  • Rail and bathtub are slippery when wet.
  • Supplied fasteners for wood structure only (minimum thread engagement 2" / 51mm).
  • If using other fasteners, ensure screw retention force rating at least 600lbs/272kgs.




Rail Diameter 1.50" / 38.1mm (ADA Compliant)
Rail Length 28” / 711mm and 32”/813mm
Wall Plate 5.5 x 9” / 140 x 229mm
Wall Plate Mounting Holes .375” / 9.525mm
Installation Hardware/Fasteners Fasteners must be suitable for substrate. We include lag bolts (1/4" x 3" length) for wood constructions.
Fasteners Exposed or Concealed Exposed
Commercial Use Yes
Residential Use Yes
Water Resistant Yes
Rust Resistant Yes (Only on Stainless Steel)
