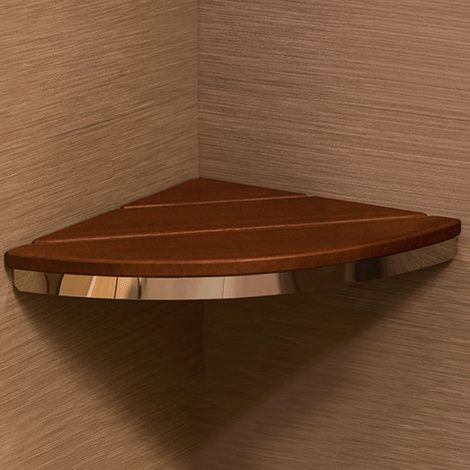

Key Features of Invisia Shower Seat
- Bamboo Seat:
- Sustainable, hypoallergenic and naturally resistant to moisture, temperature and bacteria
- Frame is made from durable, rust, resistant aluminum
- Each slat is finished with Rubio Monocoat, an extremely durable 2-part natural oil finish that does not contain volatile organic compounds (VOCs) or other harmful chemicals
- Only, contact with direct sunlight causes the seat to weather over time (similar to other woods)
- Supports up to 500lbs (227kgs) when installed to structural wood backing
- Solid construction and mounting
- Hidden mounting brackets
- Decorative metal trim
- Contents:
- Corner Seat
- Wall Bracket (x2)
- Metal Trim
- 10 x 2" Wood Screw, S/S (x8)
- Lock Washer, S/S (x8)
- Instruction Manual
Installation Instructions for Corner Shower Seat
- Mark of the desired location for top surface of seat
- Wall bracket holes should be 1-7/8" / 48mm lower than the top surface of the seat. Use level to mark center line
- Untighten screws to remove the metal trim. This will allow better access to the mounting holes of the wall brackets
- The wall brackets are designed to be outwardly adjusted to accommodate corners that are slightly greater than 90 degree
- To ensure both wall brackets make full contact with the walls, untighten screws and shift wall brackets accordingly
- Position bracket holes over the center line and mark locations
- Notch the tile with the center punch
- Drill pilot holes for fasteners
- Fasten the Corner Seat to the wall using lock washers and appropriate fasteners and waterproofing. Inspect hardware regularly, and tighten if required
- Re-install metal trim onto the bottom of the seat
Specification
|
Options
|
Specification
|
| Material |
Stainless steel |
| Finish/Color |
Polished Chrome (CP), Brushed Stainless (BS), Powder Coat Bronze (ORB) |
| Weight Capacity |
500lbs / 227kgs |
| Seat Width |
18.5" (470mm) |
| Seat Depth |
18.5" (470mm) |
| Installation Mechanism |
Must screw to wood backing behind wall |
| Installation Hardware/Fasteners |
10 x 2" (51mm) length, stainless steel wood screw (x4) |
| Fasteners Exposed or Concealed |
Concealed |
| Commercial Use |
Yes |
| Residential Use |
Yes |
| Water Resistant |
Yes |
| Rust Resistant |
Yes |
Warranty
Limited lifetime warranty
Products are covered by a limited lifetime warranty against defects in materials and workmanship for the original purchaser. Warranty excludes products that have been damaged through misuse, accidental damage, alteration, normal wear and tear, wood material and stain, or the use of corrosive or abrasive cleaning products.
