HealthCraft P.T. Rail Floor Mast

HealthCraft P.T. Rail Floor Mast

Authorized Retailer Badge
  • HyGiene Products
  • Non Returnable
  • FSA Approved

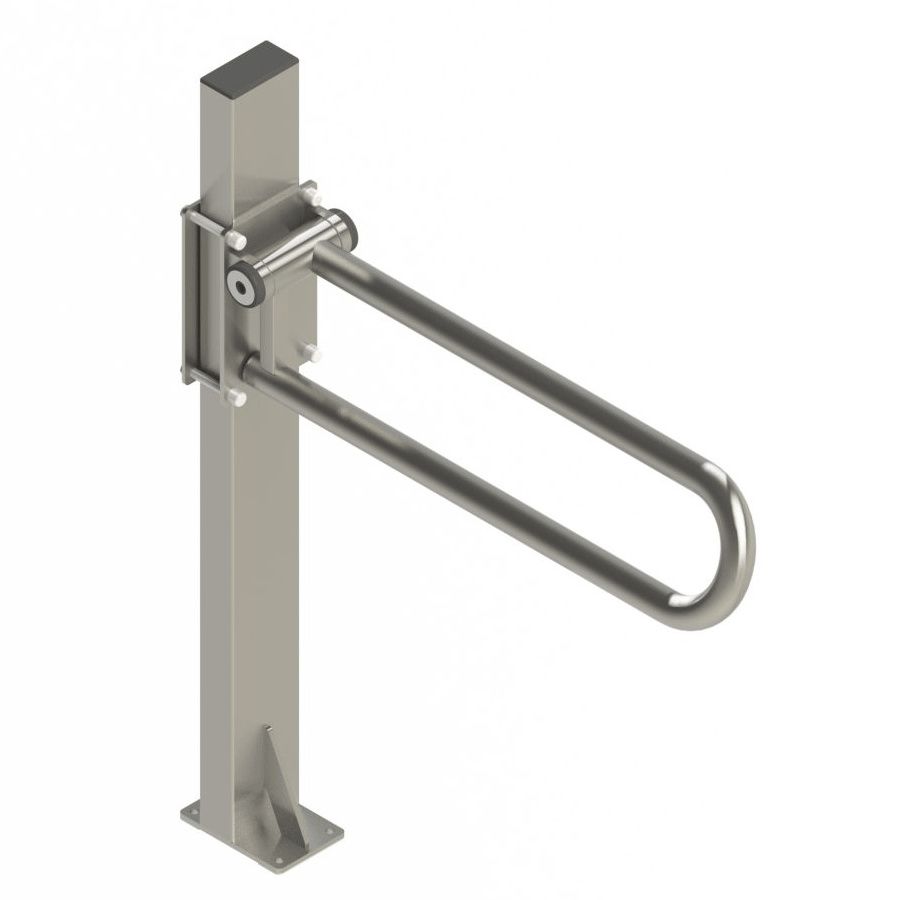

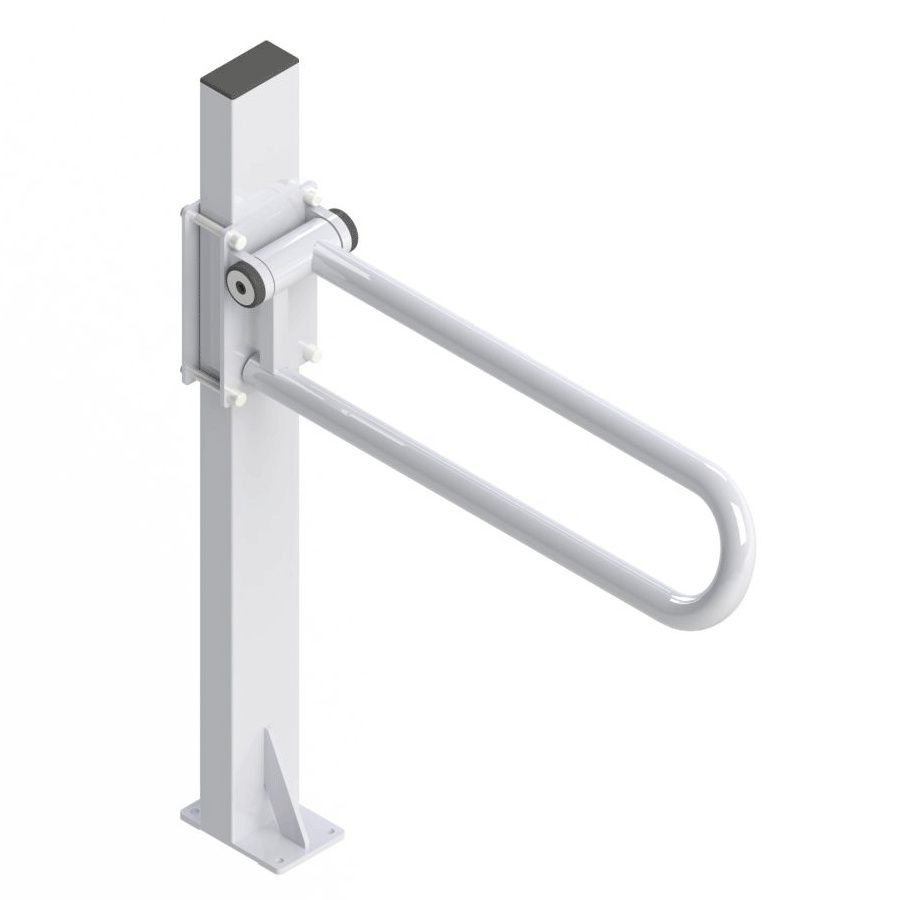

HealthCraft P.T. Rail Floor Mast is a floor mounted, rectangular, vertical post which can be used to mount the P.T. Rail when mounting on a wall is not an option or if the rail needs to be placed away from a wall. It provides a stable base for the rail so that users may safely and securely lead a more independent lifestyle. It can be height adjusted on the Mast and comes in Powder Coat White and Stainless to match both finishes of the P.T.Rail.

Floor Mast Highlights:

  • Floor mounted
  • Flexible mounting height
  • Solid construction
  • Secure
  • Adaptable
  • Versatile

Item # Desc Pkg Price
PT-WRM-PCW White (P.T Rail Not Included) Each
PT-WRM-SS Stainless Steel (P.T Rail Not Included) Each

P.T. Rail Floor Mast Features

  • Flexible:  Allows installation of P.T.Rail to this floor mounted mast in situations where wall mounting of the rail is not possible or desirable
  • Height Adjustable: Rail is height adjustable along the full height of the floor mast
  • Greater Installation Flexibility: Floor mast can be installed away from the wall to offer greater rail distance from the wall.
  • Secure: Strong alloy steel construction insures a secure feeling of the rail
  • Adaptable: Unique clamping system permits setting the rail height (top rail between 31" - 36" (79 - 91cm) from floor level
  • Versatile: Accepts both fixed and folding P.T. Rail Models
  • Wall Embedded Floor Mount: Floor mounted column installs behind the wall during construction
  • Rail height is 33" (84cm) from floor to top rail
  • Zinc coated alloy steel
  • Accepts both fixed and folding P.T. Rail Models
  • P.T. Floor Mast does not come with a P.T. Rail
  • Weight capacity: 400lb (181kg)

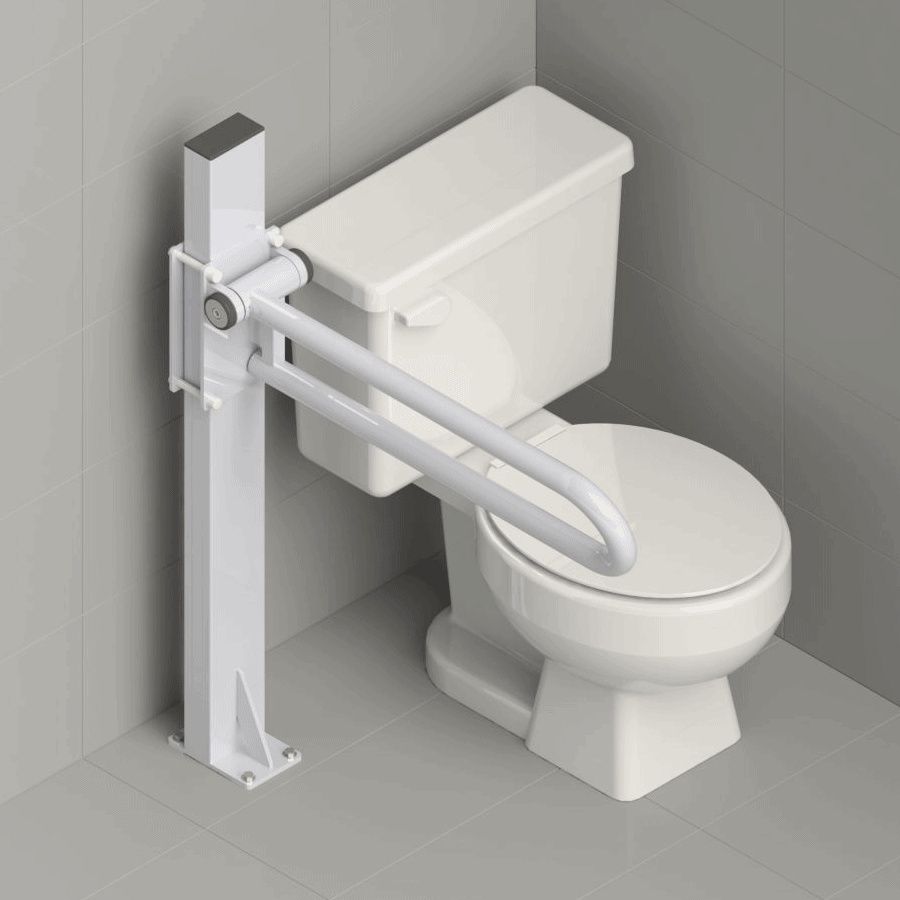

  • Note: Image shown with P.T. Rail, which is not included

Floor Mast Installation into Wood Structure

How to Install Floor Mast into Wood Structure?

  • Secure mast to floor using appropriate fasteners.
  • Attach the clamp plate to the back of the P.T.Rail.
  • Slide clamp plate with P.T.Rail over top of the mast.
  • With P.T.Rail at desired height, tighten bolts to secure in place.
  • Install vinyl caps to cover bolt heads.
  • P.T. Rail Floor Mast Instructions
  • P.T. Floor Mast Specifications

Floor Mast Installation Warnings

  • Mast must be installed to floors that are structurally sound.
  • Ideal if mast can be aligned and secured directly to floor joist.
  • If desired installation location does not have adequate structure, add wood blocking.
  • If installation into concrete floor is required, we recommend minimum 5/16" sleeve or wedge type anchor.
  • CAUTION - do not install if structure under floor is unknown.




Floor Mast Height 39/99cm. P.TRail height can be set between 31-36"/79-91cm from floor
Floor Mast Plate 4.25 x 6.25" / 11cm x 16cm with 4 fastener holes (3/8 diameter)


Wall Plate 5.5 x 9/14 x 23cm with fastener holes (3/8 diameter)
Material Alloy steel or Stainless steel
Weight Capacity 400lbs/181kg


Limited Lifetime Warranty
