HealthCraft e2 Ceiling Mount Trapeze

HealthCraft e2 Ceiling Mount Trapeze

Brand/Manufacturer: HEALTHCRAFT PRODUCTS INC.
Save
Authorized Retailer Badge
  • Latex Free

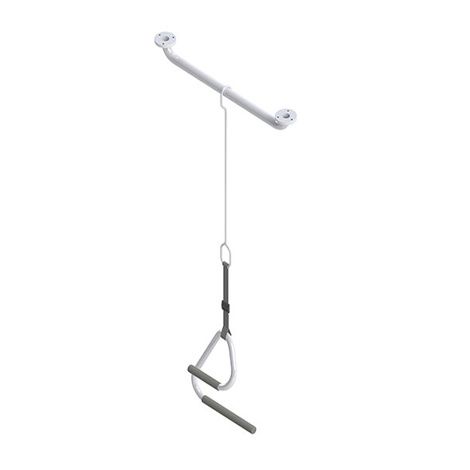

HealthCraft e2 Ceiling Mount Trapeze is designed for bed assistance and safety. The e2 Ceiling Mount Trapeze is an over-bed trapeze system that secures to the ceiling. The trapeze handle features two offset ladder rungs to allow for improved use of arm strength and increased comfort. Additionally, it can slide sideward / laterally on the ceiling mounted grab bar to store out of the way when not in use. The e2 Ceiling Mount Trapeze is intended for moderate vertical load bearing to provide sitting and standing support for people with reduced mobility.

e2 Ceiling Mount Trapeze Highlights:

  • Non-slip
  • Latex-free
  • PVC closed foam grip material
  • Anti-microbial powder coat white
  • Two offset ladder rung system
  • Compatible in any ceiling

Item # Desc Pkg Price
STP-CM-24 24" Ceiling Bar Each
$291.66
$216.08
STP-CM-32 32" Ceiling Bar Each
$305.85
$226.59

e2 Ceiling Mount Trapeze Features

  • Redesigned with ergonomic ladder rungs, which has two points of leverage to maximize the strength and easily climb from a lying to a seated position in bed
  • When not in use, the trapeze handle can slide out of the way along the length of the grab bar
  • Mounts directly to structural studs of virtually any ceiling
  • Anti-microbial white powder coat finish (over carbon steel)
  • Available in 24" and 32" lengths
  • Maximizes valuable floor space
  • PVC closed foam grip material
  • Supports up to: 150lbs
  • Instruction Manual

How to Installation e2 Ceiling Trapeze?

  • Mark location of grab bar on ceiling.
  • Drill pilot holes for fasteners.
  • Fasten the grab bar to ceiling using appropriate fasteners.
  • Use flange covers to conceal mounting fasteners.
  • Attach e2 handle thru loop on strap.
  • Attach the metal hook onto the grab bar on ceiling.
  • Adjust strap to appropriate height for trapeze handle.

Specification

Particulars Dimensions
Material Alloy steel
Weight Capacity 300lbs / 136kgs (No more than 150lbs / 68kgs should be exerted on the trapeze system)
Trapeze Handle Diameter 1.0” / 25.4mm
Ceiling Grab Bar 24”/610mm or 32”/813mm
Hook Length 27”/686mm
Strap Range 3-29” / 76.2-737mm
Grip Material Non-slip, PVC closed cell foam (latex free)
Installation Mechanism Must secure to ceiling joists
Installation Hardware/Fasteners #10 x 2"/ 50.8mm length (x6), S/S wood screws (provided)
Fasteners Exposed or Concealed Yes - metal flanges cover mounting screws
Commercial Use Yes
Residential Use Yes
Water Resistant Yes
Rest Resistant No
