HealthCraft Bariatric Advantage Rail

HealthCraft Bariatric Advantage Rail

Authorized Retailer Badge
  • Latex Free

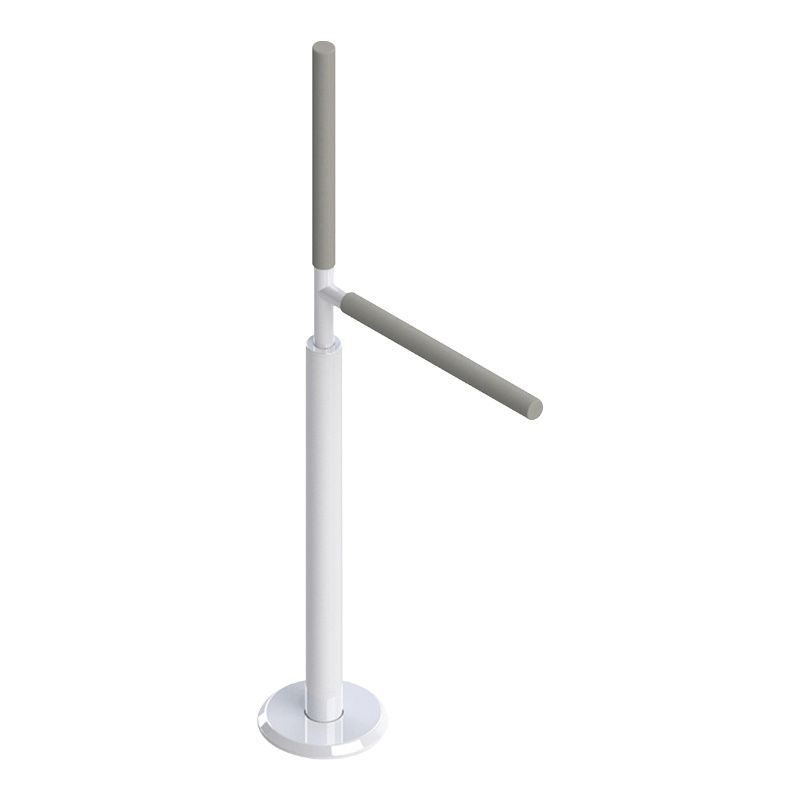

HealthCraft Bariatric Advantage Rail is a floor-mounted support rail that features the innovative pivot and lock technology for improved versatility and stability. The horizontal bar can be lifted, pivoted and lowered to the next locking position around the mast. The Advantage Rail is intended for moderate vertical and horizontal load bearing to provide sitting and standing support for people with reduced mobility. The Advantage Rail mast is installed to a structural floor. Inside the mast is a locking mechanism for the horizontal bar, a castellated collar with 8 grooves (every 45 degrees) to provide a mechanism strong enough to support the user.

Bariatric Advantage Rail Highlights:

  • Heavy duty construction
  • Safe, effective support
  • Reduce caregiver strain
  • Height adjustable
  • Weight capacity: 450lbs



Item # Desc Pkg Price
AR-T-HD Bariatric Rail Each
AR-PT-HD Portable Bariatric Rail Each

HealthCraft Bariatric Rail Features

  • Combination of vertical and horizontal support that allows one-handed operation when moving the bar from one position to the next (i.e. one hand on the pole, one hand on the bar)
  • Simply lift the horizontal bar to unlock, pivot to next position, and then lower it to lock firmly in place (every 45 degrees)
  • All steel construction protected with a durable enamel finish will provide years of service
  • Push or pull on the rail to assist with sitting, standing and moving
  • To help prevent a forward fall, the rail will lock if released
  • Promotes safe and independent movement
  • Maximize the use of available strength while a caregiver supervises
  • Rail is height adjustable to accommodate users needs
  • Floor mounting screws are concealed with cover plate
  • Anti-microbial white powder coat finish
  • When placed properly, it can replace the support of many safety products (i.e. grab bars, toilet safety sides, etc.), which in turn reduces clutter in the space
  • Latex-free, non-slip, PVC closed foam grip material
  • For bathroom, bed, kitchen and living room safety
  • Made of alloy steel
  • Locks ever 45°
  • AR-T-HD
    - Floor mounted pivoting and locking horizontal bar
  • AR-PT-HD
    - Portable model secures and releases from a low profile floor mounted plate, simply remove pole when it is not needed
  • Instruction Manual

Installation Instructions of Advantage Rail

  • Fasten mast to floor with appropriate fasteners for floor construction
  • Lower plate to cover exposed screws at bottom of mast
  • Set height of rail and install sleeve with thru pin
  • Place pivot rail assembly into mast
  • Install top bushing

Note: Product is not intended to support full body weight.




Rail Diameter


Rail Height Range 30" to 38"

Rail length


Weight 23lbs
Weight Capacity 450lbs


1 Year Warranty
