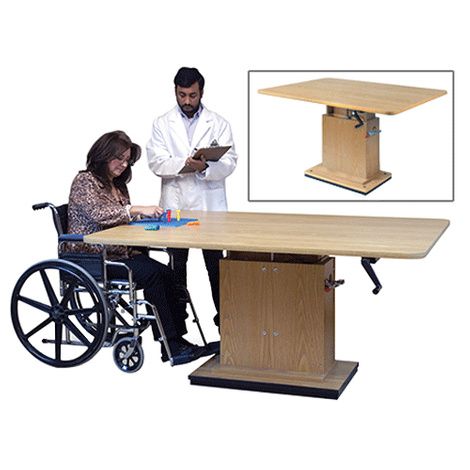

Hausmann Model 4320 Crank Hydraulic Work Table

How to Install Hausmann 4320 Crank Hydraulic Table?

Installation Instructions:

• Tabletop Assembly:
  • Remove all items from packaging and assure all parts and components are accounted for.
  • Carefully crank handle up a few inches making sure to not kink the tubing of the crank assembly.
  • Fasten the brake clamp.
  • Place the tabletop on top of mounting plate
  • Attach the top to the mounting plate with four Machine Bolts and washers.
  • Carefully lift up Crank handle assembly making sure not to kink the tubing and attach the it to the bottom of top with the 3 screws into the predrilled holes under the tabletop.
  • Secure the tubing to the under the tabletop with the loop & screw.
  • NOTE: Allow enough slack to hang below where the tubing is attached.


Operation Instructions:

• To raise table height:
  • Release brake clamps by pulling red brake clamp handles away from the unit.
  • Crank the handle clockwise to raise the tabletop to desired height and retract the handle under tabletop to lock the height in position.
  • Lock brake clamps, by pushing on red locking handle towards the inside of the unit to engage the locking pad in the position.
• To lower table height:
  • Release brake clamps, by pulling red brake clamp handles away from the unit.
  • Crank the handle counter clockwise to lower the tabletop to desired height and retract the handle under tabletop to lock the height in position.
  • Lock brake clamps, by pushing on red locking handle towards the inside of the unit to engage the locking pad in the position.
  • CAUTION: Do not crank the handle when brake is engaged, or damage can occur.
