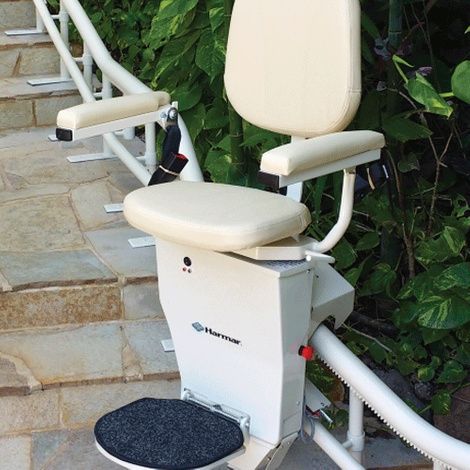

Harmar Helix Curved Stair Lift

Name: Harmar Helix Curved Stair Lift
Brand: HARMAR MOBILITY
SKU: 48813
Price: 21000.00 USD
Availability: InStock

Brand/Manufacturer: HARMAR MOBILITY

Non Returnable

Note: We would require Vehicle Information (Year, Make and Model) and Chair/Scooter information (Make and Model) to process your order. You can email us the information by clicking Here or you can use the Order Comments section while placing the order for this product.

Harmar Calculator: To learn which Harmar lifts are suitable with your vehicle and mobility device? Our Compatibility Calculator can help.

Harmar Helix Curved Stair Lift features a narrow profile that mounts closer to the wall, with tighter bends. Each custom stairlift is unique to the home and stairway it is installed to. This custom design allows the Helix stairlift to have a smaller footprint, a quicker install, and outstanding performance. Perfect for a stairway with a 90-degree turn, 180-degree turn, or even a spiral staircase. The Helix can even be built to accommodate multi-story applications.

Harmar Helix Curved Stair Lift Highlights

Extremely quiet, smooth ride
True-Curve rail with advanced bending technology
Creates smoother turns
Supportive, ergonomic seating
Simple-connect rails and lighter chassis for easy installation

Item# CSL500

ORDERING DETAILS

Total: $23100
Total: $21000

Total: $23100
Total: $21000

Harmar Helix Curved Stair Lift Features

Full-fold armrests - Improved to allow unimpeded transfer from a wheelchair.
Emergency Stop - Repositioned safety stop button on the side for easier access.
True-Curve Rail - Next-generation bending technology allows for smooth, precise bends and turns.
Attractive swivel seating - Supportive, ergonomic design with integrated, retracting seatbelt and a standard swivel mount.
Smooth, quiet ride - True-Curve Rail and quiet motor create an extraordinarily smooth ride and amazingly quiet operation.
Even easier installation - Fewer floor bolts, simple-connect rails, and a lighter weight chassis make Helix easier to install - even by one person.
Narrower profile - Low profile floor mounts and a narrower chassis tuck closer to the wall, saving space and providing a less intrusive installation
Safety Features
- Direction Limit Switches
- Final Limit Switch
- Footrest Obstruction Switch
- Seat Swivel/Cut-off Switch
- Constant Pressure Controls
- Seat Belt
- Safety Edges
- Emergency Stop

Specification

Specifications	Values
Maximum Weight Capacity	350 lbs. (159 kg)
Track (rail) Type	Steel, Powder Coated
Travel	Up to 164(4m)
Average Number of Return Trips per Charge: (varies with load, length)	10
Control in Armrest: (left or right hand operation)	Yes
Lift Mounts to Steps or Wall	Steps
Minimum Folded Width	16" (406 mm)
Minimum Footrest Height	5 (140 mm)
Clear Distance Between Armrests	20.47 23.6 (520 - 600 mm)
Floor to Seat Height	25 (635 mm)
Minimum Wall to Stair Side of Rail	4.7 (120 mm)
Seat	15 (381 mm) x 20.5 (520mm)
Electrical Requirements	100-240 VAC; 50/60 HZ
Operation Power	24V DC Battery
Speed	20 fpm
Incline Limits	62 (1.6m)
Drive System	Rack & Pinion Gear
Safety Design Standards	Complies with ASME A18.1, CAN/CSA B44.1, ASME A17.5

Warranty

2-Year on Components, 1-Year on Batteries
