Harmar Adjustable Threshold Ramp

Harmar Adjustable Threshold Ramp

Brand/Manufacturer: HARMAR MOBILITY
Save
Authorized Retailer Badge
  • Non Returnable
  • Made in USA

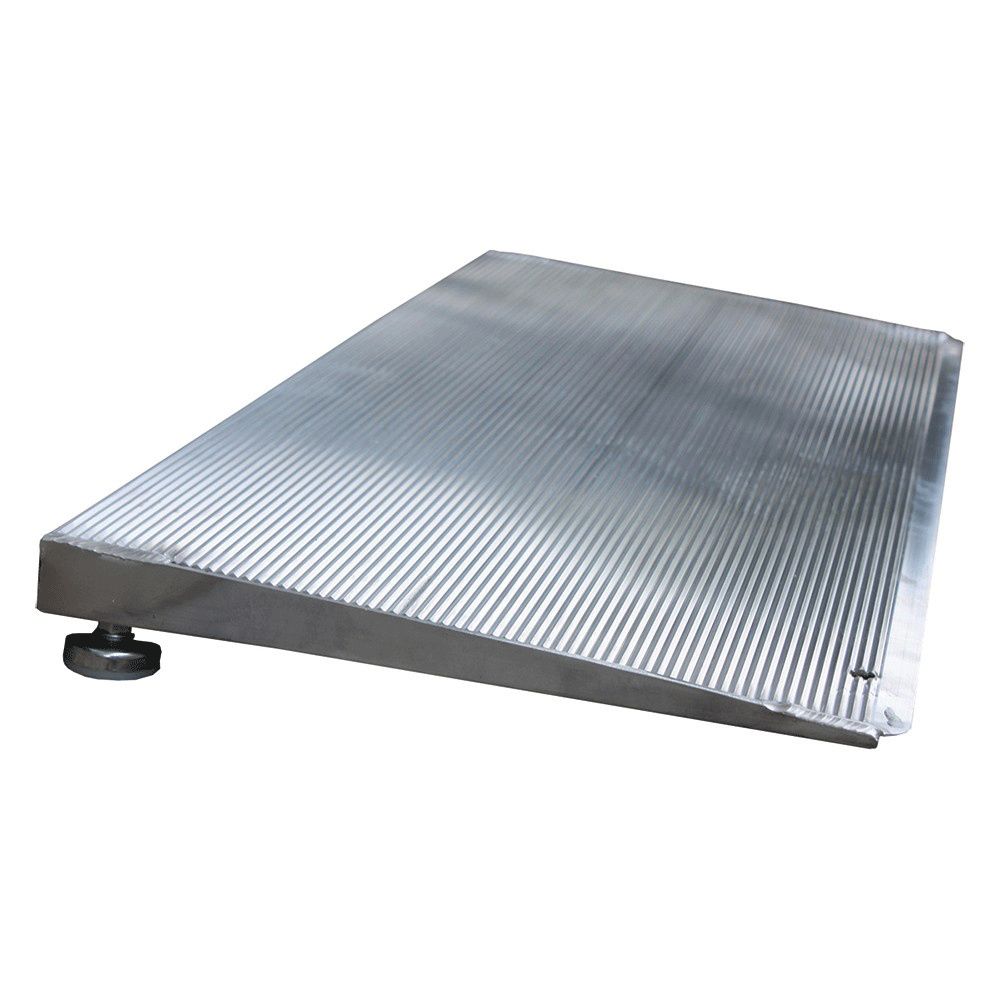

Harmar Adjustable Threshold Ramp has durable welded construction of slip-resistant grooved aluminum to provide stability and durability for years of trouble-free use. This ramp is a convenient and lightweight solution for users of wheelchairs, walkers and canes to safely access entrances such as doorways and raised landings. The unique design with adjustable feet customize fit for thresholds from 2"- 3.5", works with doorways that swing in or out.

Item # Desc Pkg Price
ATH1232 12"L x 32"W Each
$227.49
$175.00
ATH1236 12"L x 36"W Each
$285.79
$200.00
ATH2432 24"L x 32"W Each
$311.99
$240.00
ATH2436 24"L x 36"W Each
$344.49
$265.00
ATH3632 36"L x 32"W Each
$552.49
$425.00
ATH3636 36"L x 36"W Each
$604.49
$465.00
ATH4832 48"L x 32"W Each
$617.49
$475.00
ATH4836 48"L x 36"W Each
$637.50
$510.00

Features

  • Harmar Adjustable Threshold Ramp can be used inside or outside
  • Unique design with adjustable feet customize fit for thresholds from 2" to 3.5"
  • Works with doorways that swing in or out
  • Threshold height: Adjusts 2" to 3.5"
  • Weight capacity: 600lb
  • Free standing
  • Lightweight
  • Non-skid surface

More Information

  • Important information:
    - Harmar ramps are designed to improve access over short heights for wheelchairs, power chairs, and scooters
    - For your safety, a caregiver or aide should be present at all times when using any ramp.
    - For safe loading and unloading, its essential to set up the ramp properly.
    - Ensure that the hook (top end) is pressed firmly against the step or platform before using. Failure to do so may result in the ramp slipping off the step while occupied. When possible, use steel pins provided to lock the ramp in place.
    - Although Harmar portable ramps are lightweight, use safe lifting practices when lifting.
  • Choosing a Safe Ramp Length Harmar strongly recommends that users never exceed a 1-inch rise to 1-foot length ratio for the ramps slope. This ensures that the slope to reach the height required will be appropriate and safe.
  • Safety:
    - Have a qualified assistant present when using this or any other portable ramp Ensure the top of the ramp is secure. The top where the ramp sits on the step or landing must be secure before using. It may be necessary to anchor the top of ramp to the landing surface with the steel pins provided. Follow all chair or scooter manufacturer recommendations for your specific mobility device. NEVER exceed a slope greater than 1-inch rise to 1-foot length
  • How to Unfold a Harmar Multi-Fold Ramp
    - Place the ramp approximately at its length out from the step, van, or platform.
    - Stand the ramp up on end with the open ends down and the handle side toward you.
    - Reach down and lift the first half of the ramp toward the step or landing area and set it down on top of the support.
    - Press the hook firmly against the step.
    - Open top half of ramp.
    - Unfold top half of ramp towards you and again ensure that the ramp hooks are pressed firmly against the landing area.

Specification

Code

Description

    Threshold Hight

Weight

AR510

12"L x 32"W Adjusts 1" to 2" 6lb

AR511

12"L x 36"W Adjusts 1" to 2" 12lb

AR512

24"L x 32"W Adjusts 2" to 3-1/2" 12lb

AR513

24"L x 36"W Adjusts 2" to 3-1/2" 12lb

AR514

36"L x 32"W Adjusts 3-1/2" to 5" 12lb

AR515

36"L x 36"W Adjusts 3-1/2" to 5" 12lb
AR516 48"L x 32"W Adjusts 4" to 6" 12lb
AR517 48"L x 36"W Adjusts 4" to 6" 12lb

Warranty

3 year warranty
