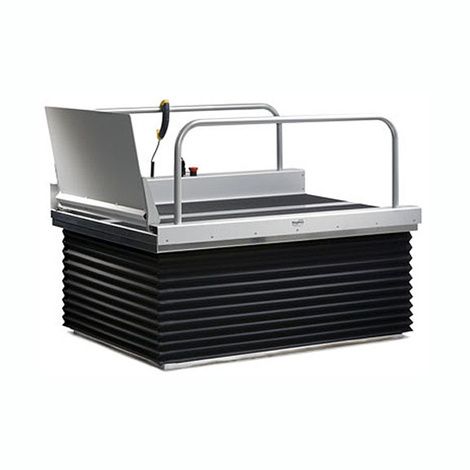

Guldmann Stepless Platform Lift LP1

Guldmann Stepless Platform Lift LP1

Brand/Manufacturer: GULDMANN
Save
Authorized Retailer Badge

Guldmann Stepless Platform Lift LP1 is designed to lift wheelchair users or the walking-impaired over minor height differences of up to 609 mm. LP1 is a small platform lift, often used in places where space is limited. The side exit may be on the left or right side. LP1 is designed for permanent installation indoors and outdoors. For safety of the user the access ramp acts as a gate and there are handrails on both sides of LP1.

Item# 13015

Features

  • Guldmann Stepless Platform Lift can be installed indoors or outdoors
  • Noiseless, stable and secure
  • Simple to install and transport
  • Ideal in acute situations or as a temporary solution
  • CE marked89/392/EEC Machinery Directive
  • EN 60601-1-2 Medical electrical equipment
  • LP1 Lifting Platform is delivered with:
    - Electrically operated access ramp 18" and hand control
    - Safety curtains on all sides
    - Emergency stop
    - Safety bar on 3 sides
    - Transformer 110V
  • LP1 Lifting Platform for recessing is delivered with:
    - Electrically operated access ramp 6" and hand control
    - Safety curtains on all sides
    - Emergency stop
    - Safety bar on 3 sides
    - Transformer 110V

Specification

Particulars

Dimensions

Lifting Height Maximum

500 (609) mm

Lifting Capacity

396lb

Lifting Height Minimum

90 mm

External Measurements

1167/883 mm

Internal Measurements

1167/719 mm

Access Ramp

350/712 mm
