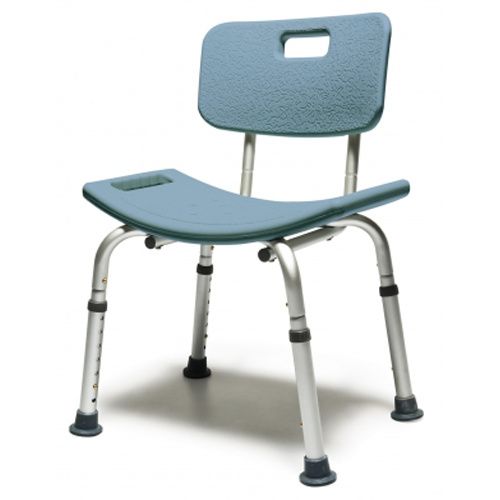

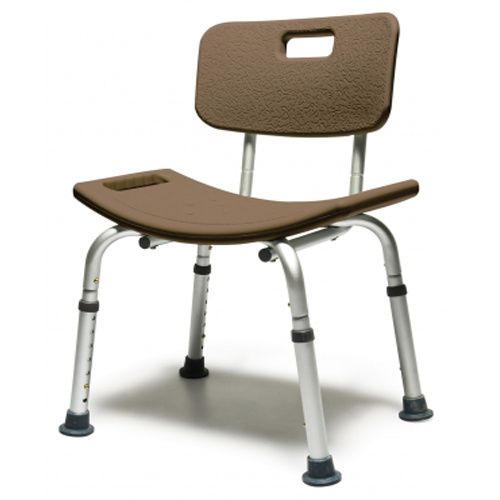

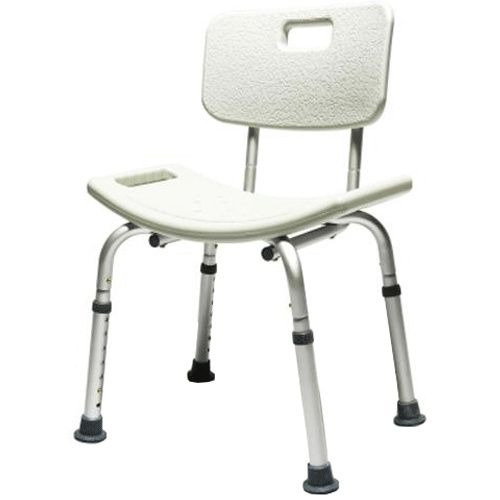

Graham Field Lumex Platinum Collection Bath Seats with Backrest

Graham Field Lumex Platinum Collection Bath Seats with Backrest

  • FSA Approved
  • Made in USA

Graham Field Lumex Platinum Collection Bath Seats are intended for use by individuals who require seating support while bathing or showering. They are designed to be placed fully inside the bathtub or shower. These Bath Seats which come with the anodized aluminum frame is lightweight, durable and rust-resistant having tool Free design available with backrest.

Warning WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

"

 WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov


"

Item # Desc Pkg Price
7921R-1 Standard Grey Each
$116.74
$86.51

Lumex Platinum Collection Bath Seat Features

  • Anodized aluminum frame which is lightweight, durable and rust-resistant
  • Seat height is adjustable in 1" increments
  • Available with backrest
  • Tool Free design
  • Maximum Weight Capacity 350 lb


Graham Field Lumex Platinum Collection Bath Seats Instruction Manual


How To Use Graham Field Bath Seat?

Attaching the legs:

  • Locate the seat frame, place it upside down on a flat, dry surface.
  • Locate the legs.
  • Attach the legs to the seat frame. Depress the locking button at the top of each leg and slide it into the seat frame until the button protrudes from the hole.
  • Repeat step 3 for each leg. Ensure legs are securely installed and all hardware is tight before proceeding.


Attaching the Backrest:


  • Locate the backrest.
  • Attach the backrest to the seat frame. Depress the locking buttons and slide the backrest onto the seat frame until the buttons protrude from the holes.

Note: Ensure legs and backrest are securely installed and all hardware is tight before proceeding.

Adjusting leg height:


  • Push in the adjustment button and move to the desired height position until it clicks into place.
  • Ensure that legs are locked at the same height and all leg adjustment buttons protrude fully through adjustment holes.


Center of Balance During Use:


  • The point where the Bath Seat will tip forward, rearward or sideward is determined by its center of balance and stability, and the center of balance and stability is affected by the users body position and weight distribution.
  • If you fail to heed the following warnings, falling or tipping may occur and could cause severe personal injury.


Maintenance and Cleaning:


  • Check the Bath Seat weekly for signs of damage or cracking. if damage or cracking of any component of the Bath Seat is found, DO NOT use the Bath Seat.
  • To clean the Bath Seat, wash it with soap and water or a mild detergent, then rinse. Ensure that the Bath Seat is rinsed well before use.


Warnings: Some of the mandatory warnings should be kept in mind while using the product.


  • To avoid falling or tipping: have someone help you until you know the balance points of your Bath Seat and how to avoid tipping.
  • Do not put downward weight on one side or corner of the Bath Seat. Do not put downward weight on the backrest.
  • Do not reach or lean if you must shift your weight to do so. ask for help or use a device to extend your reach. Never try to reach an object if you must move forward in your seat and your buttocks do not stay in full contact with the seat. Never lean backward to reach an object.
  • Read and understand these instructions before assembling or using the Bath Seat.
  • If you do not understand any part of these warnings, cautions or instructions, contact a healthcare professional for direction in the use of this product. if the Bath Seat is not properly assembled and adjusted, personal injury and damage to the Bath Seat could result.
  • If components are damaged or missing, contact your graham-Field distributor immediately. DO NOt use substitute parts. Use only lumex replacement parts. Non-lumex replacement parts could cause personal injury and damage to the Bath Seat.


Specification

Particulars

Dimensions

Overall Width

20"

Overall Depth

19"

Seat Width.

20"

Seat Depth .

12"

Minimum Seat Height

14"

Maximum Seat Height

22"

Maximum Weight Capacity 350 lb EVENLY DISTRIBUTED

Warranty

Lifetime limited warranty
