Graham Field Lumex Knock Down Bath Seat

Graham Field Lumex Knock Down Bath Seat

  • Made in USA

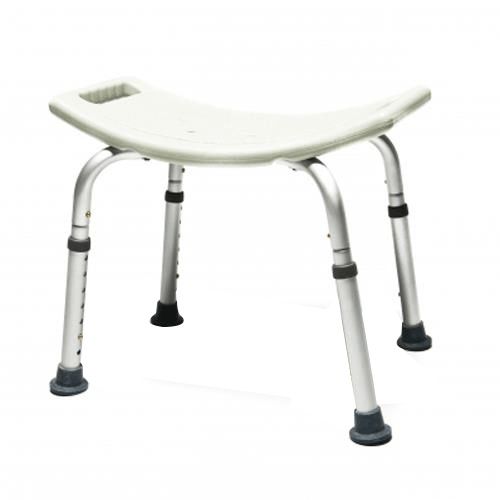

Graham Field Lumex Knock Down Bath Seat is intended for use by individuals who require seating support while bathing or showering. This bath seat is designed to be placed fully inside the bathtub or shower. This Knock-Down Bath seat has an anodized aluminum frame which is lightweight, durable and rust resistant. Having tool Free design the Bath Seat has maximum weight capacity 350 lb.

Warning WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

"

 WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov


"

Item # Desc Pkg Price
7931KD-1 Knock Down Bath Seat Without Backrest Each
$82.95
$61.48

Graham Field Lumex Knock Down Bath Seat Features

  • Anodized aluminum frame is lightweight, durable and rust resistant
  • Seat height is adjustable in 1" increments

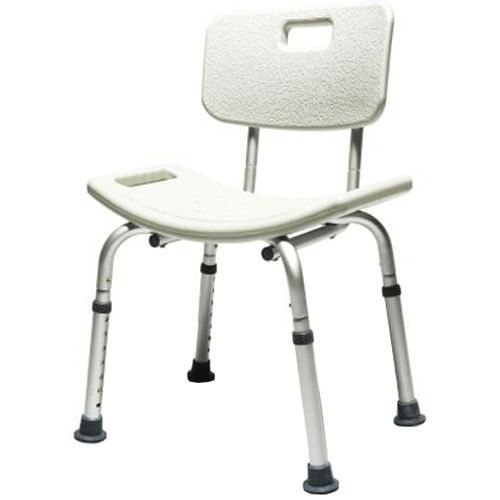

  • Available with or without backrest
  • Tool Free design Push-pin design requires no fastening hand screw knobs
  • Maximum Weight Capacity 350 lb


Graham Field Lumex Knock Down Bath Seat Height Adjustment Manual

Graham Field Lumex Knock Down Bath Seat Height Adjustment Manual 1

Graham Field Lumex Knock Down Bath Seat Operation Instructions

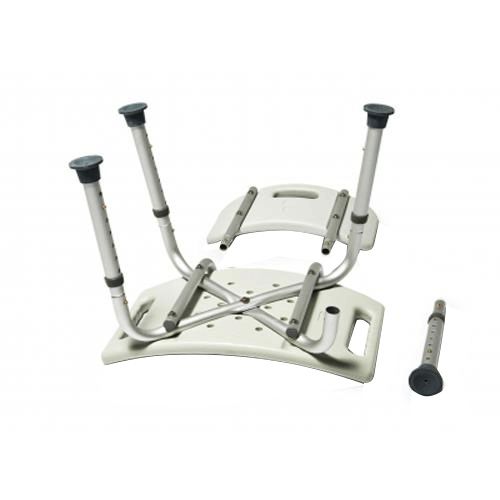

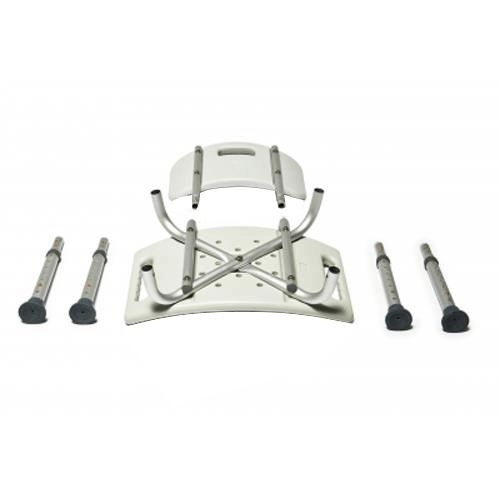

How To Assemble Lumex Bath Seat?

Attaching the Legs:

  1. Locate the seat frame, place it upside down on a flat, dry surface.
  2. Locate the legs.
  3. 3. Attach the legs to the seat frame. Depress the locking button at the top of each leg and slide it into the seat frame until the button protrudes from the hole.
  4. Repeat step 3 for each leg.

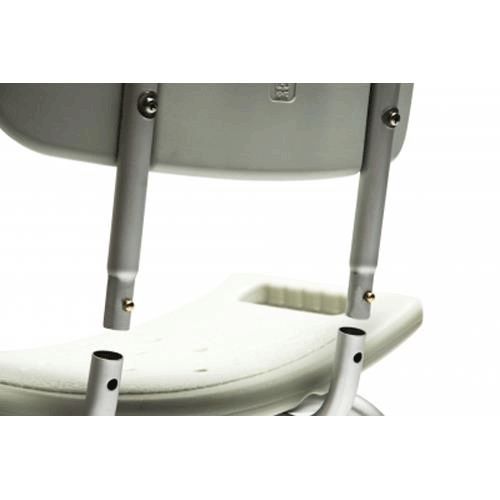

Attaching the Backrest:


  1. Locate the backrest.
  2. Attach the backrest to the seat frame. Depress the locking buttons and slide the backrest onto the seat frame until the buttons protrude from the holes.

Warning: Ensure legs and backrest are securely installed and all hardware is tight before proceeding.


Lumex Knock Down Bath Seat Specification

Particulars

Dimensions

Overall Width

20"

Overall Depth

19"

Seat Width.

20"

Seat Depth .

12"

Minimum Seat Height

14"

Maximum Seat Height

20"

Maximum Weight Capacity 350 lb EVENLY DISTRIBUTED



Warranty

Limited lifetime warranty (3 years)
