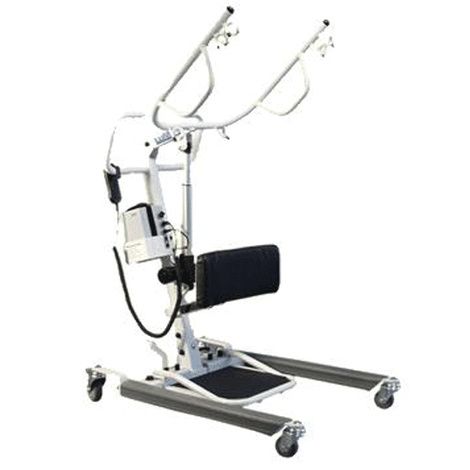

Graham-Field Lumex Easy Battery-Powered Sit-to-Stand Lift

Name: Graham-Field Lumex Easy Battery-Powered Sit-to-Stand Lift
Brand: GRAHAM-FIELD HEALTH PRODUCTS, INC.
SKU: 11379
Price: 2822.68994140625 USD
Availability: InStock

Brand/Manufacturer: GRAHAM-FIELD HEALTH PRODUCTS, INC.

Made in USA

Graham-Field Lumex Easy Battery-Powered Sit-to-Stand Lift is designed for patients who have difficulty standing up on their own from a seated position. This STS Lift has a heavy-gauge steel construction with white powder-coated finish and rubber-coated low base legs which protect furniture and walls. The spreader bar provides various hand-hold locations for the patient and accommodates various sling slyles.

Lumex Easy STS Lift Highlights:

Adjustable knee pad
Large, easy to grip handles
Emergency stop button
Heavy gauge steel construction

To place an order or check availability, please call 877-278-6039.

Warning WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Shipping Charges Applicable

Item #	Desc	Pkg	Price	Price
LF2020	Lumex Sit-to-Stand Lift	Each	$3669.45 $2822.69

Lumex Battery-Powered Lift Features

Large, easy to grip handles for easy maneuverability
Intuitive foot pedal leg opening mechanism frees up hands
Adjustable knee pad unit
Maximum weight capacity: 400lbs
Ergonomically designed hand pendant with pendant hook
Warning beep and visual indicator on control box for low battery charge
Accessory storage bag included for slings and charger
Quick release removable foot platform for gait training
24V DC motor allows quiet, smooth operation
Lumex Battery-Powered Sit-to-Stand Lift User Manual

More About STS Lift

Assembly Instructions:

Remove the nuts and bolts from top and bottom of mast
With one hand on the mast and another on the boom, pull the mast to an upright position
Reinstall the bolts in the holes at bottom of mast and hand tighten them
Attach boom to mast and hand tighten bolt and nut
Attach the L-shaped arms to the back of the knee pad
Attach knee pad assembly to the mast
Place the control box in the bracket
Insert the actuator plug into the control box
Insert the pendant plug into the control box
Tighten all nuts

Warning:

Before using Patient Lift, ensure that lift is assembled as described, that all attaching hardware is securely tightened, and that all lift components are secure

Warning WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Specification

Particulars	Dimensions
Floor clearance	4.7"
Spreader bar minimum height	36.4"
Spreader bar maximum height	70.8"
Overall length	40.4"
Minimum base width	25.5"
Maximum base width	37.8"
Maximum weight capacity	400 lb
Product weight	118 lb
