Features
-
- Available in 16", 18" and 20" seat widths, with 17" seat depth and in 22" seat width with 19" seat depth
-

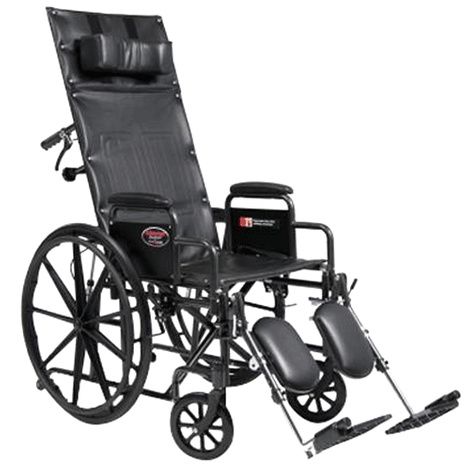

- Graham Field Everest And Jennings Advantage Recliner features manual full reclining back range from 90-170 degrees
-
- Removable full support headrest
-
- Detachable padded desk or full arms
-
- Hammertone finish provides durability and style
-
- Embossed black leatherette type vinyl upholstery for easy cleaning
-
- Comes with spreader metallic back bar which works as anti-fold device
-
- Industry compatible tool-free adjustable elevating front rigging
-
- Standard chart pocket on back
-
- Maximum weight capacity 300 lb - EVENLY DISTRIBUTED for 16,18 and 20" models
-
- Maximum weight capacity 450 lb - EVENLY DISTRIBUTED for 22" models
-
- 16", 18", 20" models meet Medicare code K0001/ E1226 (Recliner Back) + E0966 (Head Rest Extension) + E0971 (Anti-tipping device) + K0195( Elevating Legrests)
-
- 22" models meet Medicare code K0007/E1226 (Recliner Back + E0966 (Head Rest Extension) + E0971 (Anti-tipping device) + K0195 (Elevating Legrests) + E2201
Click here for 450lb user manual
Click here for 300lb user manual
Click here for parts catalog
Click here for specifications manual
More Information
- Important Safety Precautions:
- Caution:
- Indicates a potential hazard situation or unsafe practice that, if not avoided, could result in minor or moderate personal injury.
- Warnings:
- Anti-tippers must be installed in the downward position.
- Indicates a potential hazard situation or unsafe practice that, if not avoided, could result in death or serious personal injury.
- Do not operate this wheelchair on streets, roadways and hilly or rough terrain, sand, wet or icy surfaces, or surfaces with impaired traction. Ensure that pathway is clear of all obstacles.
- Do not turn wheelchair while going downhill, as wheelchair could tip over.
- Do not attempt inclines without anti-tippers installed in the downward position.
- Do not attempt any incline or decline greater than six degrees (10% grade, or one foot of rising or fall per ten feet of ramp length).
- This wheelchair does not offer seating or occupant restraint equivalent to the seat provided in a motor vehicle! To increase your safety while traveling in a motor vehicle, always transfer to the vehicle seat and use the restraint provided by the vehicle manufacturer.
- Do not tie down or attach anything to the wheels. This could cause tipping and possibly result in injury or damage to the wheelchair.
- The footplates; lowest point should clear the ground by at least 2 1/2 inches, to permit proper clearance of potential obstruction.
- Do not stand or step on the footplates while transferring to or from your wheelchair. This could cause the wheelchair to tip or may cause personal injury or damage to your wheelchair.
- Do not place your hands between seat rail and side panel.
- Always engage wheel locks before transferring, using a wheelchair lift or using an elevator.
- Ensure that wheelchair is on a stable, level surface and engage wheel locks before and during transfer.
- Doing a "wheelie" (tilting the wheelchair backward until it reaches its balance point) is dangerous and could result in personal injury to the user.
- Do not lean over the top of the wheelchair back or use it as a walker. This could cause the wheelchair to tip over.
- To reduce the risk of tipping before leaning or reaching forward, sit back in the seat and rotate casters fully toward the front of the wheelchair.
- Unauthorized modification or the use of non-Everest & Jennings replacement parts could change the structure of the wheelchair, void the warranty, and create a hazardous condition resulting in serious personal injury.
- Operate only with anti-tippers in place when leaning or tipping. When in use, anti-tippers must be installed in the downward position. - Do not use your wheelchair on escalators.
- Wheel locks are not brakes. Do not use the wheel locks to slow down your wheelchair, or while the wheelchair is moving. Wheel locks are only intended to keep the wheelchair in place when it is at a complete stop.
Notice: Indicates a potential hazard situation or unsafe practice that, if not avoided, could result in product or property damage.
Specification
| Particulars |
Dimensions |
| Overall Depth |
34" |
| Overall Height |
51" |
| Overall Width |
26 1/2" |
| Folded Width |
11 1/2" |
| Seat Width |
18" |
| Seat Height |
19 1/2" |
| Seat Depth |
17" |
| Back Height |
23" |
| Weight Capacity |
300lb (16x17, 18x17, 20x17) |
| |
450lb (22x19) Evenly Distributed |
Warranty
Five (5) year limited warranty
