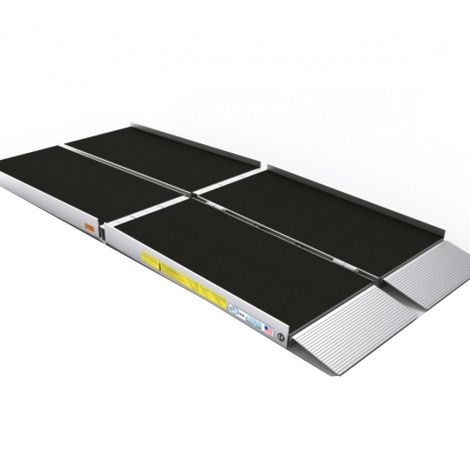

Ez-Access Suitcase Trifold Advantage Series Ramp

More Information

• Installation Instructions:
  1. Read and follow all instructions before use.
  2. Do not use if ramp is damaged or unstable.
  3. For wheelchairs and scooters only (not intended for commercial use).
  4. Ramp is shipped fully assembled. To separate ramp into two halves for easy stowage and transportation, remove bolts and install hinge pins as follows: Position it. Align hinges, then insert hinge pin into each hinge assembly and connect ramp sections together before use. Spring section of pin should be on the underside (non-treaded side) of ramp. Ramp may be separated for use when loading or unloading unoccupied mobility equipment only. When used with occupied mobility equipment, use ramp as one unit (ensure both halves are joined with hinge pins or bolts firmly installed before use).
  5. Place ramp on landing in the folded position, making sure that the top lip transition plate (labeled TOP) is resting securely on the landing.
  6. Position ramp approximately its full length out from vehicle or step. Facing vehicle or step, begin working from the left side. Stand ramp upright on end with the hinged edge facing to the right. Lift up first top half of ramp toward step or vehicle and place ramp so that the top lip transition plate is securely supporting the ramp.
  7. Unfold second top half of ramp so that both halves are fully extended lengthwise with one half lying face down on top of the other.
  Note: Applied slip-resistant tread should not be exposed at this time. Open complete ramp, exposing entire applied slip-resistant tread surface, then center on landing.
  8. For ease in carrying and storage, ramp can be disconnected and carried in two sections. (When hinge pins are not in use, store in one side of hinge or on the underside of ramp by inserting into the gap behind the top I-beam.)
  9. To prevent ramp halves from swinging open, ensure that the Dual Lock tab (interlocking fastener) is pressed together and firmly locked in place. Prior to use, locate both of the 1" x 3/4" Dual Lock tabs (found opposite the applied slip-resistant tread side of the ramp, near the top and bottom edges), and then remove the top piece (its used only as a protective covering).
• Safety and Maintenance:
  - Regularly check ramp for damage, and check and tighten any loose fasteners.
  - Keep ramp surface clear of ice, snow, dirt, leaves, and other debris.
  - For snow/ice, remove accumulation and sweep the surface clean.
  - To remove dirt, leaves, and other debris, sweeping the surface or using a garden hose will usually suffice, but, if needed, use a damp cloth or soft brush with non-alkaloid detergent and water.
  - Rinse well and use extra caution if ramp surface is wet.

Specification

Warranty

3 year limited warranty
