Features

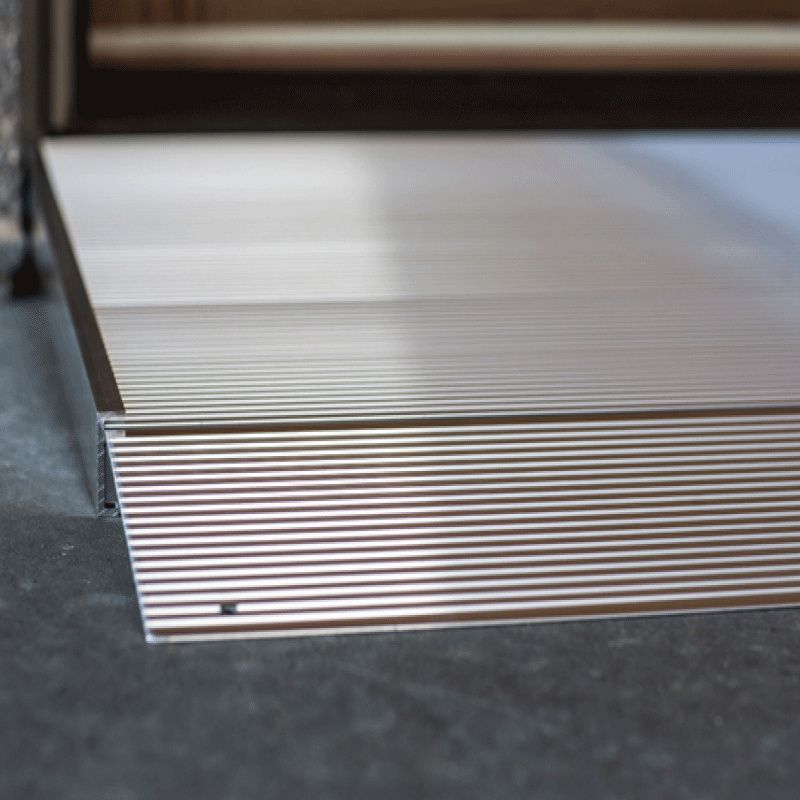

- Extruded Tread Surface:
- It is slip-resistant, meaning users are safe to use it in any weather
- Adjustable Legs with Swivel Feet:
- Allow for two inches of vertical adjustments
- It adjust independently making the Ramp the perfect solution for uneven surfaces
- Free Standing Portable Ramp Design:
- It is ideal for entryways with doors that swing both in and out
- High-Strength Aluminum Materials:
- Made completely out of high-strength aluminum which will not rust or corrode over time
- Height Adjustment:
- 12": 1-3/8" - 2-3/4"
- 24": 1-11/16" - 4-3/8"
- Swivel feet accommodate varying heights, angles and surface types
- Made of high strength aluminium that will not rust or corrode
- Extruded, slip-resistant surface for superior traction
- 36 inches wide
- Weight Capacity is 700 lbs
- Transitions Advantage:
- Sturdy, seam-free surface makes Transitions ramp safe solution for wheelchair, scooter, walker, and cane users
- Attractive designs are available in multiple styles and materials to suit user needs and taste
- Slip-resistant tread and surfaces
- Durably designed for years of continued use
- Quick and easy setup and removal - installs in minutes so theres little-to-no disruption

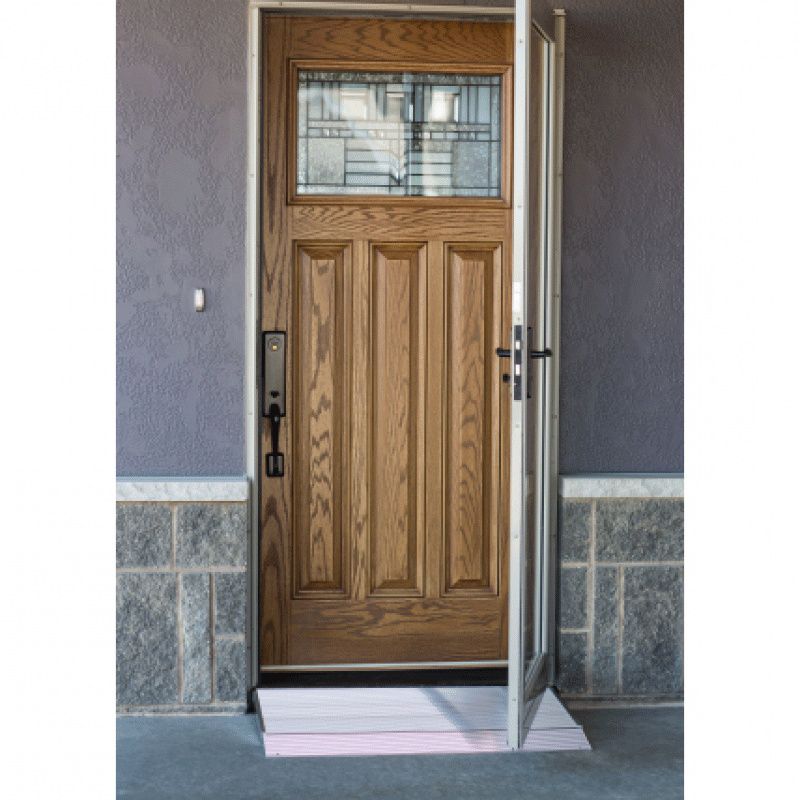

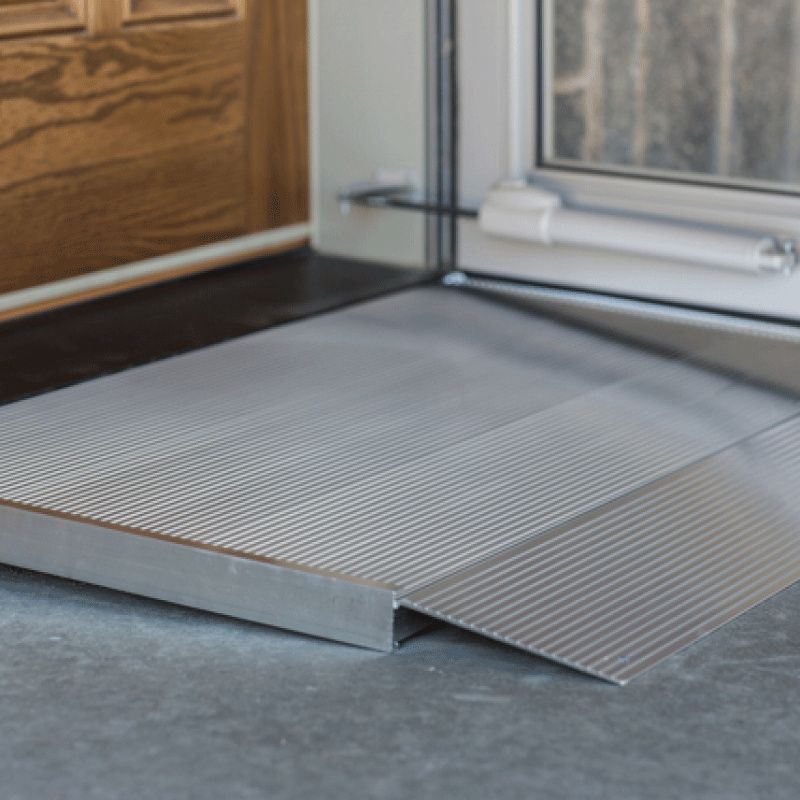

- Ideal for doorways, sliding glass doors, and raised landings
- Portable, convenient, and durable
- Click Here for Instruction Manual
More Information
Getting Started With the Ramp:
- The aluminum, self-supporting ramp can be used with or without the supplied adjustable swivel feet. To protect floors, foam, rubber, or other non-abrasive, protective material may be affixed to the underside of ramp.
- Measure the rise to determine if the adjustable swivel feet are needed.
- Position the ramp and adjustable feet as needed to obtain correct height. Adjust feet as needed to ensure both feet are in contact with the ground.
Fasening Ramp to Landing:

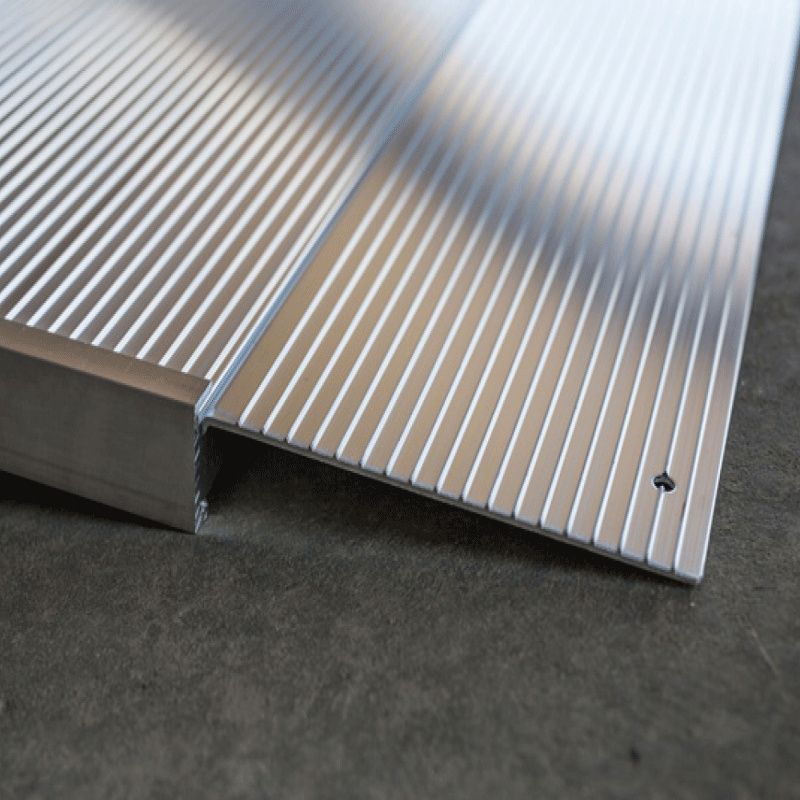

The Transitions Angled Entry Ramp must be fastened to the landing before use. Use the two pre-drilled holes in the bottom of the ramp to fasten to the landing or threshold. Wood screws, sheet metal screws, or concrete bolts may be necessary, depending on the application.
- Attaching to Wood:
Fasten Transitions Angled Entry Ramp by installing one 1/4" x 1" self-drilling stainless steel screw (supplied) through each hole.
- Attaching to Concrete:
- Use the two pre-drilled holes in the bottom of the Transitions Angled Entry Ramp as a template to mark the positions to drill.
- Using a 1/4" masonry bit, drill two holes at the marked locations. Drill to a depth specified by the pin drive anchor manufacturer instructions.
- After drilling, make sure that the holes are free of any residue and/or debris.
- Align the Transitions Angled Entry Ramp over the drilled holes.
- Install 1/4" x 1 1/2" pin drive concrete anchors into the holes per the pin drive anchor manufacturer instructions.
Safety And Maintenance:
- Regularly check the ramp for damage and tighten any loose fasteners
- Keep the ramp surface clear of ice, snow, dirt, leaves, and other debris
- For snow or ice, remove accumulation and sweep the surface clean
- To remove dirt, leaves, and other debris, sweeping the surface or using a garden hose will usually suffice
- If needed, use a damp cloth or soft brush with non-alkaloid detergent and water
- Rinse well and use extra caution if the ramp surface is wet
Important Information:
- The rated load is 700 pounds, 350 pounds per caster or wheel
- Never exceed the rated load
- Read and follow all labels, instructions, safety and maintenance information before use
- Do not use it if the ramp is damaged or unstable
- For wheelchairs and scooters only (not intended for commercial use)
- The ramp may be slippery when wet or icy
- Use only if sufficient maneuvering room is available at both ends of the ramp to assure safe travel when entering and exiting the ramp
- Use the ramp only with a qualified helper and always use your lap belt
EZ-Access Transitions Angled Entry Ramp Instruction Manual
Specification
| Particulars |

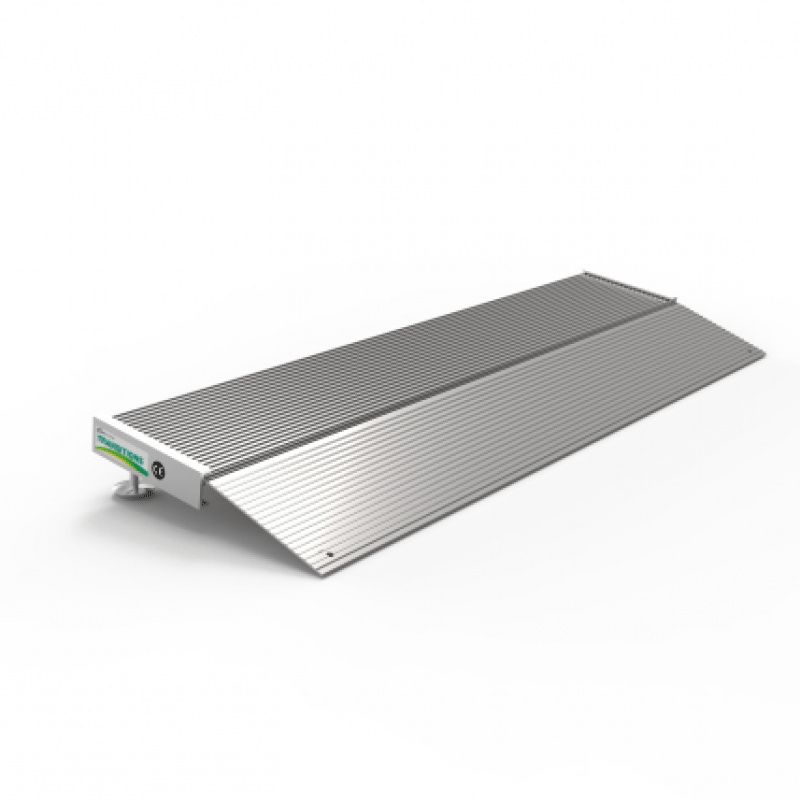

TAER 12 |

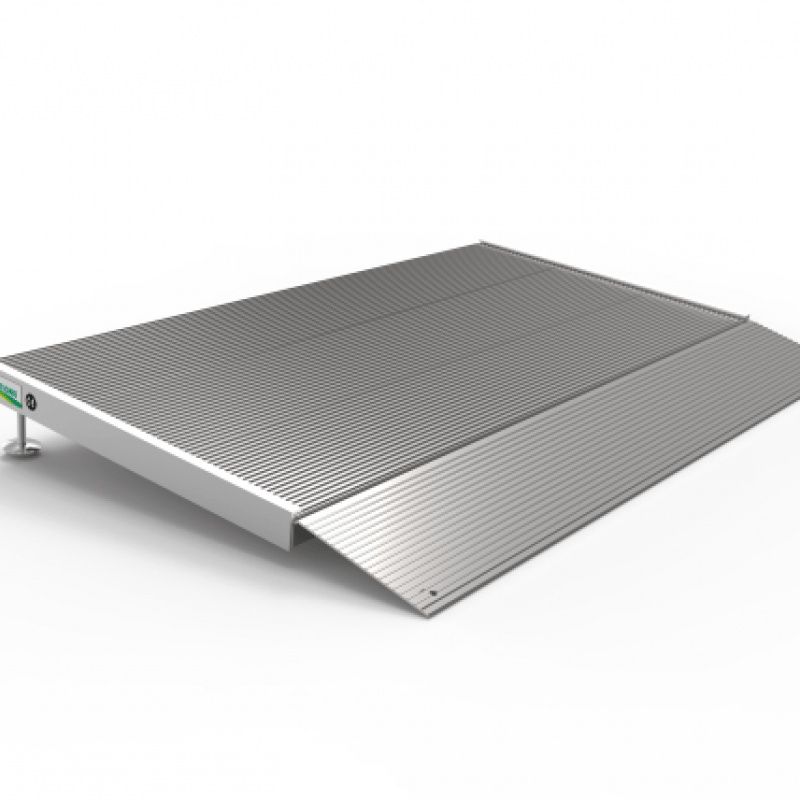

TAER 24 |
| Overall dimensions |
12" x 36" x 1.25 |
24" x 36" x 2" |
| Height (ramp only) |
1-3/8" |
1-11/16" |
| Usable height w/ 1" swivel feet |
1-15/16" to 2-3/4" |
N/A |
| Usable height w/ 1 1/2" swivel feet |
N/A |
2-1/8" to 3-3/8" |
| Usable height w/ 2 1/2" swivel feet |
N/A |
3-3/16" to 4-3/8" |
| Weight Capacity |
700 lbs., 350 lbs. per caster or wheel |
700 lbs., 350 lbs. per caster or wheel |
| Weights and dimensions are approximate and subject to change. |
