Ez-Access Gateway 3G Solid Surface Ramps

How To Determine The Proper Ramp Length ?

• Determine the incline that your chair is designed to climb.
• Measure the rise (distance from the top step, porch, van, etc. to the ground).
• Refer to Incline Chart to find proper ramp length.
• At any incline, use ramp only with a qualified helper

Note: Refer to your mobility equipment manufacturer for the proper degree of incline/decline and chair direction before attempting ramp use. Never exceed your mobility equipment manufacturer recommendations.

Which type of Gateway 3G Solid Surface Ramps to select?

• Ramp Only
  - A great option for users who don’t require handrail assistance when making their way up or down the ramp.
  - The 1-piece design means no assembly or movable parts; just secure the ramp in the desired position, and it’s ready to be used

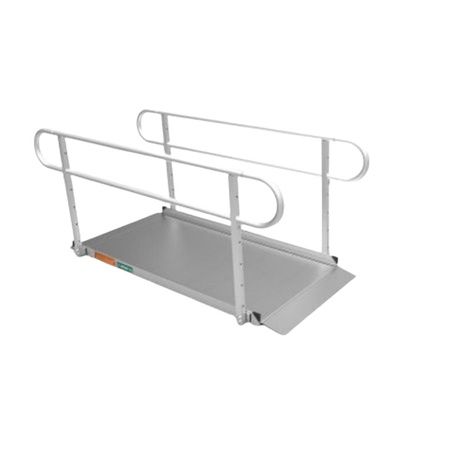

• Ramp with Two-line Handrails and Loops
  - Two-line handrails with loops offer increased safety and user stability.
  - Features smooth, continuous top rails - which are welded for extra strength and durability - and a lower second rail offers an additional gripping surface.
  - Assembly is quick and easy, requiring only minimal tools to attach the handrail posts and loops.

• Ramp with Vertical Pickets and Loops
  - Smooth, continuous top rails with vertical pickets and loops offer an added level of safety, especially for children and pets. Pickets meet the 4-inch sphere rule for spacing.
  - Picketed insert sections are pre-assembled for quick and secure installation.
  - Assembly is quick and easy, requiring only minimal tools to attach the handrail posts and loops.

More On Ez-Access Gateway 3G Solid Surface Ramps

Fastening Ramp To Landing (All Ramps)

1. Place the ramps top lip transition plate (identifiable by the two pre-drilled holes) so it extends onto the landing as far as possible. The ramp’s top lip transition plate must be fully supported by the landing.
2. If Resting on a wood landing
   - Fasten top lip transition plate by installing one 1/4” x 1” long self-drilling, stainless steel wood screw (not supplied) through each hole.
3. If Resting on a concrete landing
   - Use the two pre-drilled holes in the top lip transition plate as a template to mark the positions on the concrete to drill.
   - Using a 1/4” masonry bit, drill two holes at the previously marked locations. Drill to a depth specified by the pin drive anchor manufacturer’s instructions.
   - Align the top lip transition plate over the drilled holes.
   - Install 1/4” x 1-1/2” pin drive concrete anchors (not supplied) into the holes of the upper transition per the pin drive concrete anchor manufacturer’s instructions.
4. Temporary installation
   - Use the two pre-drilled holes in the top lip transition plate as a template to mark the positions and drill two 1/4” holes at least 1-1/2ââ&
