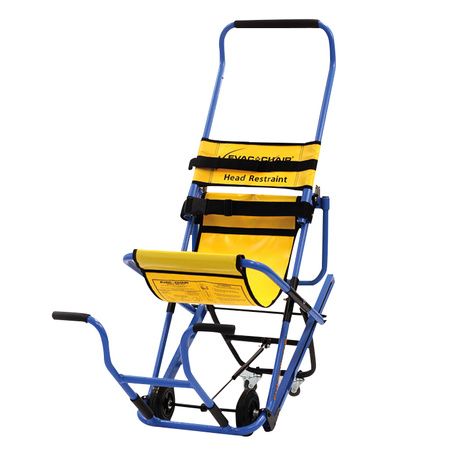

Evac Chair 600H Evacuation Chair

Evac Chair 600H Evacuation Chair

Brand/Manufacturer: EVAC CHAIR
  • FSA Approved

Evac Chair 600H Evacuation Chair is a dual-position emergency evacuation wheelchair that permits the safe egress of mobility impaired persons from a building in the event of an emergency or evacuation. It is designed with two extra handles for a two-person operation in locations with difficult access, including upwards evacuation.

Evac Escape Chair 600H Highlights

  • Provides a quick, easy and safe emergency evacuation
  • Easy to use
  • Adjustable patient head restraint
  • Has Ergonomic adjustable handle
  • Lightweight
  • Easy to open, ready to use in seconds
  • Folds for compact storage

Item # Desc Pkg Reward Price
600H Weight Capacity: 400lbs Each $69.19

Evac Chair 600H Evacuation Chair Includes

  • Photoluminescent Signage
  • Two additional handles
  • Wall Mounted Hooks
  • Dust Cover
  • User Guide
  • Instructional DVD

Evac Chair 600H Evacuation Chair Features

  • Adjustable patient head restraint - Limits movement, securing the passenger in place
  • Friction tracks (Evac+Track technology) -  The self braking reinforced tracks control speed of descent for easy single person operation
  • Ergonomic adjustable handle - For ease of deployment and compact storage
  • Reflective decals - For easy location in situations of poor visibility
  • Quick release safety belts (Head, Chest, Thigh) - For increased passenger safety and security
  • Heavy duty wheels - Ideal for operation over uneven terrain
  • Lockable rear wheels - Can be applied in situations where the chair needs to remain in a stationary position
  • Fold away front and rear grab handles - Single person operation with fold away handles allowing up to 4 people to assist with evacuation
  • Dual position seat - Dual position seat allows the user to decide each time which seating position they desire

Evac Chair 600H Key Benefits

  • FDA Registered
  • Suitable for 2 to 4 operators to carry
  • Lightweight
  • No heavy lifting required
  • Enables small attendants to easily move passengers three times their size
  • Exceeds fire safety requirements and emergency response guidelines established to support the Americans with Disabilities Act Wall mountable

How To Use Evac Chair 600H Evacuation Chair?

Setting Up Evac Chair:

  • While standing behind the Evac Chair, hold it upright and rest one foot on top of the blue base frame crossbar to steady the chair
  • Using both hands, pull the handle upwards until the shoulder clips have clicked into place
  • Head restraint should not slide down the handle
  • While still standing behind the chair, undo the seat belt to release the skis
  • Pull these skis towards you to open the seat and push the seat part way downwards into position
  • Finally, pull up the seat frame against the ski to ensure it is in position

For Traveling Short Distances:

  • You must remain in position behind the Evac Chair using both uprights of the handle to hold it firmly
  • Place one foot on the front wheel axle or on the bottom bar as your occupant transfers into the Evac Chair seated position
  • Depending on the condition of the occupant further assistance may be required with the transfer
  • Seatbelt must now be fastened and the head restraint may be used to assist with airway management if required
  • From the transfer position, remove your foot from the front wheel axle until the Evac Chair move backward and the front wheel comes into contact with the ground
  • Evac Chair will now balance between the bar of the frame and the front wheels
  • From the balance position, tip the chair off further seven centimeters backward that is about three inches and you will be able to move forward in the two-wheel position
  • This is the position to use for traveling short distances such as when turning and crossing still landings during descent

For Use On Level Ground:

  • Evac Chair should be used in the four-wheel position like a wheelchair
  • To achieve the four-wheel position start from the vertical upright position, place one foot on the trolley assembly just over the yellow sticker and pull back sharply to unclip the trolley assembly
  • As you remove your foot, the trolley assembly will automatically open
  • You may then lower the chair gently onto its wheels

For Stairway Descent:

  • Close the trolley assembly in an appropriate area of safety by placing the Evac Chair in a vertically upright position with the bottom bar of the frame on the ground
  • Place your foot on the yellow sticker and push the trolley assembly forward until it clicks back into place
  • Tilt the chair back into the two-wheel position and move forward to approximately 30 centimeters from the top of the stairs
  • Positioned at the inside edge, with one foot in front of the other and slightly apart, tilt the chair a little further back and push confidently over the top of the stairs
  • At all times stay near the inside edge of the stairs and make certain the skis make contact with the top two stair nosings
  • Never let go of the Evac Chair
  • Pause briefly and reposition your hands by sliding them upwards from the vertical position at each side of the handle onto the handles horizontal top crossbar
  • When descending, press downwards in a vertical direction for a smooth safe ride and move forward at the same smooth pace as the back chair
  • There should be no bumping action

Evac Chair 600H Specification

Particulars Dimensions
Height 47" (folded)
Width 23" (folded)
Depth 12" (folded)
Weight 24 lbs
Weight Capacity 400 lbs



Lifetime Warranty
