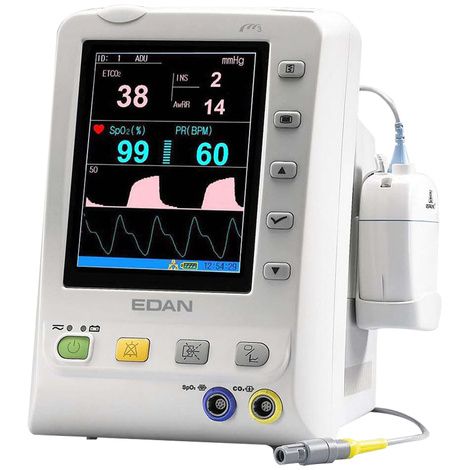

Edan M3B Vital Signs Monitor

Edan M3B Vital Signs Monitor

Brand/Manufacturer: EDAN INSTRUMENTS, INC
Authorized Retailer Badge
  • FSA Approved

Edan M3B Vital Signs Monitor has a lightweight, portable design and user friendly interface for easy operation. This monitor is ideal for adult, pediatric and neonatal patients and displays numeric and waveform information simultaneously. It ensures effective capnography monitoring for intubated and non intubated patients for continuous long-term monitoring. It is tailored for mechanically ventilated and non-intubated patients.

Item # Desc Pkg Price
M3BS SpO2 and Sidestream Co2 Each
M3BM Sp02 and Mainstream Co2 Each


  • Edan M3B Vital Signs Monitor has powerful storage capacity
  • SpO2, pulse rate and respironics sidestream and mainstream CO2 measurement
  • Nellcor oxiMax SpO2 selectable
  • Nurse call and USB data storage and review
  • Built-in lithium-ion battery for 8 hours working
  • Trend table and graph review and record
  • Wired and wireless network capability
  • Standard accessories:
    - Edan SH1 adult reusable SpO2 sensor
    - Respironics LoFlo EtCO2 (side-stream) module
    - Disposable CO2 nasal cannula - adult (respironics 3468ADU-00)
    - Adult and pediatric airway adapter set with dehumidification tubing - adult
    - Disposable sampling line kit with dehumidification tubing (respironics 3475-00
    - Respironics CAPNOSTAT 5 EtCO2 (main-stream) module 1015928
    - Disposable adult airway adapter (6063-00)
    - Disposable neonatal ( infant or pediatric) airway adapter (6312-00)
    - Power cord (USA and EUR standard)
    - Rechargeable lithium-ion battery (14.8v, 4.4ah)
    - Ground cable and user manual
  • Also available (separately):
    - Edan Thermal Printer for M3 Vital Signs Monitor (Code 12.01.19084)


Customer Reviews

Please enter your and your friends email address below.
Fields marked with * are compulsory
Dimensions200.8mm L x 241mm H x 189mm D
Display 5.7" LCD
Color TFT resolution640 x 480
Power Supply100 to 240 VAC, 50HZ / 60HZ
Pmax=70VA FUSE T 1.6AL
BatteryType: Lithium-ion
Voltage:14.8 V DC Capacitance:4,400 mAh
Working Period Color TFT480minutes
Rechargeable Period360minutes
Record Width48mm
Paper Speed25mm per second
