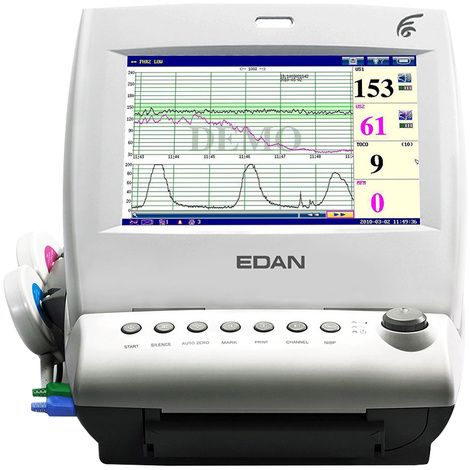

Edan F6 Fetal Monitor

Name: Edan F6 Fetal Monitor
Brand: EDAN INSTRUMENTS, INC
SKU: 24525
Price: 3432.19 USD
Availability: InStock

Brand/Manufacturer: EDAN INSTRUMENTS, INC

FSA Approved

Edan F6 Fetal Monitor is a high end hospital grade monitor designed for multi-bed units with central station yet simple enough for private practice. It offers the most advanced integrated monitoring for the delivery room in big hospital, private obstetrician office and antepartum clinic. it is designed for use in moving situation covers the entire continuum of antepartum and intrapartum applications.

Item# F6

ORDERING DETAILS

Total: $3775.45
Total: $3432.19

Total: $3775.45
Total: $3432.19

Features

Edan F6 Fetal Monitor has quick printing for stored waveform
Basic parameters: FHR, TOCO, Event Mark, AFM
24 hours waveforms playback
10.2 high resolution color folding up LCD screen
Multi-crystal pulse wave doppler waterproof transducer for FHR detection
Standard accessories:
- FHR probe
- TOCO probe (F6 with and without DECG and IUP function)
- Event marker
- 2 belt
- Ultrasound gel
- 3 recording Paper (90mm—152mm—150p, US standard)
- 2 T1.6AL fuse
- Power cord (U.S.A. Standard)
- Quick reference, user manual and insight software user manual
- Insight software(CD)
- RS-232 cable and
- Ethernet cable
DECG and IUP function and accessories includes: (must be assembled in EDAN)
- DECG and IUP function board and interface
- DECG cable
- IUP cable and communication cable
- IUPC 5 pieces, FSE 5 pieces and PAD 5 pieces

More Information

More features:
- Support American and International standard
- Lithium battery for 4 hours continuous working
- Probe rack and wall mounting rack
- Handle for easy carry
- Signals overlap verification

Specification


Particulars	Details
Dimensions	347mm x 330mm x 126mm
Weight	14lb approximate
Display	10.2" color TFT-LCD Resolution: 800 x 480
Printing	Recorder: 1cm,2cm,3cm per minute real printing speed Fast print speed (stored traces) up to 25mm per second Recording Paper: 150 / 152mm, Z-Fold, thermosensitive, American / International Standard
Ultrasound	Technique: Ultrasound pluse doppler with correlation Pulse repetition rate: 2 KHz Ultrasound frequency: 1.0MHz+10% FHR range: 50bpm to 240bpm Resolution: 1bpm Accuracy: ±2bpm
DECG	Technique: Peak - Peak detection technique FHR range: 30bpm to 240bpm Resolution: 1bpm Accuracy: ±1bpm Input Impedance: >10M (Differential) Input Impedance: >20M (Common Mode)
TOCO	TOCO range: 0 to 100 relative (%), Resolution: 1% Zero mode: Auto or Manual , Non-linear error: =±10%
IUP	Pressure range: 0 to 100 mmHg Resolution: 1% Zero mode: Auto or Manual Non-linear error: ±3mmHg
Auto Fetal Movement (AFM)	Technique: Pulsed doppler ultrasound range: 0 to 00 (%) Resolution: 1%
Marking	Manual fetal movement mark
Battery	14.8 V rechargeable Lithium-ion battery Continuous working time: 2 to 4 hours
Communication port	DB9 network interface, RJ45 interface
