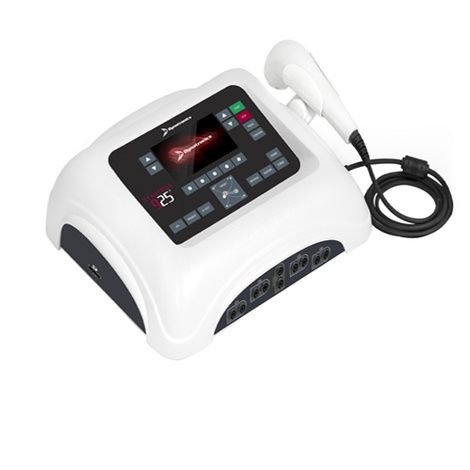

Dynatronics 25 Series Combo Stim Ultrasound

Dynatronics 25 Series Combo Stim Ultrasound

Brand/Manufacturer: DYNATRONICS
Save
Authorized Retailer Badge
  • Prescription required
  • FSA Approved
  • Free Shipping no minimum

Dynatronics 25 Series Combo Stim Ultrasound offers one, two, and three MHz frequencies for the greatest flexibility in depth of treatment. The dynatronics all channel allow fully-independent treatment setups, as well as combo plus technology, offers interferential, premodulated, biphasic, high voltage pulsed stimulation, and russian stimulation using any available electrotherapy channel, in combination with an ultrasound.

Item # Desc Pkg Reward Price
D825T Three Channel Each $93.17
$3416.19
$3105.59
D925T Five Channel Each $106.50
$3904.99
$3549.99

Stim Ultrasound Features

  • Most treatments can be set up in as few as three key presses
  • Treatment parameters are highly visible, easy to read, and changed at the touch of a fingertip
  • Deliver up to five channels of stimulation and ultrasound all at the same time
  • Allows focused treatment by simply gliding finger across the target touchpad
  • It is enhanced by the addition of one of the applicator soundheads, available in 2 cm (WSH02), 5 cm (WSH05), and 10 cm (WSH10) sizes.
  • Available on all 25 series electrotherapy devices
  • 1 MHz for deep treatments
  • 2 MHz for moderate depth
  • 3 MHz for superficial depth

How to set-up the device?

  1. Insert the power cord into the back of the 25 Series’ Console.
  2. Plug the power cord into a wall outlet.
  3. Ultrasound - Plug soundhead into the console (if applicable).
  4. Power - Turn on the power switch located on the back of the console.
  5. Patient Leads - Attach patient lead(s) to the console.
  6. Patient - For electrode treatments, attach electrodes to appropriate sites.
  7. Activate Modality - Select the desired modality by pressing the keys located on the console’s faceplate.
  8. Settings - Select frequency, intensity, time, or any other applicable options for the modality selected by using the toggle keys that surround the display window.
  9. Stop - When the treatment time has elapsed, the current to the patient stops and a tone sounds signaling the end of a treatment. Treatments in progress may be stopped at any time using one of the following methods.
  10. - Stop One Treatment Only - Press and hold the function key and press stop. This stops only the treatment in focus (illuminated green).
    - Stop All - Press the stop key. All treatments at all channels will stop.

Specification

ParticularsValues
Power Requirements100 - 240 V~, 50/60 Hz
Power Consumption100 Watts
Fuse250V, 1.6A slow blow
Dimensions18.5" x 4" x 12"
