Drive Universal Platform Walker Or Crutch Attachment

Drive Universal Platform Walker Or Crutch Attachment

Brand/Manufacturer: DRIVE MEDICAL
Authorized Retailer Badge

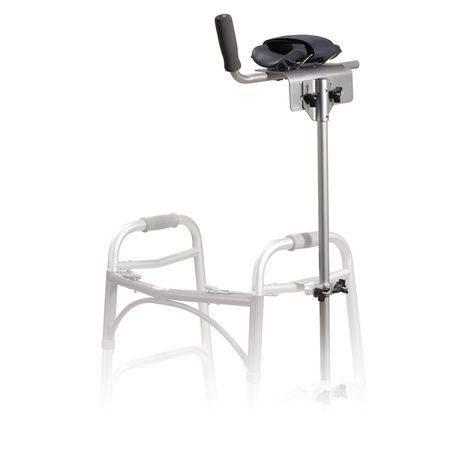

Drive Universal Platform Walker OR Crutch Attachment is designed for those who are unable to grip the walker. It cradles forearm with soft vinyl padding for comfortable weight bearing. Its large top bracket allows the platform attachment to be placed over the hand grip of the walker. It is features strap which securely holds arm in place. For use with Adult and Junior Walkers and Aluminum Crutches.

Item # Desc Pkg Price
10105-2 Standard 2/Pack
10105HD-2 Bariatric 2/Pack


More Information

  • Instructions:
    - Determine which side of the platform attachment will be used.
    - Attach armrest and handle to vertical platform post using the supplied bolts and adjustment.
    - Place both platform clamps on the vertical platform post with the longer clamp on first (top).
    - Loosely attach the bottom (smaller) clamp to the lower horizontal walker crossbar.
    - Loosely attach the top (large) platform clamp to either the upper horizontal walker crossbar or over the top bar handle.
    - Adjust platform post to desired height. Tighten both clamps carefully adjusting both sides of clamps equally.
    - Adjust arm support and handle to increase patient comfort and support. Tighten all adjustment knobs to ensure patient safety.
    - Larger upper bracket fits over the handle of the walker.
    - Smaller bottom bracket is placed over the bottom cross brace of the walker.
    - Tighten both brackets securely when desired height is achieved


Particulars 10105-2 10105HD-2
Overall Width 5.75" 6.5"
Overall Depth 18" 18.5"
Height (Highest Setting) 53" 55"
Height (Lowest Setting) 37" 40.5"
Product Weight 2 lbs 4 lbs
Weight Capacity 300lb 500lb


With Lifetime Limited Warranty
