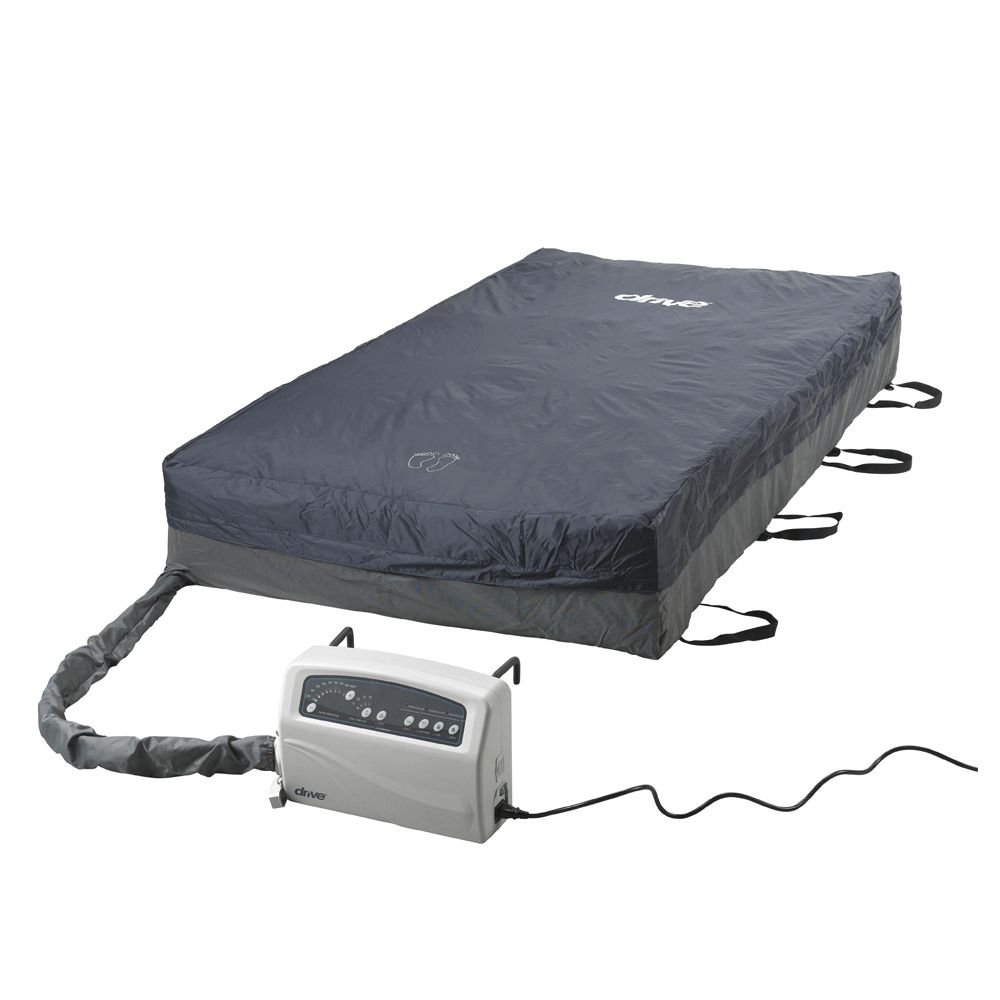

Drive Med-Aire Plus Bariatric Alternating Pressure Pump and Mattress Replacement System

Drive Med-Aire Plus Bariatric Alternating Pressure Pump and Mattress Replacement System

Brand/Manufacturer: DRIVE MEDICAL
Save
Authorized Retailer Badge
  • HyGiene Products
  • Non Returnable

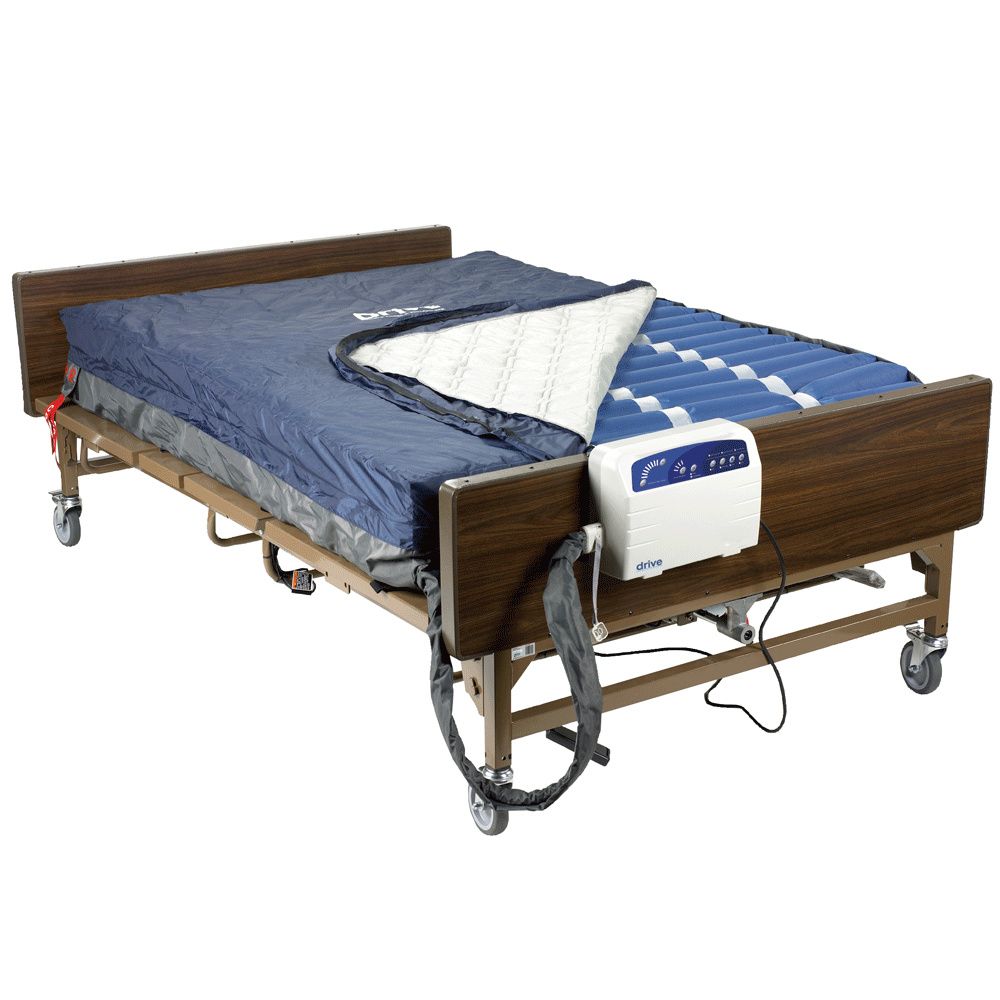

Drive Med-Aire Plus Bariatric Alternating Pressure Pump and Mattress Replacement System is designed to be used in the prevention, treatment and management of Pressure Ulcers. Mattress operates in an alternating pressure mode and is ideal for use in nursing homes, hospitals and home use. Cell-on-Cell design prevents the patient from bottoming out in the event of power failure.

Item # Desc Pkg Price
14054 80"L x 54"W x 10"H Each
$5863.25
$4510.19

Features

  • Drive Med-Aire Plus Bariatric Alternating Pressure Pump and Mattress Replacement System has LED and Audible low pressure alarm activate when pressure falls below 10mmHg

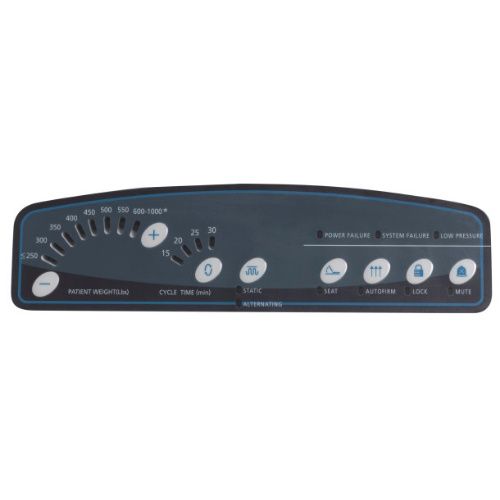

  • Pump features Alarm mute, Low pressure alarm, System (alternating) passive alarm, Power failure alarm, Low pressure alarm delay and Memory function
  • Zippered Nylon/PU cover material is quilted, water resistant, vapor permeable and machine washable
  • 10" cells are constructed with 60% Nylon and 40% PU that is soft, lightweight and will not stretch
  • Whisper quiet pump produces 12-LPM (Litres per Minute) in air flow
  • CPR valves provide fast (20 second) deflation
  • Mattress has 20 air bladders
  • Quick fill adapter standard

More Information

  • EZ Lock/Quick-release tubing connector:
    - Comes standard with the 14025, 14028N, 14048, 14029DP, 14030, 14054, 14027, 14029 and 14060
    - Prevents tubing from coming out of pad
    - Pressure tabs allow for easy disconnect
  • Handling and storage:
    - Lay the mattress out flat and upside down
    - Roll from the foot end towards the head end; the foot-end strap can then be stretched around the rolled mattress to prevent unrolling
    - Do not fold, crease or stack the mattress
  • Important safeguards:
    When using electrical products, especially when children are present, basic safety precautions should always be followed, including the following:
    - Always unplug this product immediately after use
    - Do not use while bathing
    - Do not place or store product where it can fall or be pulled into a tub or sink
    - Do not place in or drop into water or other liquids
    - Do not reach for a product that has fallen into water and unplug immediately
  • Warning:
    To reduce the risk of burns, electrocution, fire, or injury to persons:
    - A product should never be left unattended when plugged in
    - Close supervision is necessary when this product is used by, on, or near children or invalids
    - Use this product only for its intended use as described in this manual
    - Do not use attachments not recommended by the manufacturer
    - Never operate this product if it has a damaged cord or plug, if it is not working properly, if it has been dropped or damaged, or dropped into water
    - Return the product to a service center for examination and repair
    - Keep the cord away from heated surfaces
    - Never block the air openings of the product or place it on a soft surface, such as a bed or couch, where the air openings may be blocked
    - Keep the air openings free of lint, hair and the like
    - Never drop or insert any object into any opening or hose
    - Do not use outdoors or operate where aerosol (spray) products are being used or where oxygen is being administered
    - Connect this product to a properly grounded outlet only
  • Grounding:
    -
    Where any connection is made, make certain that this product shall be connected to a protective earth conductor via the three-wire power cord; the three-blade plug shall be inserted only into a socket outlet that provides a protective earth contact.


Warning WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Specification

Particulars

Pump

Power

120 VAC

Input Frequency

60 Hz

Pressure Range

20mmHg to 60mmHg (inner mattress pressure)

Auto Firm 60mmHg, auto return in 30 minutes
Se at Function Pressure preset + 10mmHg
Function Lock Auto lock in 30 minutes after On

Air Flow

8LPM (Litres Per Minute)

Functions

Static and dynamic features

Power Cord Length

15ft

Pump Dimensions

14.2"W x 9.8"H x 4.5"L

Maximum Current

0.5amps

Particulars

Mattress

Base Material

Zippered Vinyl

Dimensions

54"W x 80"L x 10"H

Maximum Support Capacity

1000lb

Warranty

18 month limited warranty
