Drive Med-Aire Plus Bariatric Alternating Pressure and Low Air Loss Mattress Replacement System

Drive Med-Aire Plus Bariatric Alternating Pressure and Low Air Loss Mattress Replacement System

Brand/Manufacturer: DRIVE MEDICAL
Authorized Retailer Badge
  • HyGiene Products
  • Non Returnable

This product is on backorder and will be available to purchase once it is back in stock.

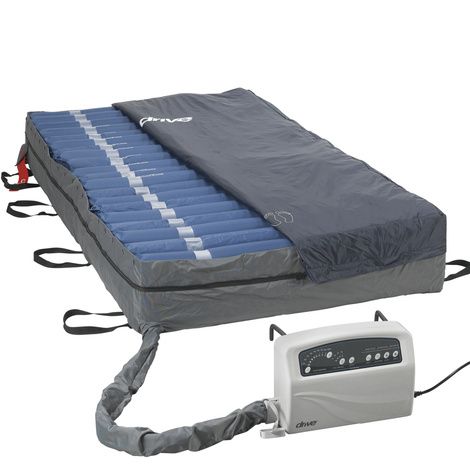

Drive Med-Aire Plus Bariatric Alternating Pressure and Low Air Loss Mattress Replacement System is designed to provide alternating pressure to optimize pressure redistribution for patients with up to Stage IV pressure ulcers. The Cell-on-Cell design of 10-inch deep air cells prevents bottoming out and also provides up to 24 hours of power outage protection. The mattress is ideal for use in nursing homes, hospitals and home use.

Item # Desc Pkg Price
14048 48"W x 80"L x 10"H Each
14030 42"W x 80"L x 10"H Each
14054 54"W x 80"L x 10"H Each
14060 60"W x 80"L x 10"H Each

Drive Med-Aire Plus Mattress Replacement System Features

  • Active combination bariatric therapy system provides both alternating pressure and low air loss to optimize pressure redistribution, shear/friction reduction, and microclimate control
  • Designed to prevent, treat and heal all stages of pressure ulcers in the home or long term care setting
  • Digital control unit offers 4 cycle times and adjustable comfort weight settings for optimal immersion and patient satisfaction
  • 3 diagnostic audio and visual alarms alert for issues with air pressure, the system, or power
  • System includes 20 individual air cells to maximize immersion and envelopment with pillow feature for head stability & comfort
  • Advanced Clinical and Care Giver Features: Auto-Firm, Seat Inflate, auto-recovery, microprocessing feedback, lock-out and more!
  • Cell-on-cell designed air cells prevent "bottoming out" and provide up to 24 hours of power outage protection
  • 10" deep air cells are easily removed with quick disconnects for convenient servicing
  • Removable quilted Nylon cover is fluid resistant, low shear and vapor permeable helping protect the skin from friction and moisture
  • CPR valve allows for rapid deflation
  • Tubing quickly and easily disconnects with EZ Lock/Quick Release design
  • Drive Med-Aire Plus Bariatric Alternating Pressure and Low Air Loss Mattress Replacement System User Manual

More Information

  • EZ Lock/Quick Release Tubing Connector:
    - Prevents tubing from coming out of pad
    - Pressure tabs allow for easy disconnect
  • Handling and storage:
    - Lay the mattress out flat and upside down
    - Roll from the foot end towards the head end, the foot-end strap can then be stretched around the rolled mattress to prevent unrolling
    - Do not fold, crease or stack the mattress
    - Follow the national requirement to dispose of the mattress or pump
  • Maintenance:
    - Check the power cord and plug to see if there are abrasions or excessive wear
    - Check the mattress cover for signs of wear or damage
    - Ensure the mattress cover and tubes are connected together correctly
    - Plug in the pump and check the airflow from the hose connection port
    - The airflow should alternate between ports every half-cycle time
    - Check the air hoses to see if there are kinks or breaks
    - Make sure the mattress tube is well connected
    - Check the pump and make sure both power and power indicator are off when the switch is turned off
  • Low pressure examination:
    - Examine if there is air leakage between the pump and the mattress connections or from the air mattress tubes
    - Check connectors between the air mattress and pump
    - If there is any disconnection, please reconnect it
    - Check the CPR valves and ensure their outlets are sealed
    - Check the air-connecting tubes
    - Ensure each single cell is not broken
    - Turn the pressure-adjust knob to Firm
    - Keep the tubes fully inflated and inspect for air leakage
    - Check if there is any air leakage from cells
    - Ensure no leakage occurs

Warning WARNING: Cancer and Reproductive Harm -




Base Material Zippered vinyl
Pump Airflow 12 LPM
Pump Cycle Time 10, 15, 20, 25 Minutes
Pump Type Compressor
Pump Alarms Visual / Audible
Mattress Dimensions 80" x (42", 48", 54", 60") x 10"
Mattress Cover Material Fluid-Resistant, 4-way Stretch
Weight Capacity 600lbs to 1000lbs
Warranty 18 Month Limited


18 Month limited warranty
