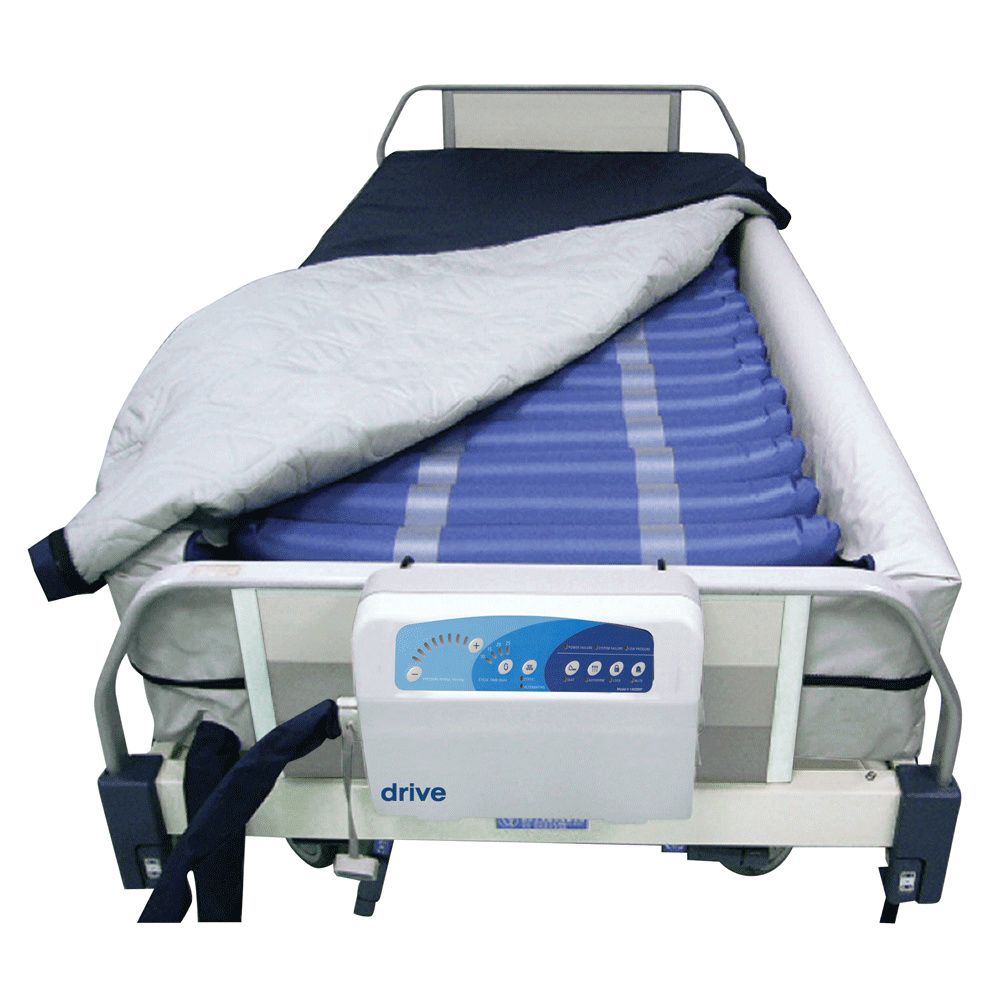

Drive Med-Aire Plus Alternating Pressure and Low Air Loss Mattress System with Defined Perimeter

Drive Med-Aire Plus Alternating Pressure and Low Air Loss Mattress System with Defined Perimeter

Brand/Manufacturer: DRIVE MEDICAL
Authorized Retailer Badge
  • HyGiene Products
  • Non Returnable

Drive Med-Aire Plus Alternating Pressure and Low Air Loss Mattress System with Defined Perimeter is designed to be used in the prevention, treatment and management of pressure ulcers. It keeps the patient cool and helps in recovering fast. 10 inch deep static perimeter tubing surrounds the length of the mattress preventing the patient from becoming trapped between the mattress and side rails.

Item # Desc Pkg Price
14029DP 36"W x 80"L x 10"H Each


  • Drive Med-Aire Plus Alternating Pressure Mattress Replacement System with Low Air Loss includes:
    - Mattress
    - Pump Control unit
    - Mattress Cover
  • This combination therapy system provides both alternating pressure and low air loss to optimize pressure redistribution and manage skin maceration
  • Cell-on-cell design of 8" deep air cells prevents bottoming out and also provides up to 24 hours of power outage protection
  • Advanced Clinical and Care Giver Features: Auto-Firm, Seat Inflate, auto-recovery, microprocessing feedback, lock-out and more

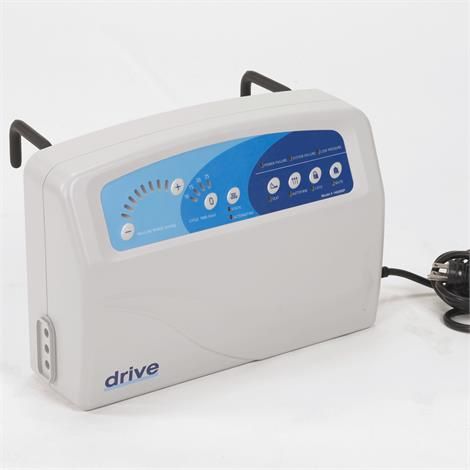

  • Digital pump allows for customization to individual patients comfort and safety needs, and will auto return to alternating pressure mode if system is left on static mode for more than 2 hours
  • 4-way stretch cover is low shear, fluid-resistant, vapor permeable, quilted and zippered
  • Each one of the 20, 8" deep air bladders are easily removed and replaced
  • Pillow function maintains the 3 air cells at the head of the bed in static mode for patient comfort
  • 3 diagnostic alarms tell you whether a problem is with the mattress or the pump for more efficient servicing
  • CPR valve allows for rapid deflation
  • EZ Lock/Quick Release Tubing connector

More Information

  • Operating functions:
    - Place the pump on a flat surface or suspend pump on end of bed with attached hook
    - Place the mattress on top of bed mattress. Note foot end
    - Connect air hoses to pump and mattress
    - Check and ensure the air hoses are not kinked or tucked under mattress
    - Turn pressure to firm. Plug the power cord into outlet. Switch on the pump. The green switch will light when unit is operating
    - Adjust pressure for patient comfort
  • Caution:
    - Risk electric shock. DO NOT remove cover (or back). Refer to your qualified service personal for assistance

Warning WARNING: Cancer and Reproductive Harm -





Pump Power

110 VAC | 60 Hz

Pump Airflow


Pump Cycle Time

10, 15, 20, 25 Minutes

Pump Type


Pump Alarms

Visual / Audible


Mattress Cover Material

Fluid-Resistant Stretch

Weight Capacity 450lb


18 Mont6hs limited warranty
