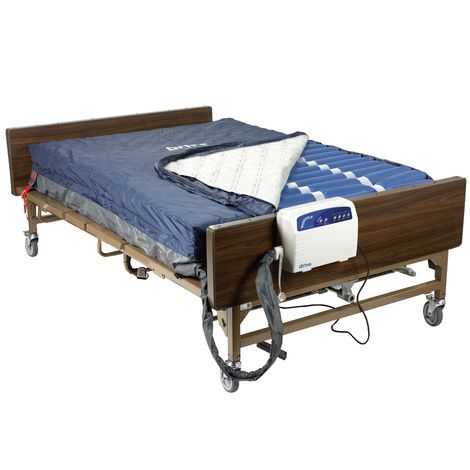

Drive Med Aire Bariatric Alternating Pressure and Low Air Loss Mattress Replacement System

Drive Med Aire Bariatric Alternating Pressure and Low Air Loss Mattress Replacement System

Brand/Manufacturer: DRIVE MEDICAL
Save
Authorized Retailer Badge
  • HyGiene Products
  • Non Returnable

Drive Med Aire Bariatric Alternating Pressure and Low Air Loss Mattress Replacement System is designed to be used in the prevention, treatment and management of pressure ulcers. The mattress operates in an alternating pressure mode. It is ideal for use in nursing homes, hospitals and home use. Digital pump allows for customization to individual patients comfort and safety needs, and will auto-return to alternating pressure mode if system is left on static mode for more than 2 hours.

Item # Desc Pkg Price
14060 60"W x 80"L X 10"H Each
$6174.95
$4749.99

Features

  • Drive Med Aire Bariatric Alternating Pressure and Low Air Loss Mattress Replacement System comes with EZ Lock/Quick Release Tubing Connector
  • Cell-on-cell design of 10" deep air cells prevents bottoming out and also provides up to 24 hours of power outage protection
  • Whisper quiet pump produces 12-LPM (Litres per Minute) in air flow
  • Each one of the 20, 10" deep air bladders are easily removed and replaced
  • Stretch cover is low shear, fluid-resistant, vapor permeable, quilted and zippered
  • 3 diagnostic alarms tell you whether a problem is with the mattress or the pump for more efficient servicing
  • Pillow function maintains the 3 air cells at the head of the bed in static mode for patient comfort
  • CPR (Cardiopulmonary Resuscitation) valve allows for rapid deflation

More Information

  • Handling and storage:
    - Lay the mattress out flat and upside down
    - Roll from the foot end towards the head end, the foot-end strap can then be stretched around the rolled mattress to prevent unrolling
    - Do not fold, crease or stack the mattress
  • Maintenance:
    - Check the power cord and plug to see if there are abrasions or excessive wear
    - Check the mattress cover for signs of wear or damage
    - Ensure the mattress cover and tubes are connected together correctly
    - Plug in the pump and check the airflow from the hose connection port
    - The airflow should alternate between ports every half-cycle time
    - Check the air hoses to see if there are kinks or breaks
    - Make sure the mattress tube is well connected
    - Check the pump and make sure both power and power indicator are off when the switch is turned off
  • Low pressure examination:
    - Examine if there is air leakage between the pump and the mattress connections or from the air mattress tubes
    - Check connectors between the air mattress and pump
    - If there is any disconnection, please reconnect it
    - Check the CPR valves and ensure their outlets are sealed
    - Check the air-connecting tubes
    - Turn the pressure-adjust knob to Firm
    - Keep the tubes fully inflated and inspect for air leakage
    - Check if there is any air leakage from cells
    - Ensure no leakage occurs


Warning WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Specification

Particulars

Specifications

Control Unit Airflow

12 LPM (Litres per Minute)

Control Unit Cycle Time

10, 15, 20, 25 minutes

Control Unit Type

Compressor

Control Unit Alarms

Visual/Audible

Mattress Cover Material

Fluid Resistant, 4-way Stretch

Weight Capacity

600lb to 1000lb

Warranty

18 Month limited warranty
